Keyless Entry Key-Pad: Service and Repair

KEYLESS ENTRY KEYPAD

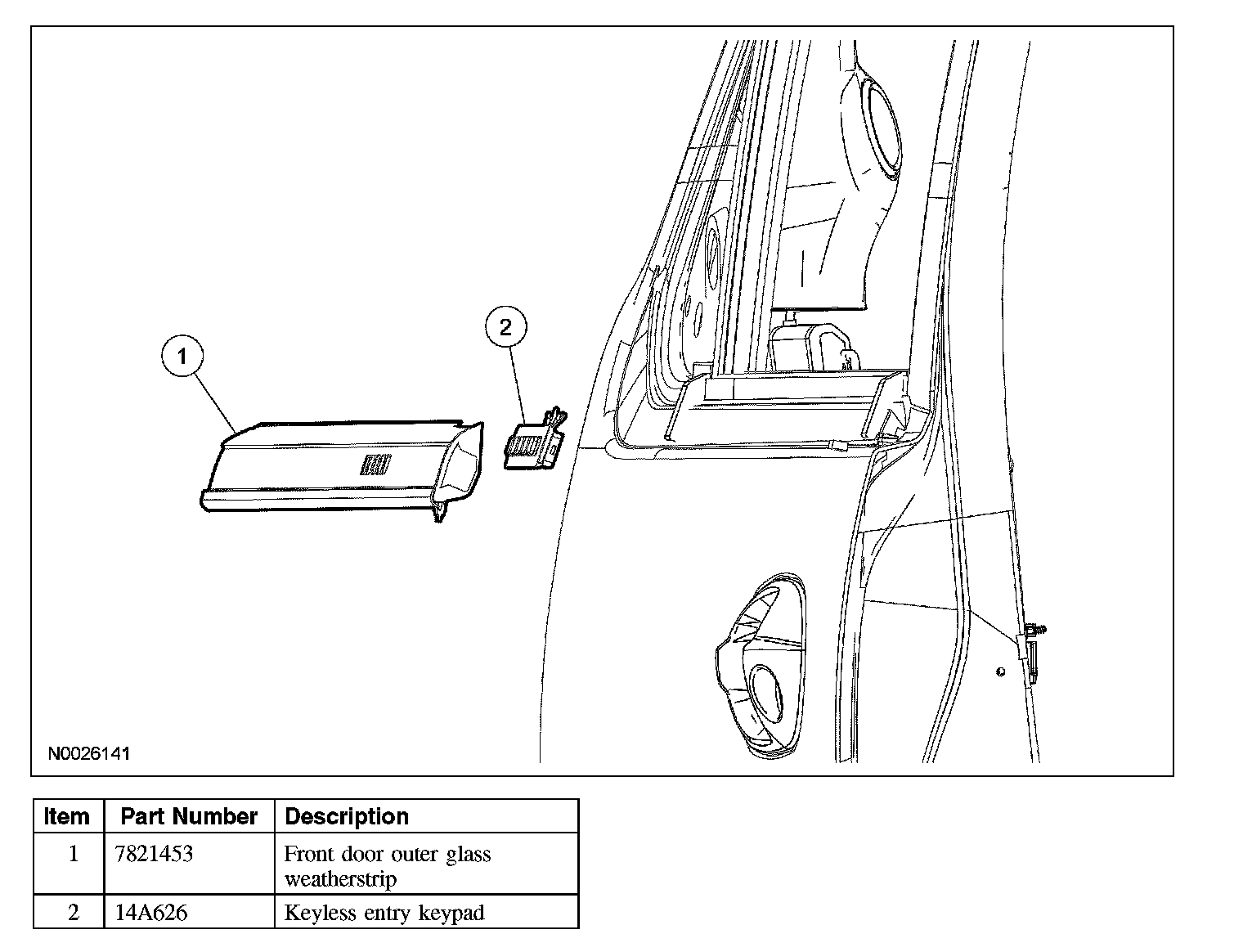

Removal and Installation
1. Remove the exterior mirror.
2. Remove the front door outer glass weatherstrip.
- Disconnect the electrical connector.

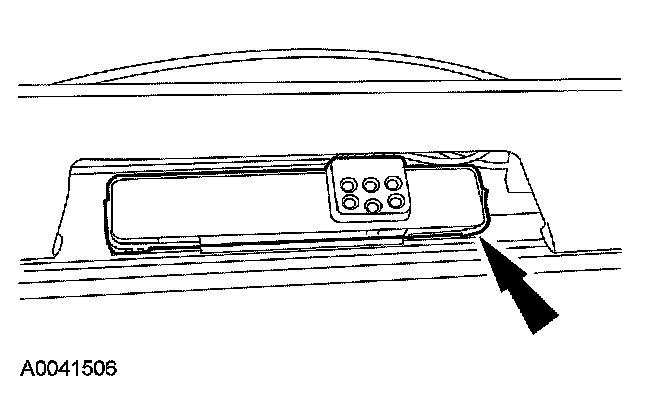

3. Release the tabs and remove the keyless entry keypad.
- Disconnect the keypad harness retaining clips from the weatherstrip.

4. To install, reverse the removal procedure.
