Drive/Propeller Shaft

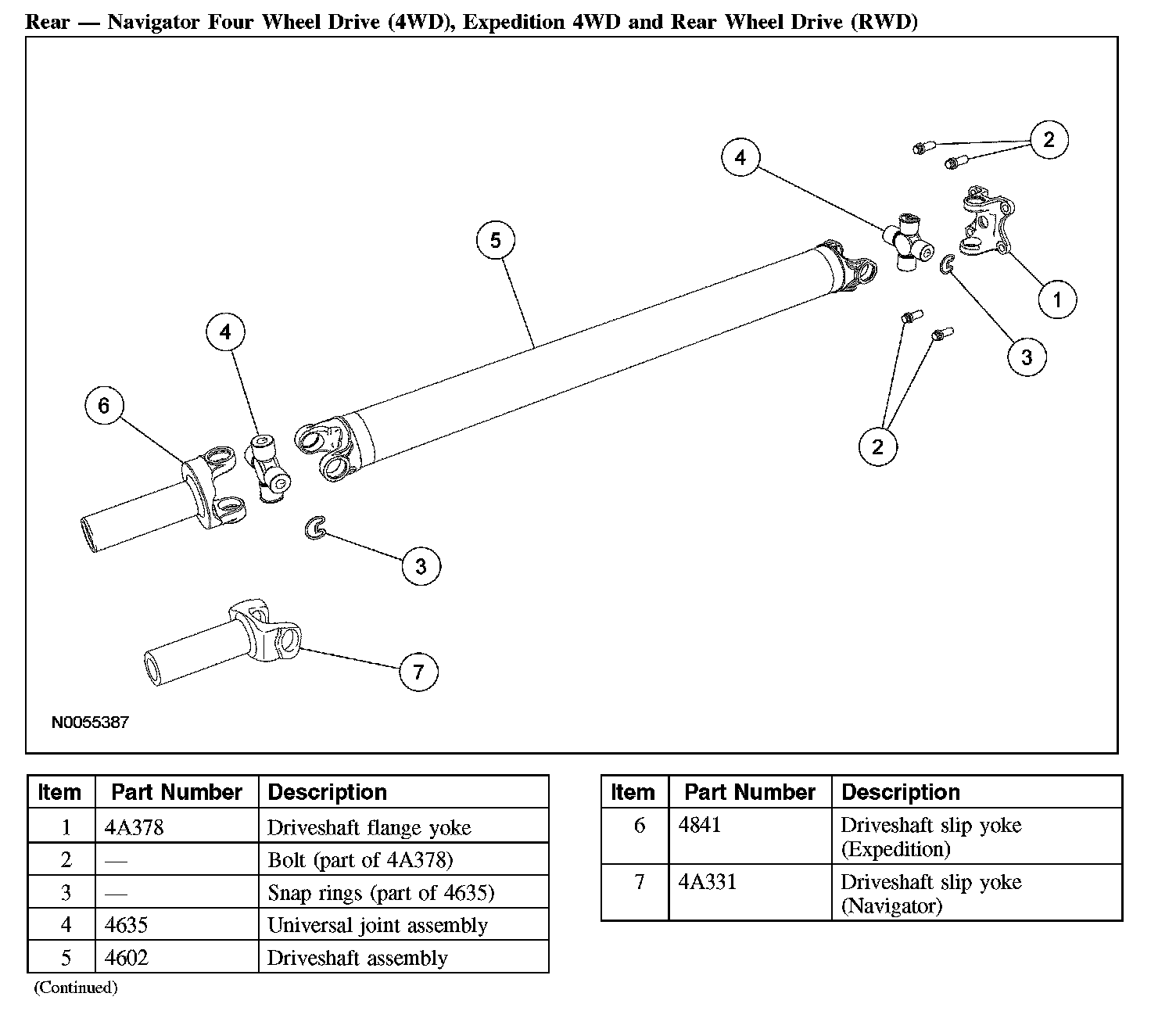

Rear - Navigator Four Wheel Drive (4WD), Expedition 4WD and Rear Wheel Drive (RWD):

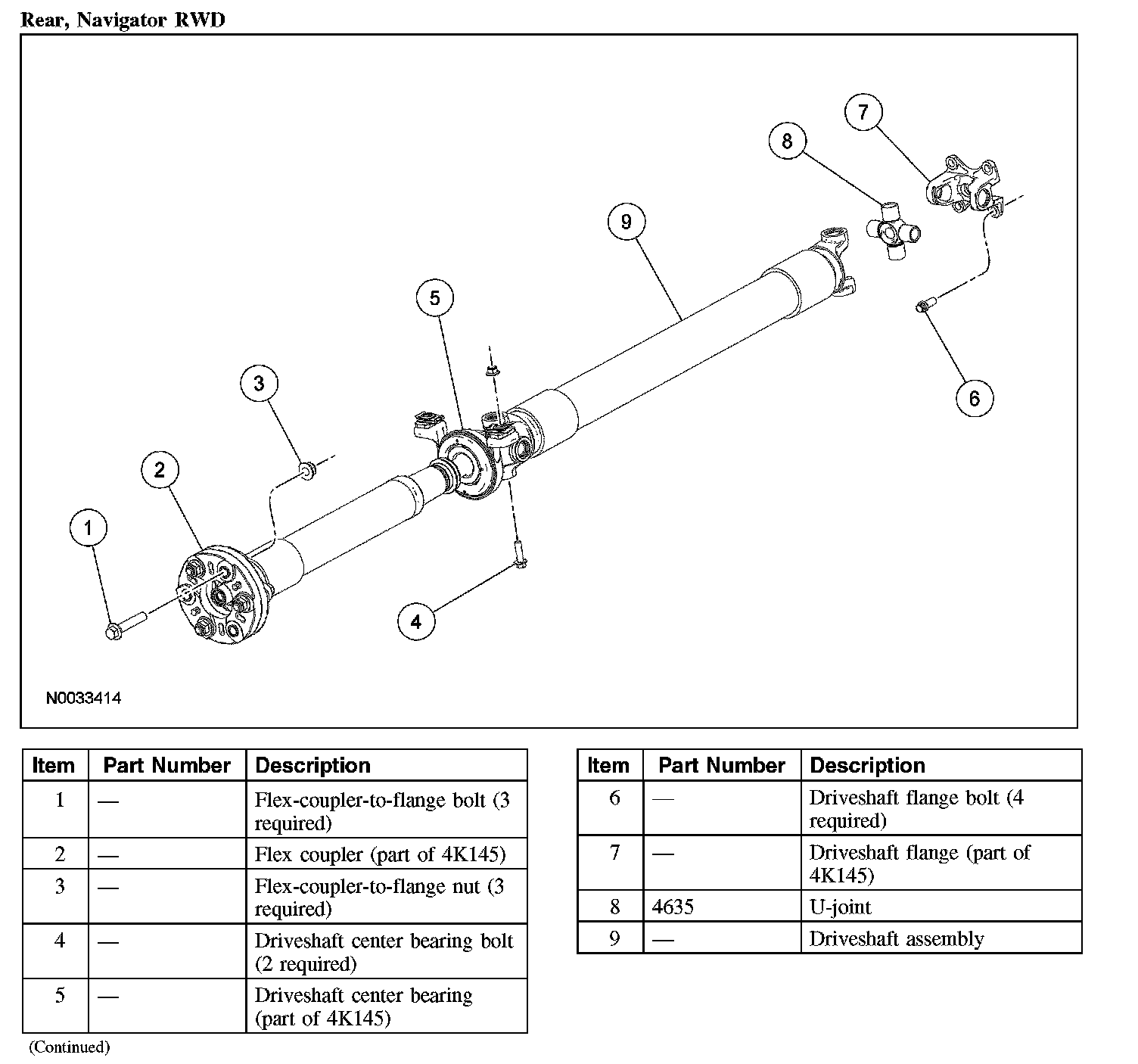

Rear, Navigator RWD:
