Wiper and Washer System - Exploded View

WIPER AND WASHER SYSTEM - EXPLODED VIEW


Wiper and Washer System - Front:

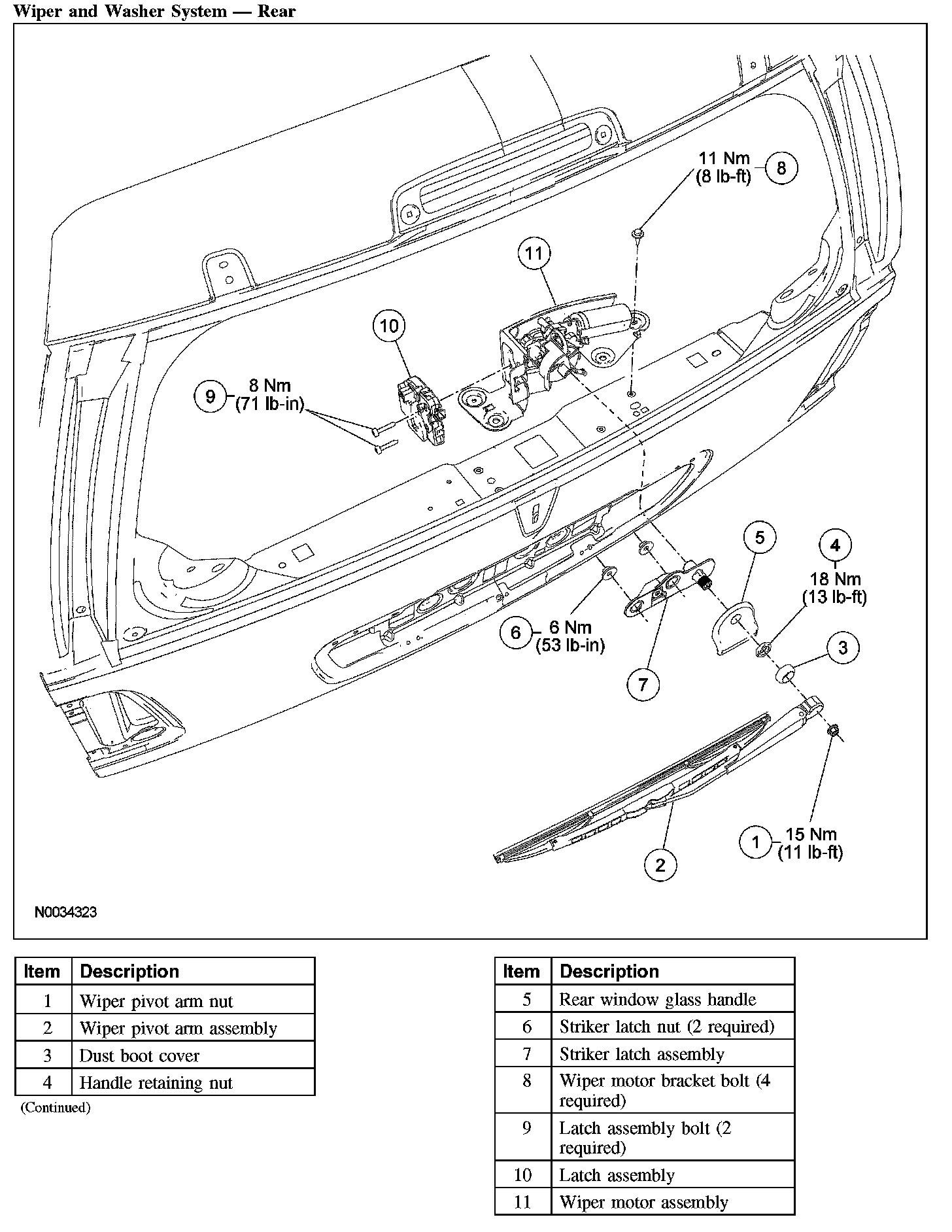

Wiper and Washer System - Rear:






Removal and Installation
1. For additional information, refer to the procedures.
