Air Flow Meter/Sensor: Service and Repair

MASS AIR FLOW (MAF) SENSOR

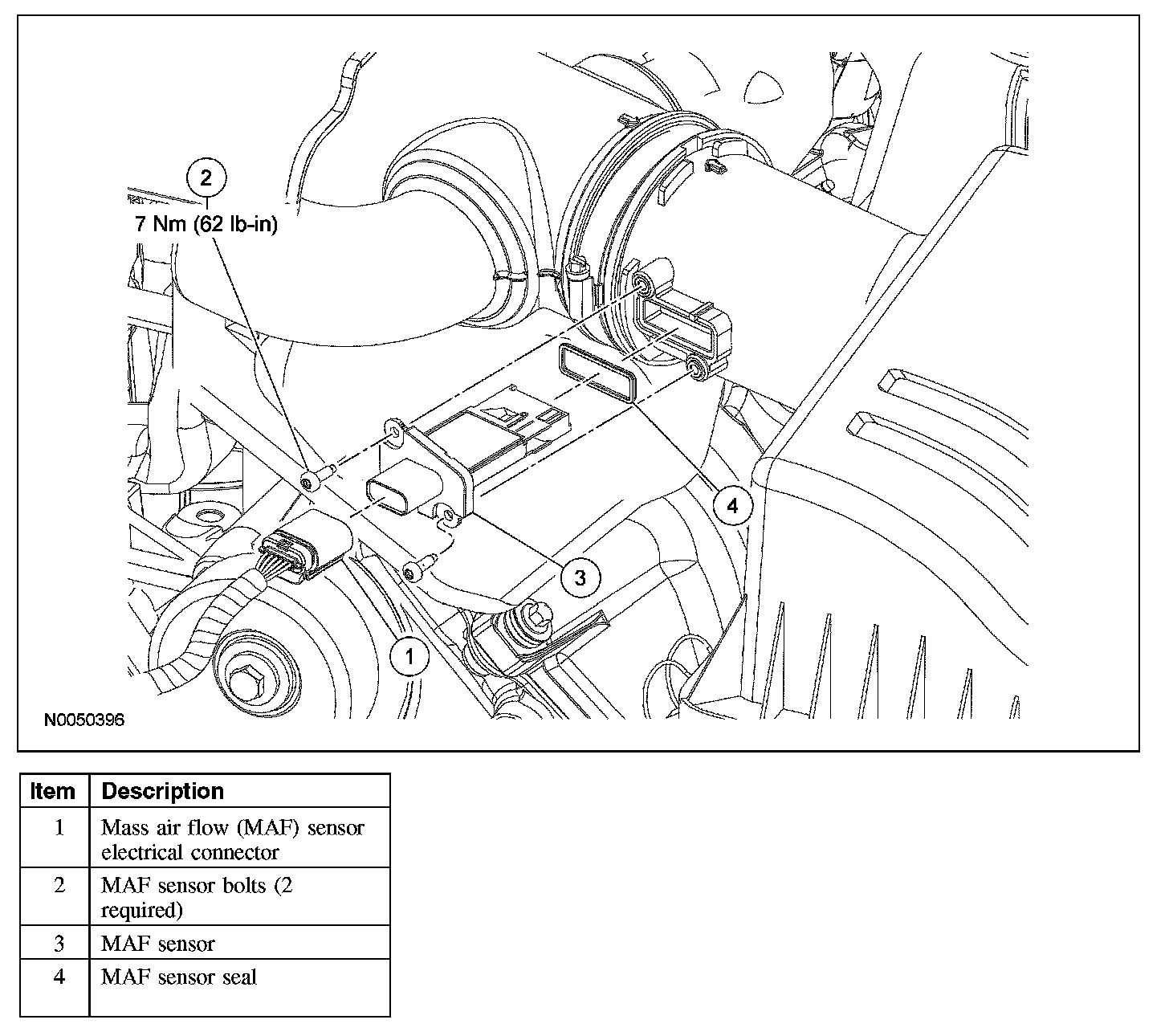

Removal and Installation
1. Disconnect the mass air flow (MAF) sensor electrical connector.
2. Remove the 2 bolts and the MAF sensor.
- To install, tighten to 7 Nm (62 lb-in).

3. To install, reverse the removal procedure.
