Camshaft Position Sensor: Service and Repair

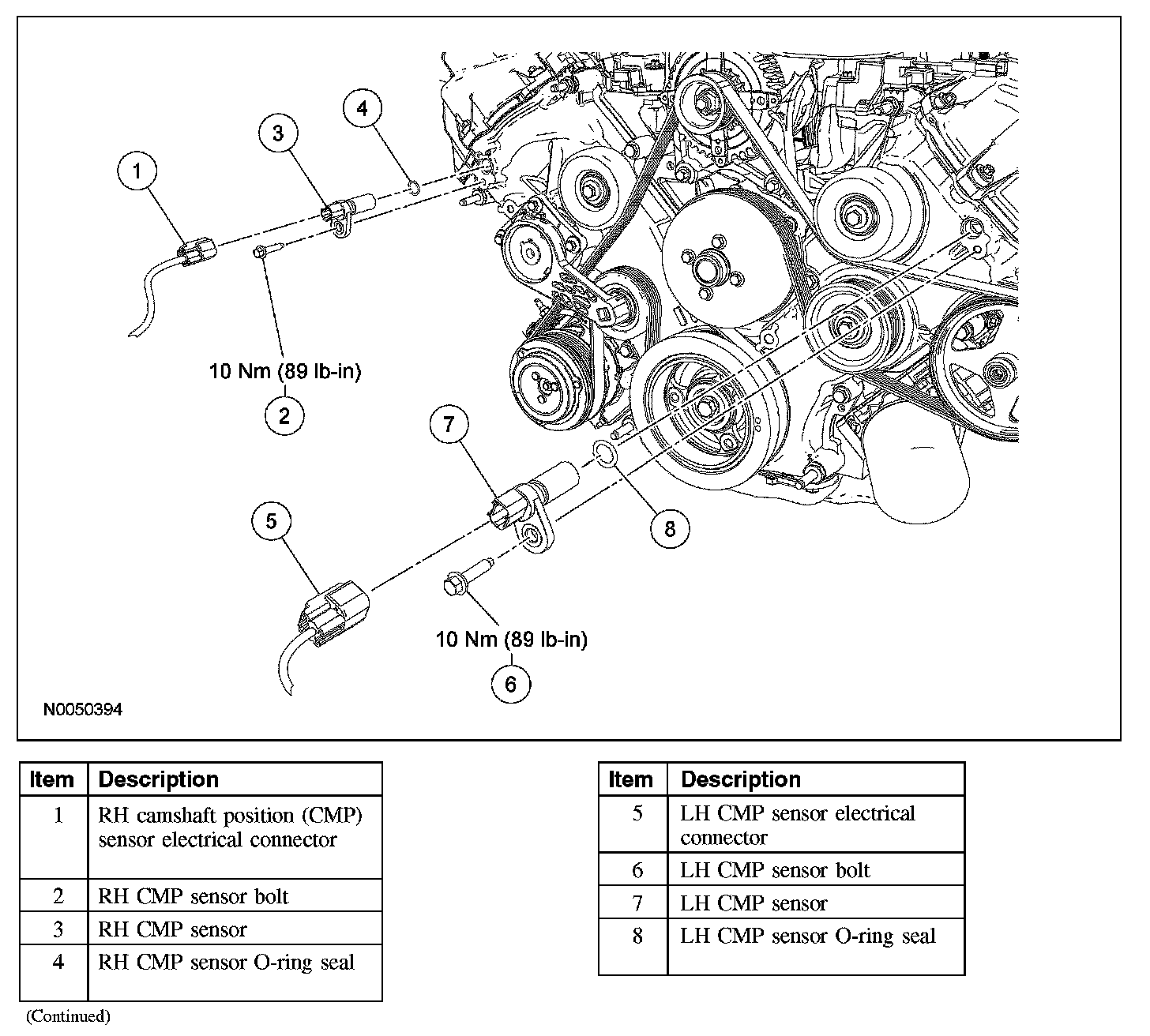

CAMSHAFT POSITION (CMP) SENSOR







Removal and Installation

LH camshaft position (CMP) sensor
1. Remove the air cleaner outlet pipe.

All CMP sensors
2. Disconnect the CMP sensor electrical connector.
3. Remove the bolt and the CMP sensor.
- To install, tighten to 10 Nm (89 lb-in).
- Lubricate the O-ring seal with clean engine oil prior to installation.

4. To install, reverse the removal procedure.
