Fuel Tank Pressure Sensor: Locations

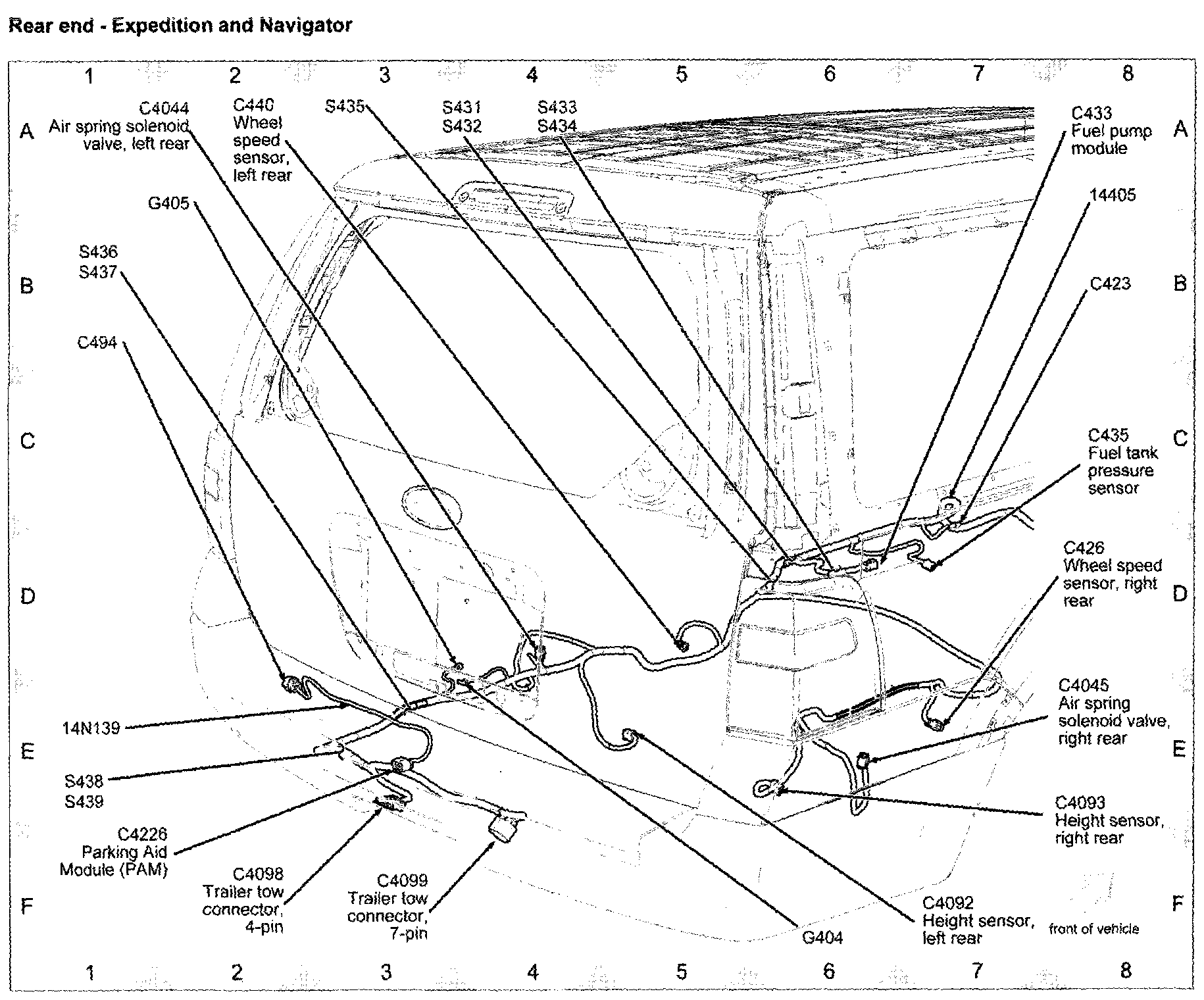

View 151-31 (Rear End - Expedition And Navigator):

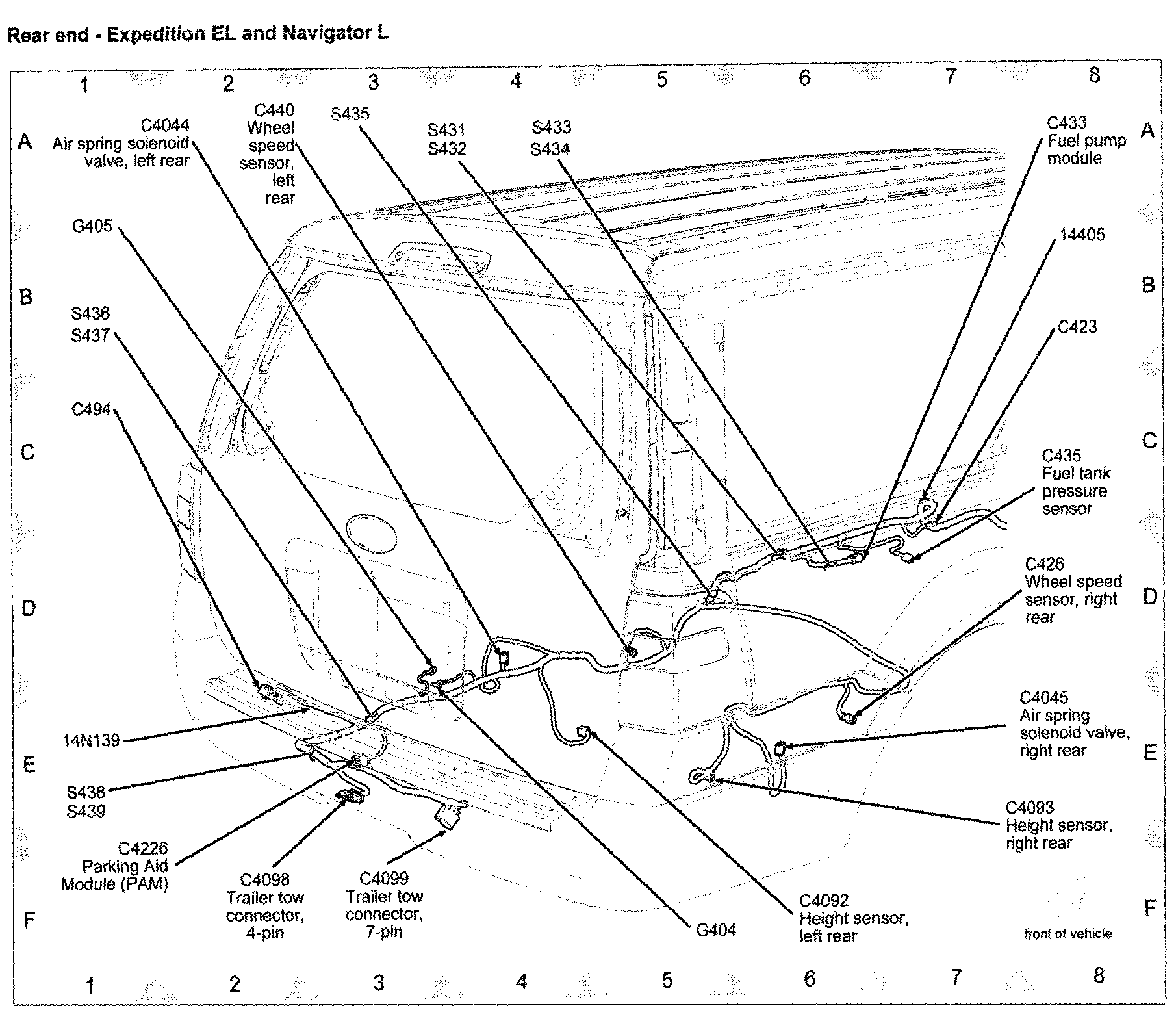

View 151-32 (Rear End - Expedition EL And Navigator L):
