Test D: The Restraints Control Module (RCM) Does Not Respond To The Scan Tool

PINPOINT TEST D: THE RESTRAINTS CONTROL MODULE (RCM) DOES NOT RESPOND TO THE SCAN TOOL

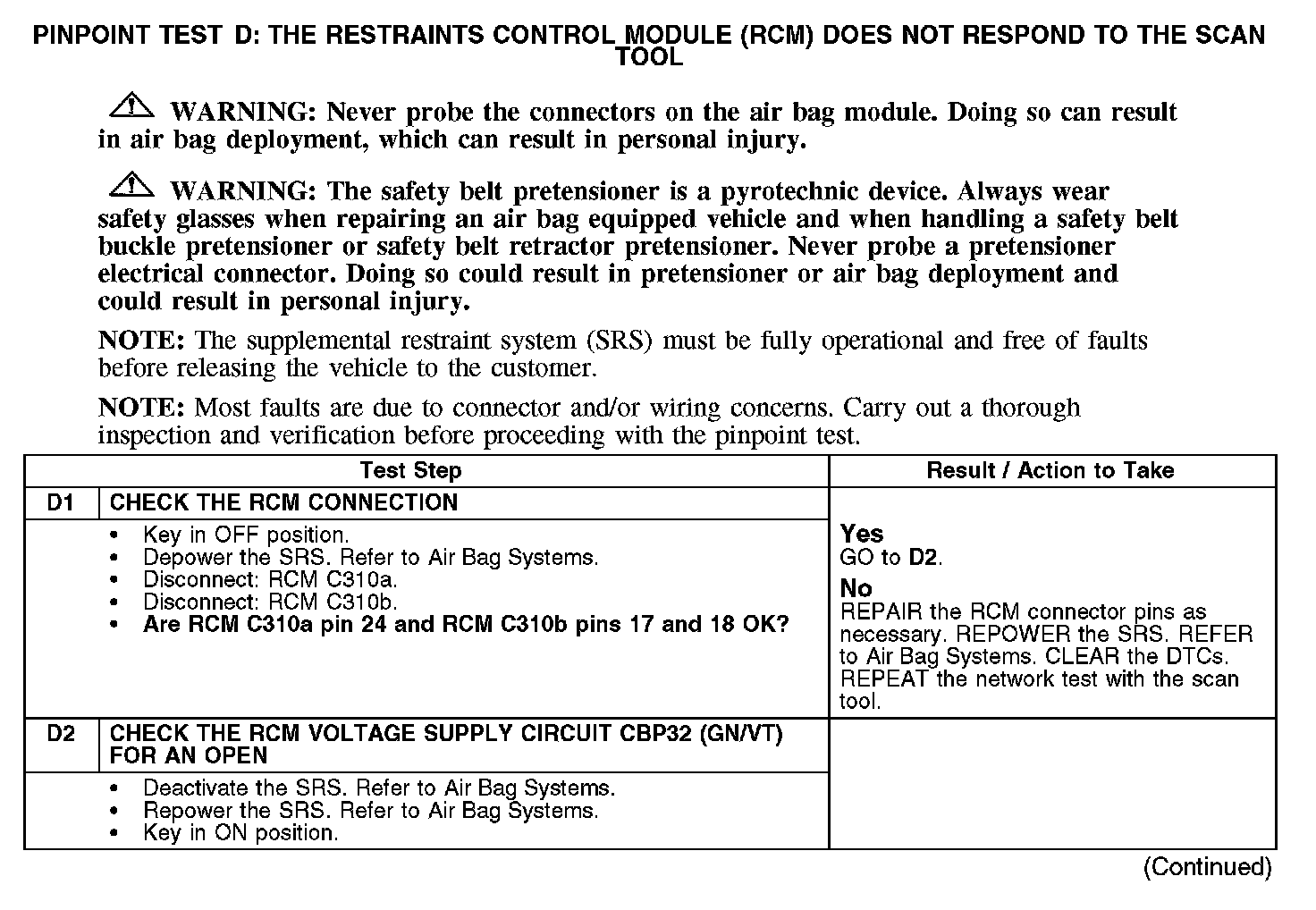

D1-D2:

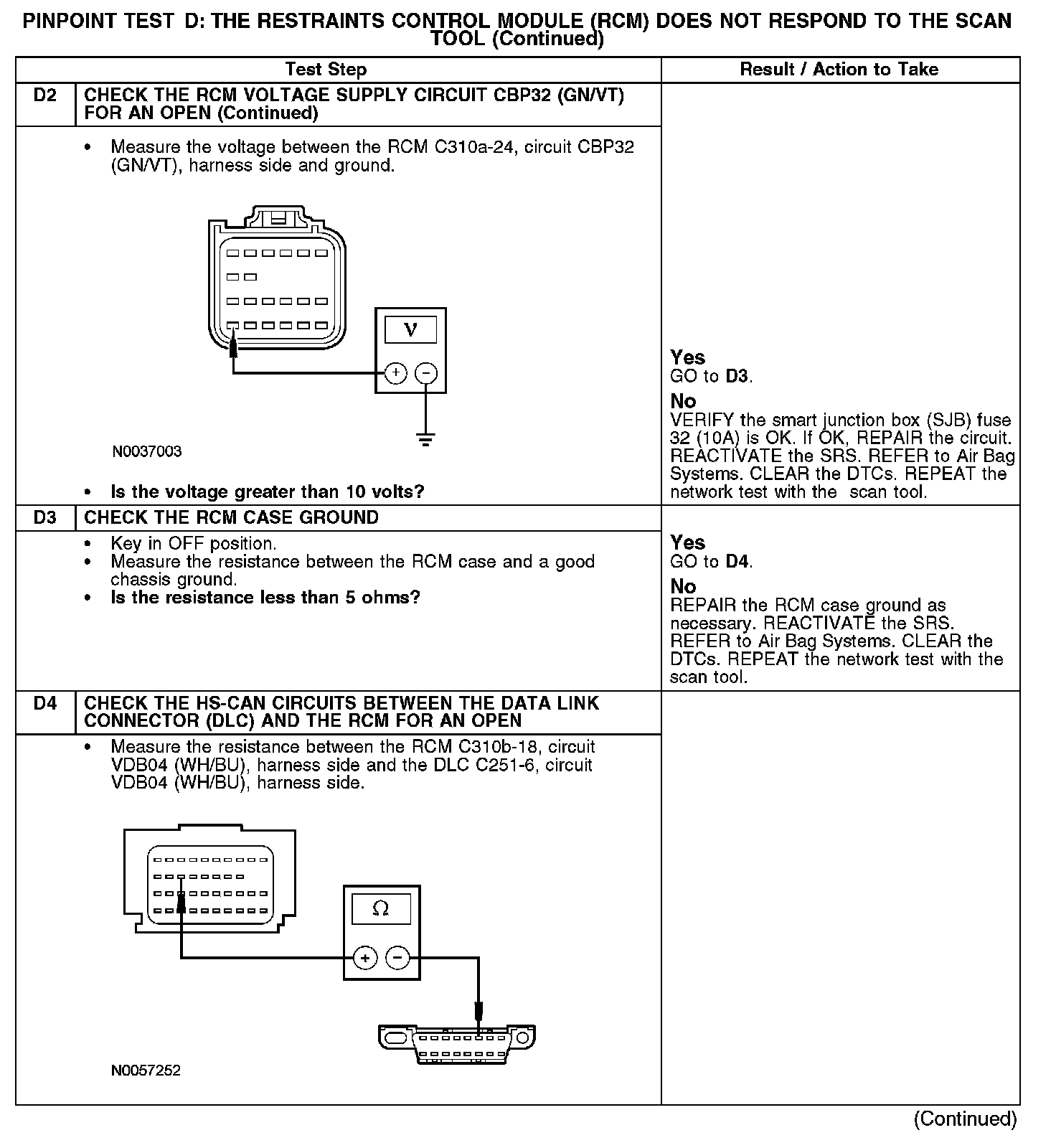

D2-D4:

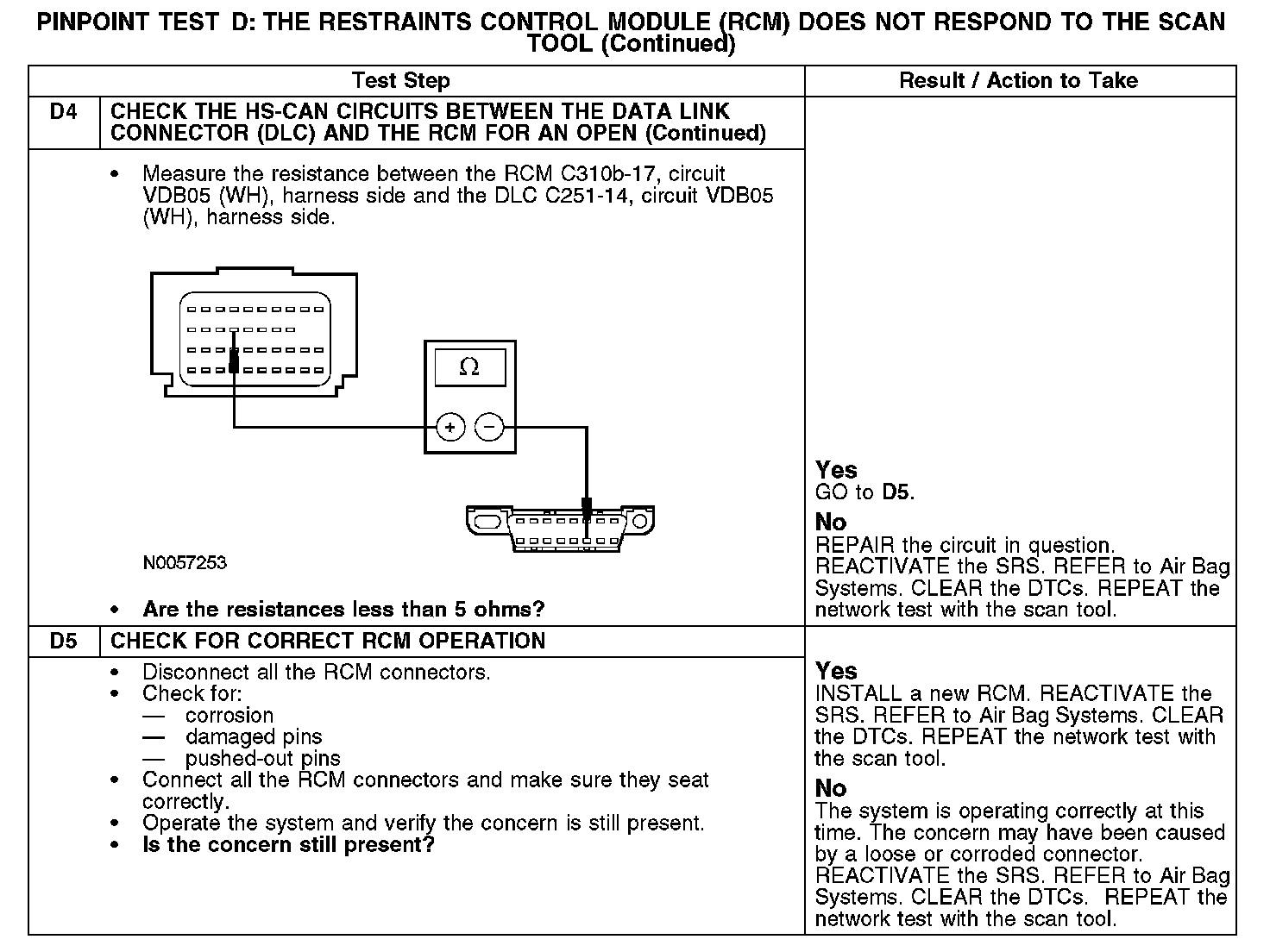

D4-D5:

Normal Operation
The RCM communicates with the scan tool through the high speed controller area network (HS-CAN). Circuits VDB04 (WH/BU) (HS-CAN +) and VDB05 (WH) (HS-CAN -) provide the network connection to the RCM. The RCM shares the HS-CAN network with the powertrain control module (PCM), the transmission control module (TCM), the anti-lock brake system (ABS) module, the four wheel drive (4WD) control module (if equipped), the air suspension module (if equipped) and the instrument cluster. Voltage for the RCM is provided by circuit CBP32 (GN/VT), and the RCM is case grounded.

DTC U0151 - sets in a module which had attempted to communicate with the RCM and failed.

Possible Causes
- Fuse
- Circuit CBP32 (GN/VT) open
- Circuit VDB04 (WH/BU) open (HS-CAN +)
- Circuit VDB05 (WH) open (HS-CAN -)
- Case ground open
- RCM
