Power Trunk / Liftgate Control Module: Locations

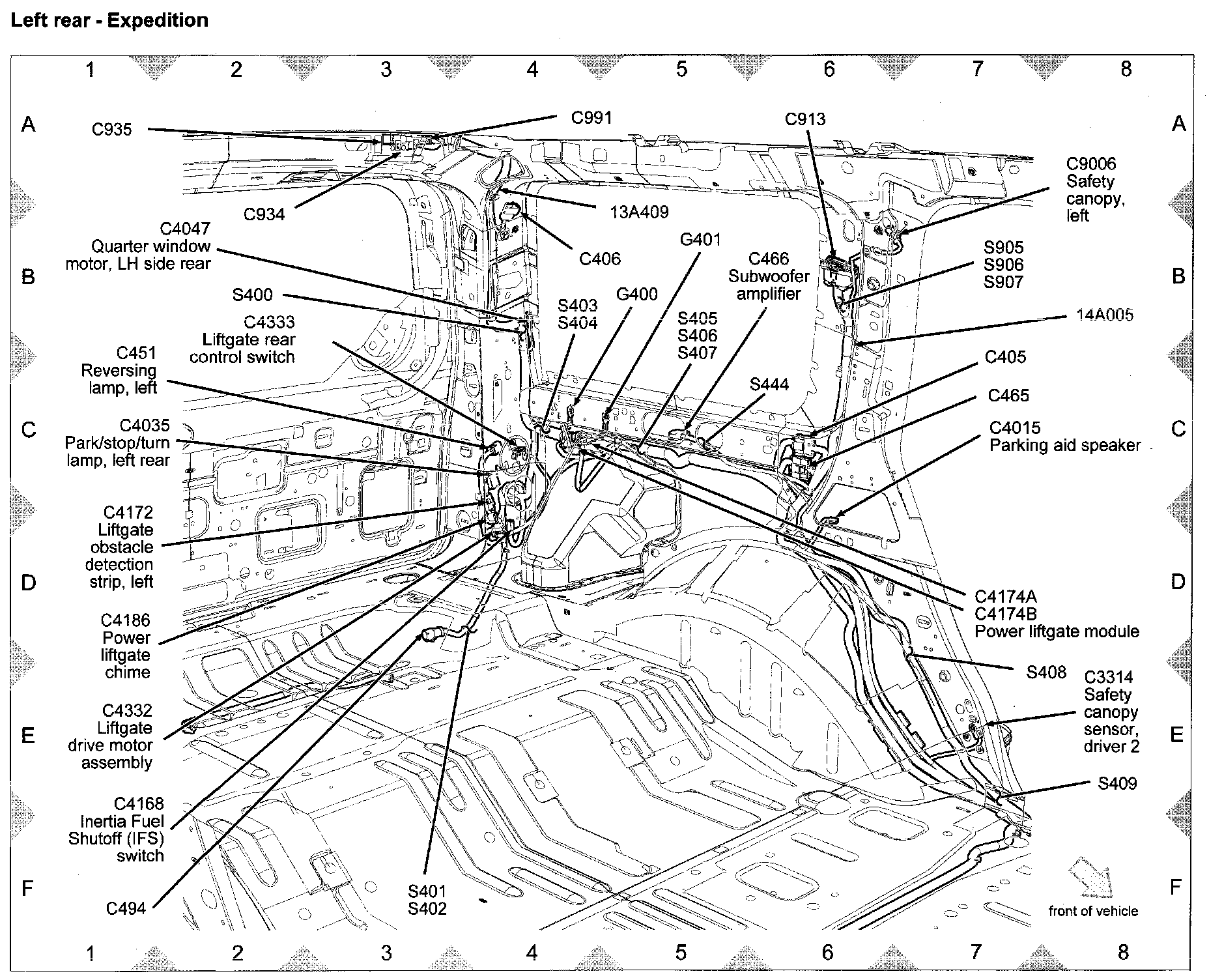

View 151-25 (Left Rear - Expedition):

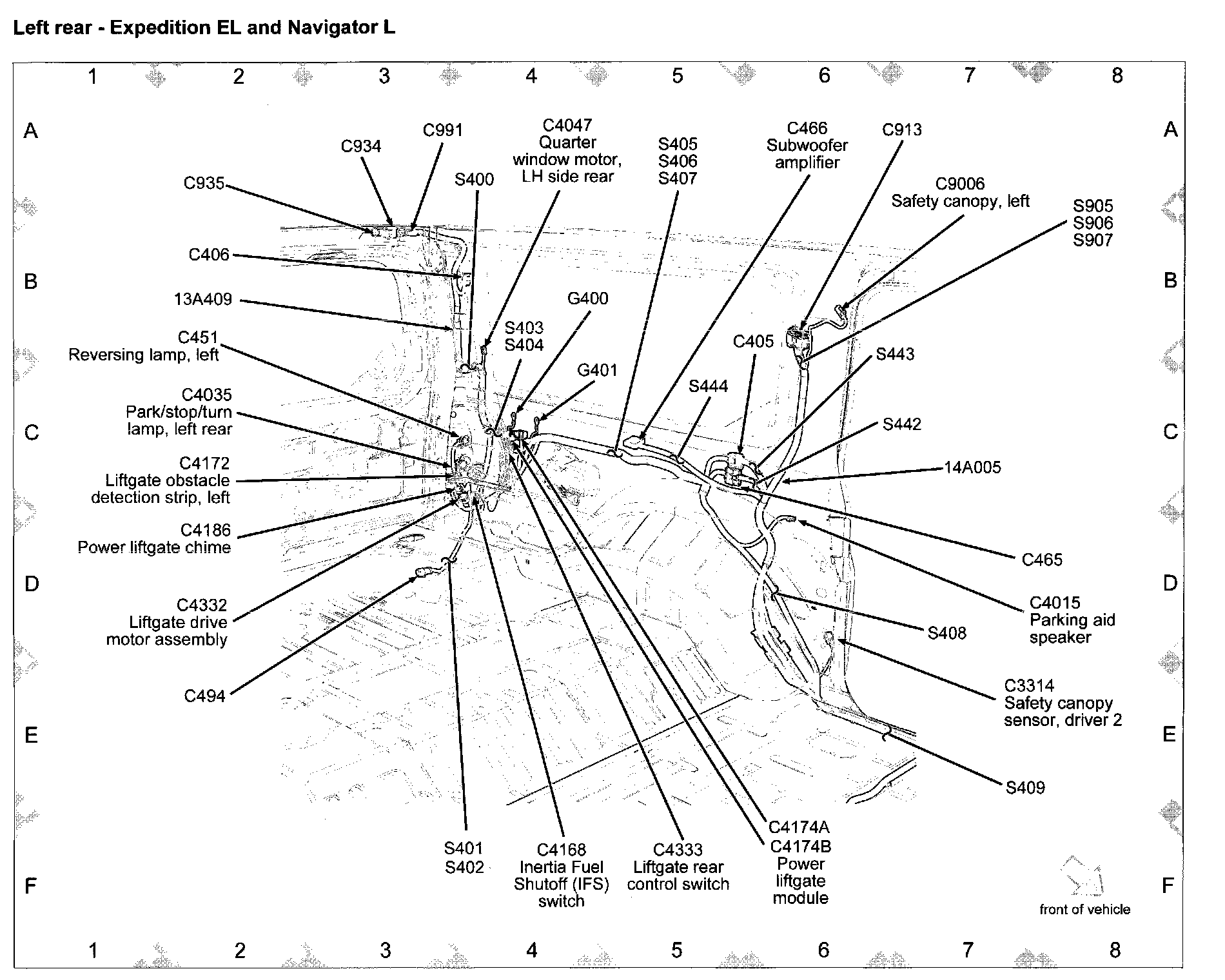

View 151-29 (Left Rear - Expedition EL And Navigator L):
