Power Trunk / Liftgate Control Module: Service and Repair

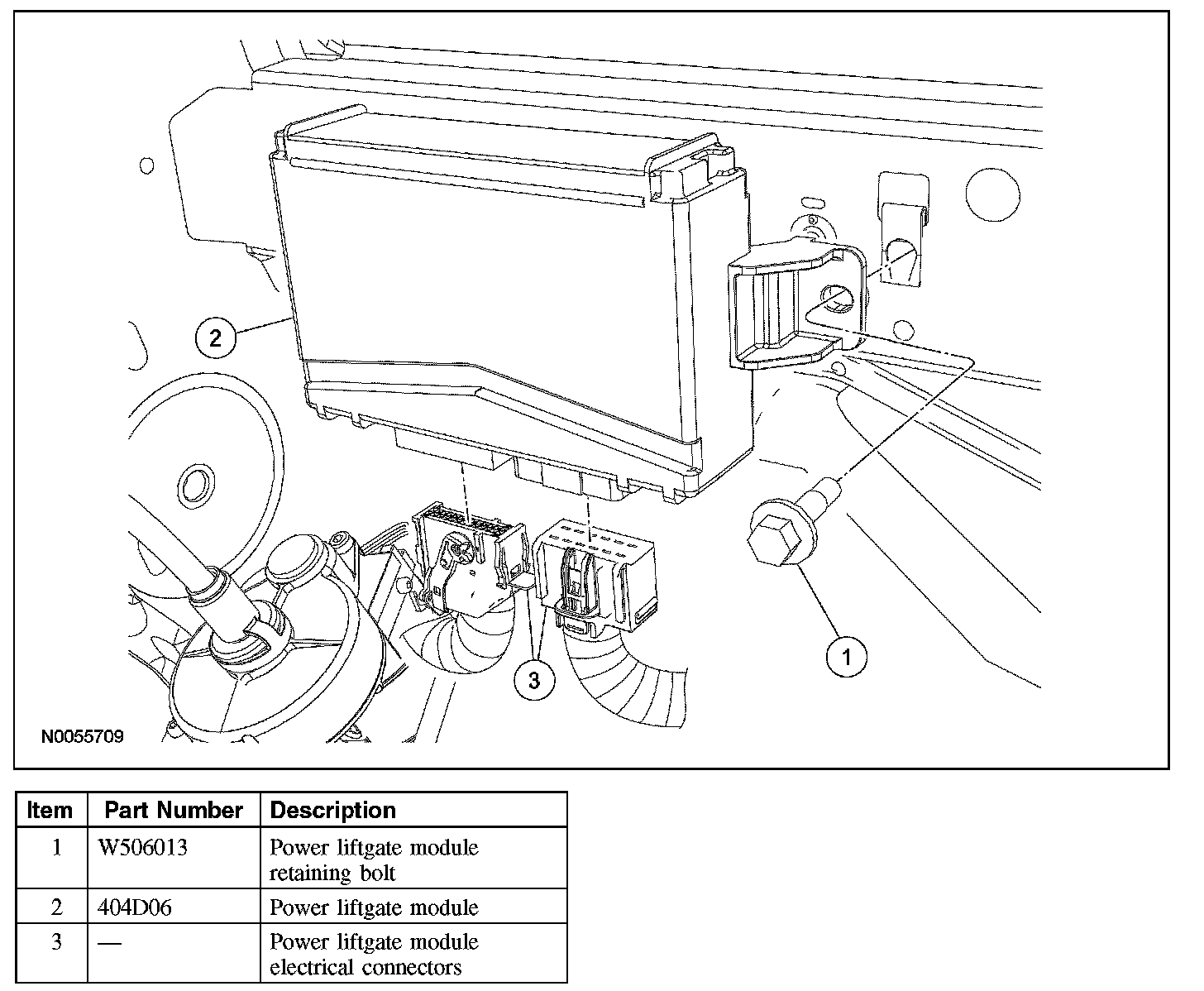

POWER LIFTGATE MODULE







Removal and Installation
1. Remove the rear quarter trim panel.

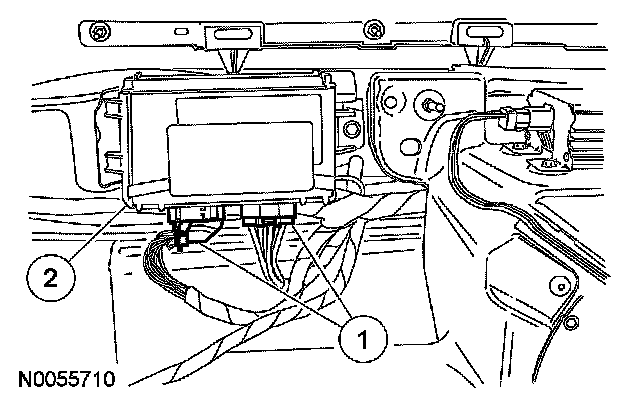

2. Remove the power liftgate module.
1 Disconnect the electrical connectors.
2 Remove the bolt.
- To install, tighten to 9 Nm (80 lb-in).


3. To install, reverse the removal procedure.
