Oil Pan, Engine

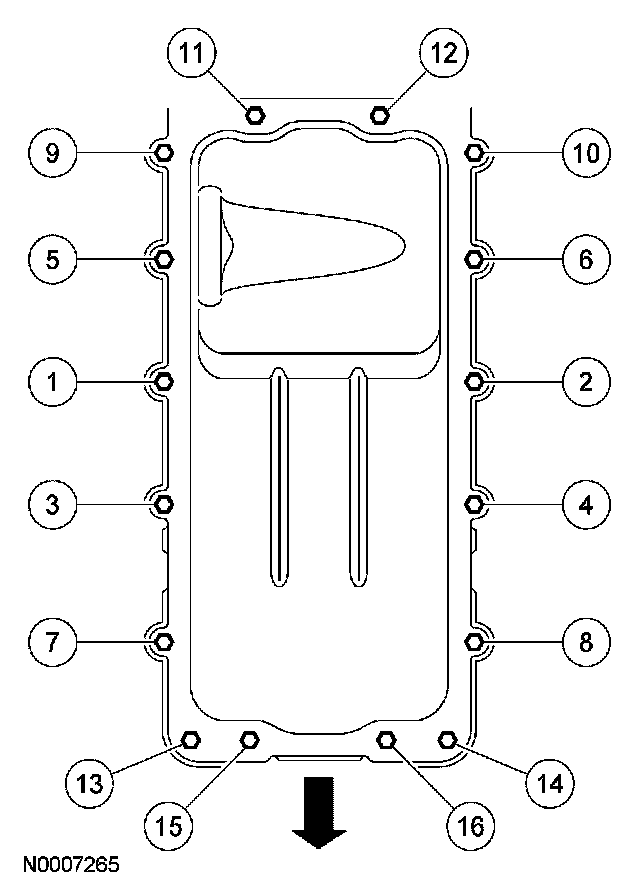

Oil Pan Bolts





First pass 2 Nm (18 inch lbs.)
Second pass 20 Nm (15 ft. lbs.)
Final pass Tighten 60°
