Differential Assembly

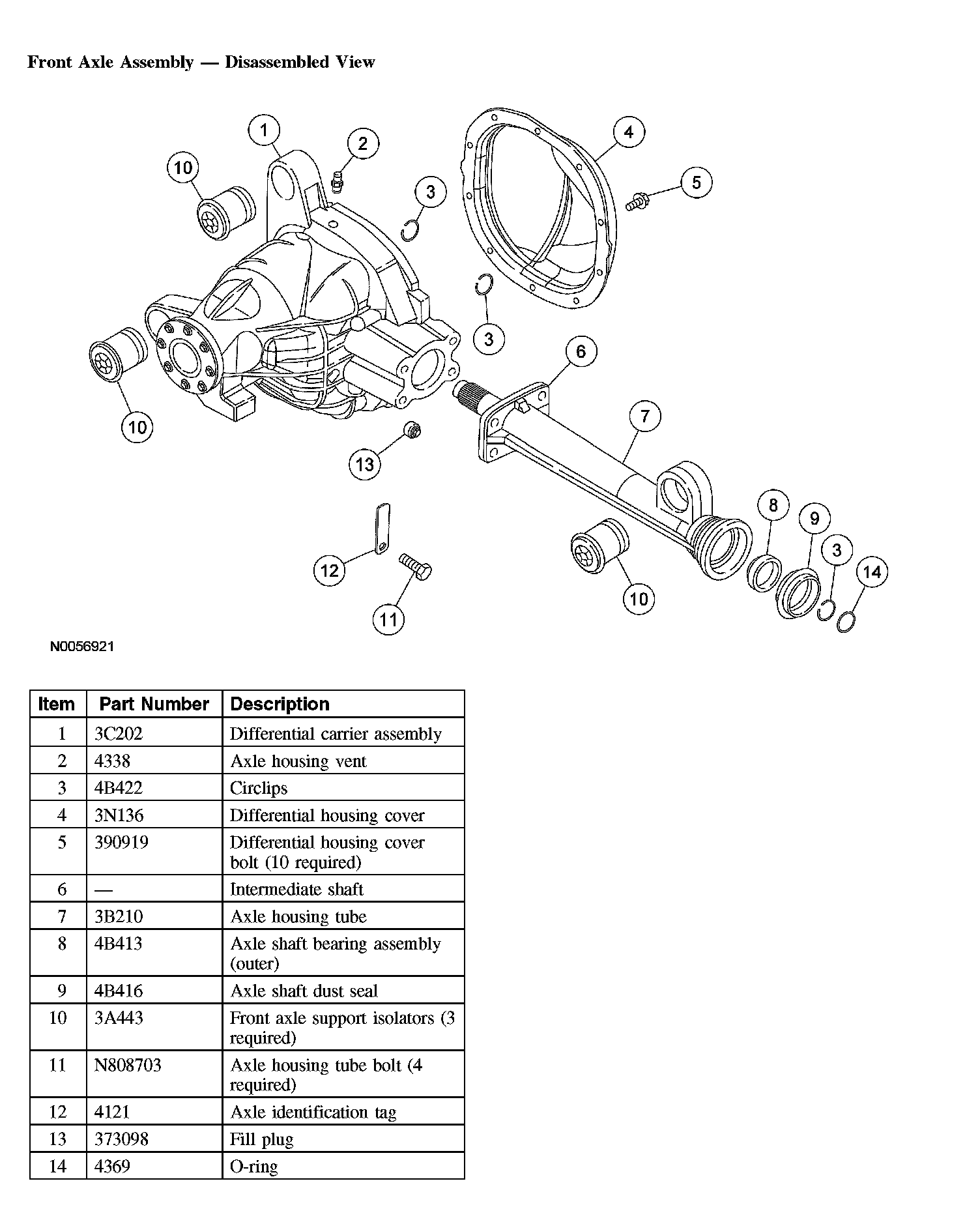

Front Axle Assembly - Disassembled View:

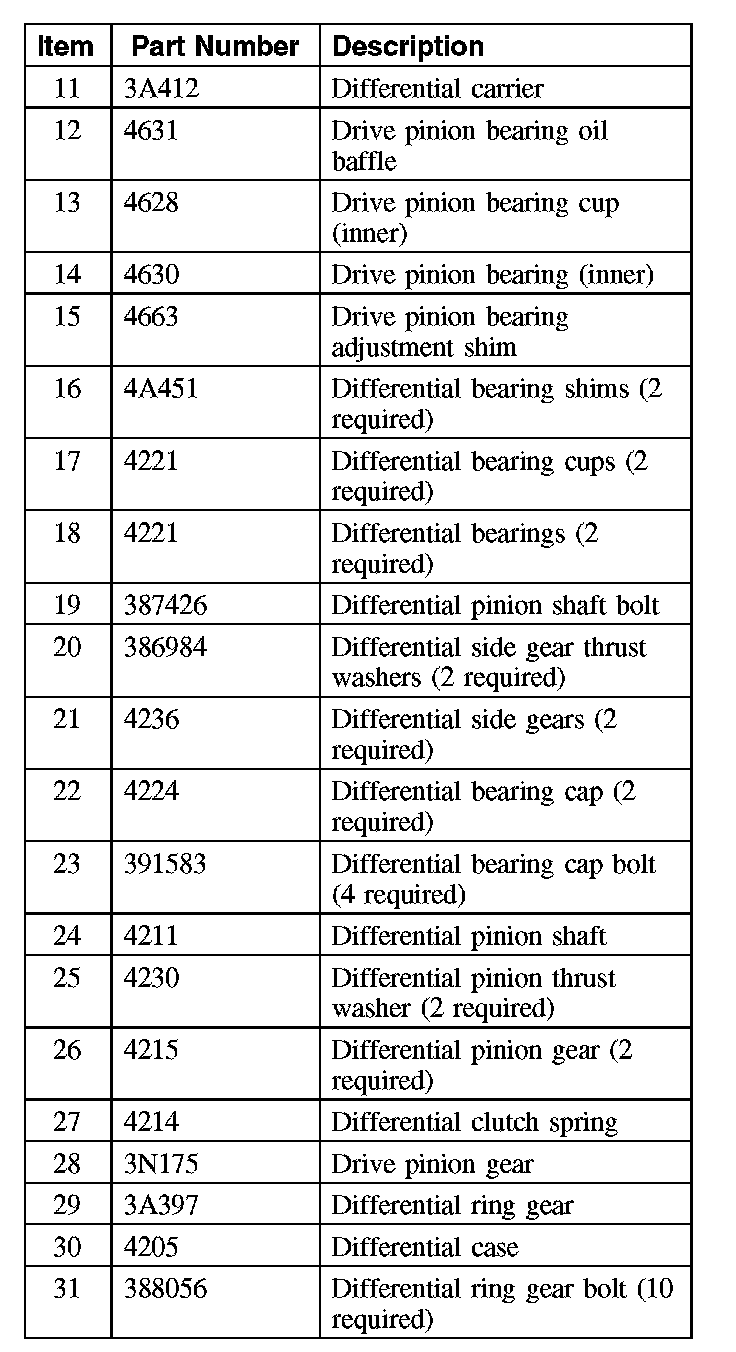

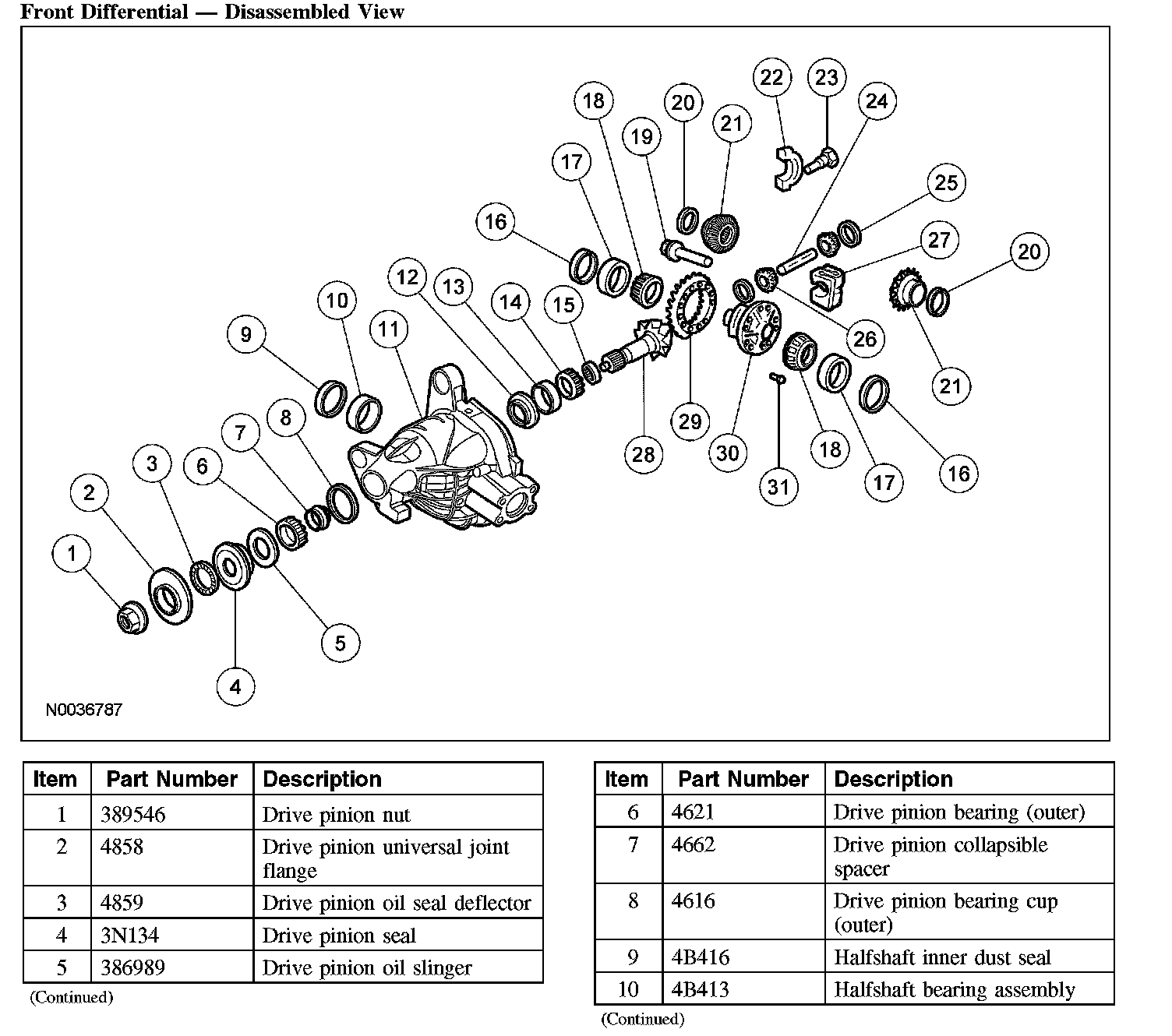

Front Differential - Disassembled View:
