Control Module: Service and Repair

Four Wheel Drive (4WD) Control Module

Removal and Installation

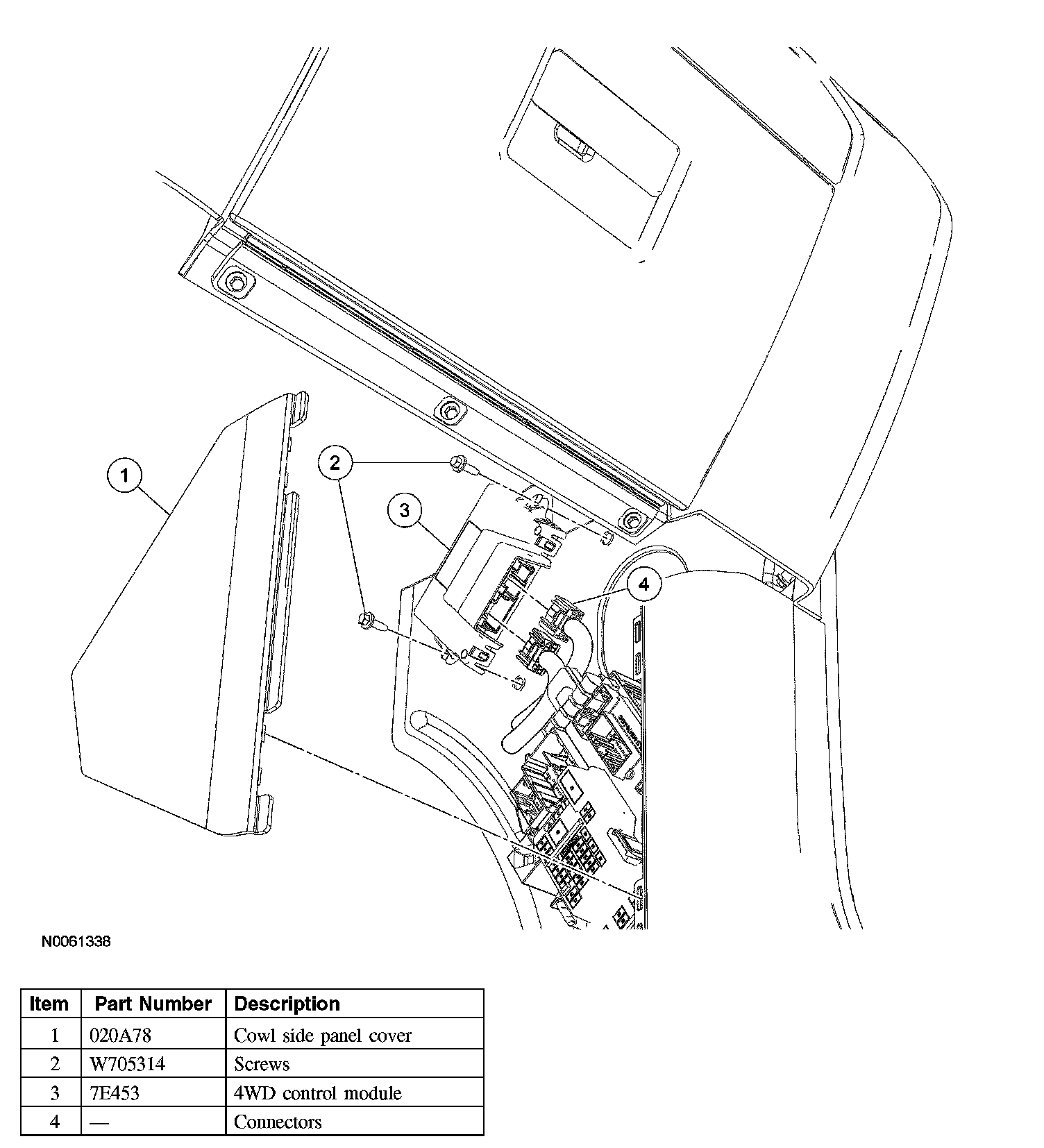

1. Remove the RH-side cowl side panel cover to gain access.
2. Remove the 2 screws.
3. Disconnect the electrical connectors.
4. Remove the 4WD control module.
5. To install, reverse the removal procedure.
