Cooling Module: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Disconnect Tool, Transmission Cooler Line | 307-569 |
Material
| Item | Specification |
|---|---|
| Motorcraft Premium Gold Engine Coolant with Bittering Agent (US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color) |
WSS-M97B51-A1 |

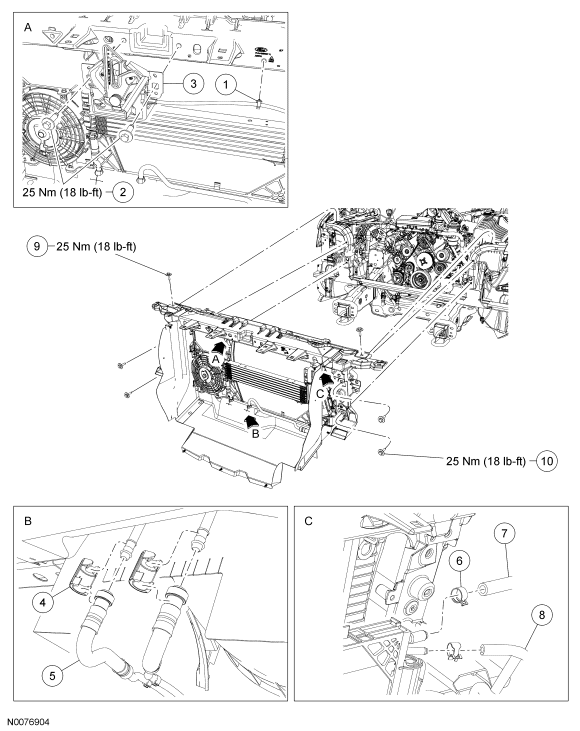

| Item | Part Number | Description |
|---|---|---|
| 1 | 16B975 | Hood latch assembly cable retainer |
| 2 | W711848 | Hood latch assembly bolts (2 required) |
| 3 | 6100 | Hood latch assembly |
| 4 | 7J801 | Transmission fluid cooler tube secondary latch (2 required) |
| 5 | 7H420 | Transmission fluid cooler tube (2 required) |
| 6 | - | Power steering fluid cooler hose clamp (2 required) |
| 7 | 3A713 | Power steering gear-to-fluid cooler return hose |
| 8 | 3B726 | Power steering fluid cooler supply hose |
| 9 | W701835 | Cooling module upper bolt (2 required) |
| 10 | W701835 | Cooling module front bolt (4 required) |
