Anti-Lock Brake System (ABS) Module: Notes

Fig 1: Exploded View Of Air Cleaner Housing With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Air cleaner outlet clamp (part of 9F805)
2	-	Mass air flow (MAF) sensor electrical connector (part of 14A464)
3	9661	Air cleaner housing cover

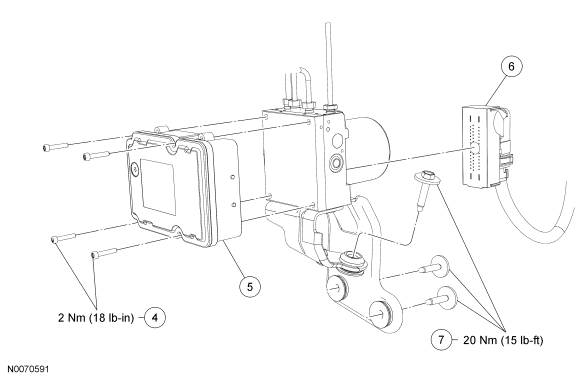

Fig 2: Exploded View Of Anti-Lock Brake System ABS Module With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
4	W302577	ABS module bolts (4 required)
5	2C219	ABS module
6	-	ABS module electrical connector (part of 14A464)
7	W710309	Hydraulic control unit (HCU) bracket-to-frame bolts (3 required)
