Stability Control Sensor Cluster: Notes

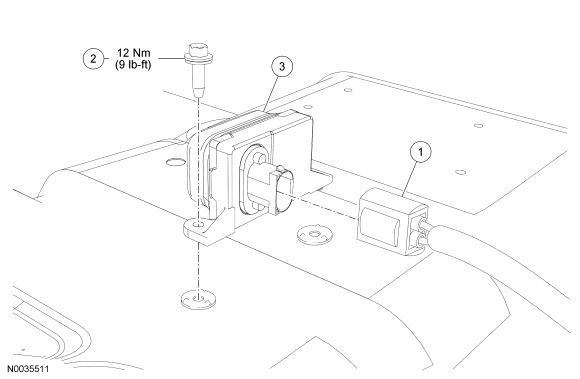

Fig 1: Exploded View Of Stability Control Sensor Cluster With Torque Specifications
GF0022475Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Stability control sensor cluster electrical connector (part of 14A005)
2 W505255 Stability control sensor cluster bolt (2 required)
3 3C187 Stability control sensor cluster
