Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|
| S100 (Expedition) | In engine control sensor harness, near breakout to C211. See Figure. |
| S100 (Navigator) | In engine control sensor harness, near breakout to C211. See Figure. |
| S101 (Expedition) | In engine control sensor harness, near breakout to powertrain control module. See Figure. |
| S101 (Navigator) | In engine control sensor harness, near breakout to powertrain control module. See Figure. |
| S102 (Expedition) | In engine control sensor harness, near breakout to powertrain control module. See Figure. |
| S102 (Navigator) | In engine control sensor harness, near breakout to powertrain control module. See Figure. |
| S103 (Expedition) | In engine control sensor harness, near breakout to powertrain control module. See Figure. |
| S103 (Navigator) | In engine control sensor harness, near breakout to powertrain control module. See Figure. |
| S104 (Expedition) | In engine control sensor harness, near breakout to C140. See Figure. |
| S104 (Navigator) | In engine control sensor harness, near breakout to C140. See Figure. |
| S105 (Expedition) | In engine control sensor harness, near breakout to C140. See Figure. |
| S105 (Navigator) | In engine control sensor harness, near breakout to C140. See Figure. |
| S106 (Expedition) | In engine control sensor harness, near breakout to left front wheel speed sensor. See Figure. |
| S106 (Navigator) | In engine control sensor harness, near breakout to left front wheel speed sensor. See Figure. |
| S107 (Expedition) | In engine control sensor harness, near breakout to battery junction box. See Figure. |
| S107 (Navigator) | In engine control sensor harness, near breakout to battery junction box. See Figure. |
| S108 (Expedition) | In engine control sensor harness, near breakout to washer fluid switch. See Figure. |
| S108 (Navigator) | In engine control sensor harness, near breakout to washer fluid switch. See Figure. |
| S109 (Expedition) | In engine control sensor harness, near breakout to battery junction box. See Figure. |
| S109 (Navigator) | In engine control sensor harness, near breakout to battery junction box. See Figure. |
| S110 (Expedition) | In engine control sensor harness, near breakout to battery junction box. See Figure. |
| S110 (Navigator) | In engine control sensor harness, near breakout to battery junction box. See Figure. |
| S111 (Expedition) | In engine control sensor harness, near breakout to battery junction box. See Figure. |
| S111 (Navigator) | In engine control sensor harness, near breakout to battery junction box. See Figure. |
| S112 (Expedition) | In engine control sensor harness, near breakout to battery junction box. See Figure. |
| S112 (Navigator) | In engine control sensor harness, near breakout to battery junction box. See Figure. |
| S113 (Expedition) | In engine control sensor harness, near breakout to battery junction box. See Figure. |
| S113 (Navigator) | In engine control sensor harness, near breakout to battery junction box. See Figure. |
| S114 (Expedition) | In engine control sensor harness, under battery junction box. See Figure. |
| S114 (Navigator) | In engine control sensor harness, under battery junction box. See Figure. |
| S115 (Expedition) | In engine control sensor harness, under battery junction box. See Figure. |
| S115 (Navigator) | In engine control sensor harness, under battery junction box. See Figure. |
| S116 (Expedition) | In engine control sensor harness, under battery junction box. See Figure. |
| S116 (Navigator) | In engine control sensor harness, under battery junction box. See Figure. |
| S117 (Expedition) | In engine control sensor harness, under battery junction box. See Figure. |
| S117 (Navigator) | In engine control sensor harness, under battery junction box. See Figure. |
| S118 (Expedition) | In engine control sensor harness, under battery junction box. See Figure. |
| S118 (Navigator) | In engine control sensor harness, under battery junction box. See Figure. |
| S119 (Expedition) | In engine control sensor harness, under battery junction box. See Figure. |
| S119 (Navigator) | In engine control sensor harness, under battery junction box. See Figure. |
| S120 (Expedition) | In engine control sensor harness, under battery junction box. See Figure. |
| S120 (Navigator) | In engine control sensor harness, under battery junction box. See Figure. |
| S121 (Expedition) | In engine control sensor harness, under battery junction box. See Figure. |
| S121 (Navigator) | In engine control sensor harness, under battery junction box. See Figure. |
| S122 (Expedition) | In engine control sensor harness, near breakout to horn. See Figure. |
| S122 (Navigator) | In engine control sensor harness, near breakout to horn. See Figure. |
| S123 (Expedition) | In engine control sensor harness, near breakout to left front foglight. See Figure. |
| S123 (Navigator) | In engine control sensor harness, near breakout to left front foglight. See Figure. |
| S124 (Expedition) | In engine control sensor harness, near breakout to left front foglight. See Figure. |
| S124 (Navigator) | In engine control sensor harness, near breakout to left front foglight. See Figure. |
| S125 (Expedition) | In engine control sensor harness, near breakout to left front side light. See Figure. |
| S125 (Navigator) | In engine control sensor harness, near breakout to left front side light. See Figure. |
| S126 (Expedition) | In engine control sensor harness, near breakout to left front side light. See Figure. |
| S126 (Navigator) | In engine control sensor harness, near breakout to left front side light. See Figure. |
| S127 (Expedition) | In engine control sensor harness, near breakout to brake fluid level switch. See Figure. |
| S127 (Navigator) | In engine control sensor harness, near breakout to brake fluid level switch. See Figure. |
| S128 (Expedition) | In engine control sensor harness, near breakout to brake fluid level switch. See Figure. |
| S128 (Navigator) | In engine control sensor harness, near breakout to brake fluid level switch. See Figure. |
| S129 (Expedition) | In engine control sensor harness, near breakout to left front wheel speed sensor. See Figure. |
| S129 (Navigator) | In engine control sensor harness, near breakout to left front wheel speed sensor. See Figure. |
| S130 (Expedition) | In engine control sensor harness, near breakout to left front wheel speed sensor. See Figure. |
| S130 (Navigator) | In engine control sensor harness, near breakout to left front wheel speed sensor. See Figure. |
| S131 (Expedition) | In engine control sensor harness, near breakout to EVAP canister purge valve. See Figure. |
| S131 (Navigator) | In engine control sensor harness, near breakout to EVAP canister purge valve. See Figure. |
| S132 (Expedition) | In engine control sensor harness, near breakout to windshield wiper motor assembly. See Figure. |
| S132 (Navigator) | In engine control sensor harness, near breakout to windshield wiper motor assembly. See Figure. |
| S133 (Expedition) | In engine control sensor harness, near breakout to C212. See Figure. |
| S133 (Navigator) | In engine control sensor harness, near breakout to C212. See Figure. |

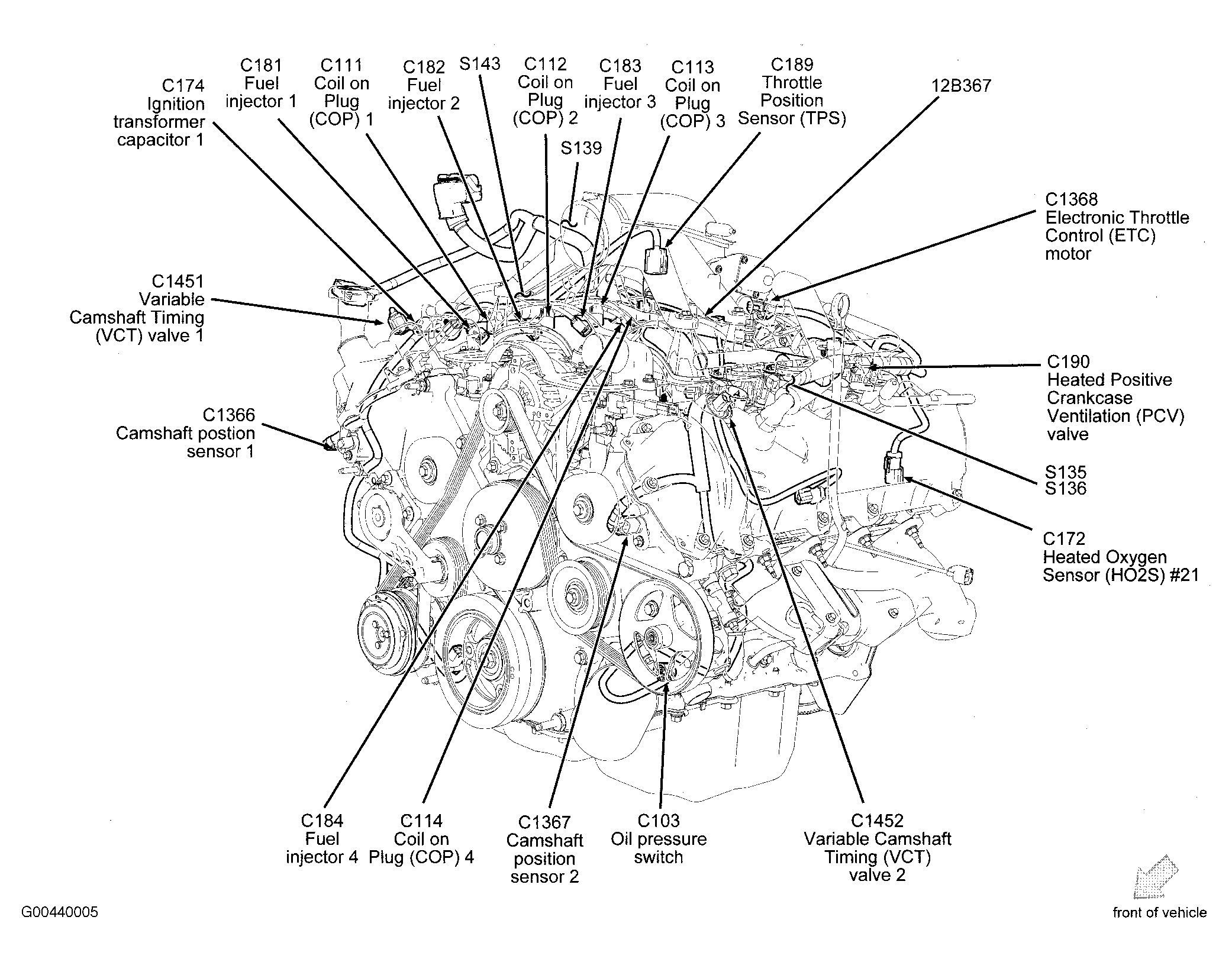

| S135 | In headlights harness, in breakout to C133. See Figure. |
| S136 | In engine control sensor & fuel charge harness, near breakout to fuel injector 7. See Figure. |

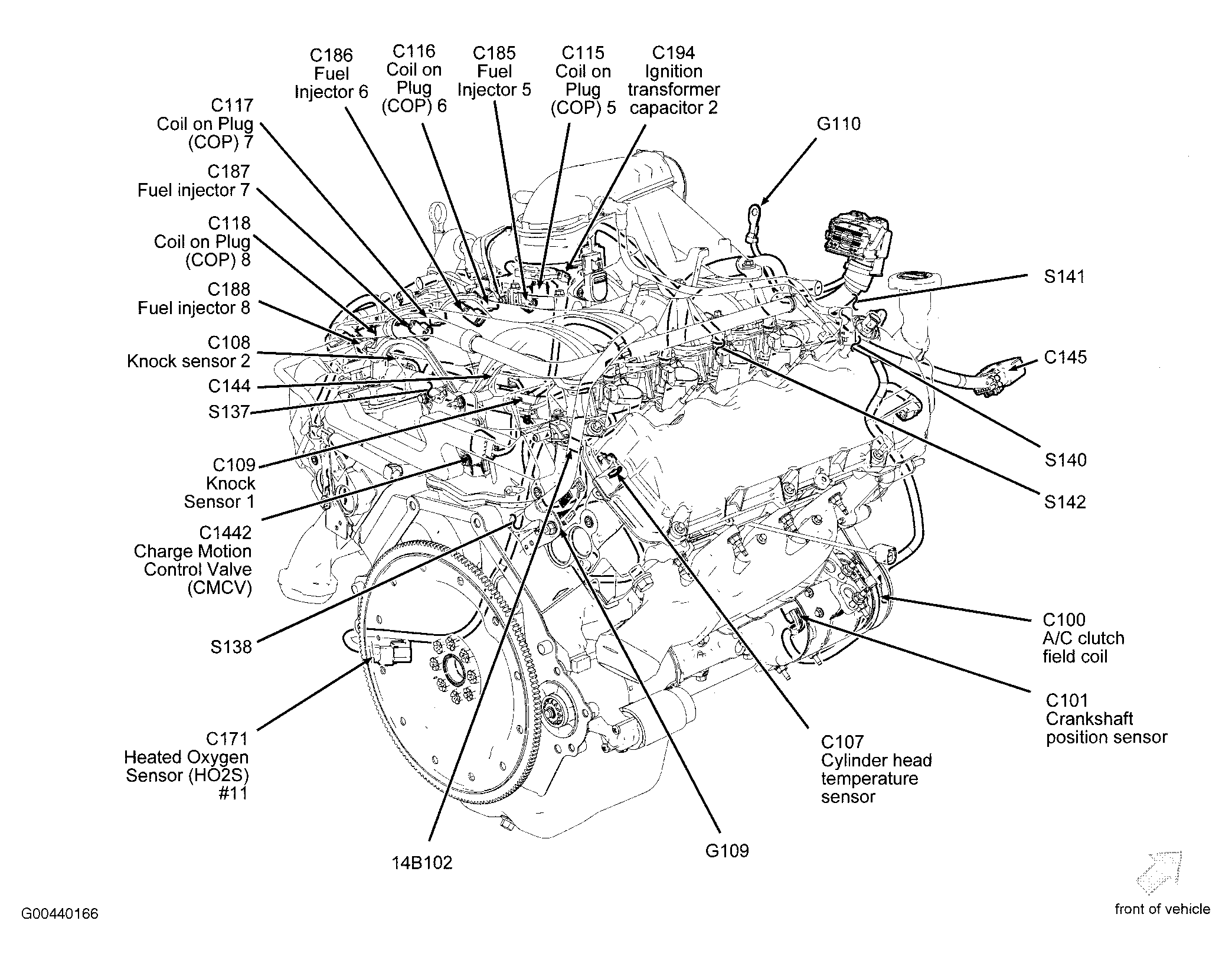

| S137 | In engine control sensor & fuel charge harness, near breakout to charge motion control valve. See Figure. |
| S138 | In engine control sensor & fuel charge harness, near breakout to heated oxygen sensor #11. See Figure. |
| S139 | In engine control sensor & fuel charge harness, near breakout to powertrain control module. See Figure. |
| S140 | In engine control sensor & fuel charge harness, near breakout to C145. See Figure. |
| S141 | In engine control sensor & fuel charge harness, near breakout to powertrain control module. See Figure. |
| S142 | In engine control sensor & fuel charge harness, near breakout to fuel injector 3. See Figure. |
| S143 | In engine control sensor & fuel charge harness, near breakout to fuel injector 3. See Figure. |
| S144 (Expedition) | In alternator rectifier system harness, near breakout to battery. See Figure. |
| S144 (Navigator) | In alternator rectifier system harness, near breakout to battery. See Figure. |
| S145 (Expedition) | In alternator rectifier system harness, near breakout to battery. See Figure. |
| S145 (Navigator) | In alternator rectifier system harness, near breakout to battery. See Figure. |
| S146 (Expedition) | In alternator rectifier system harness, near breakout to battery. See Figure. |
| S146 (Navigator) | In alternator rectifier system harness, near breakout to battery. See Figure. |
| S147 | In headlights harness, in breakout to C133. See Figure. |
| S148 | In headlights harness, in breakout to C134. See Figure. |

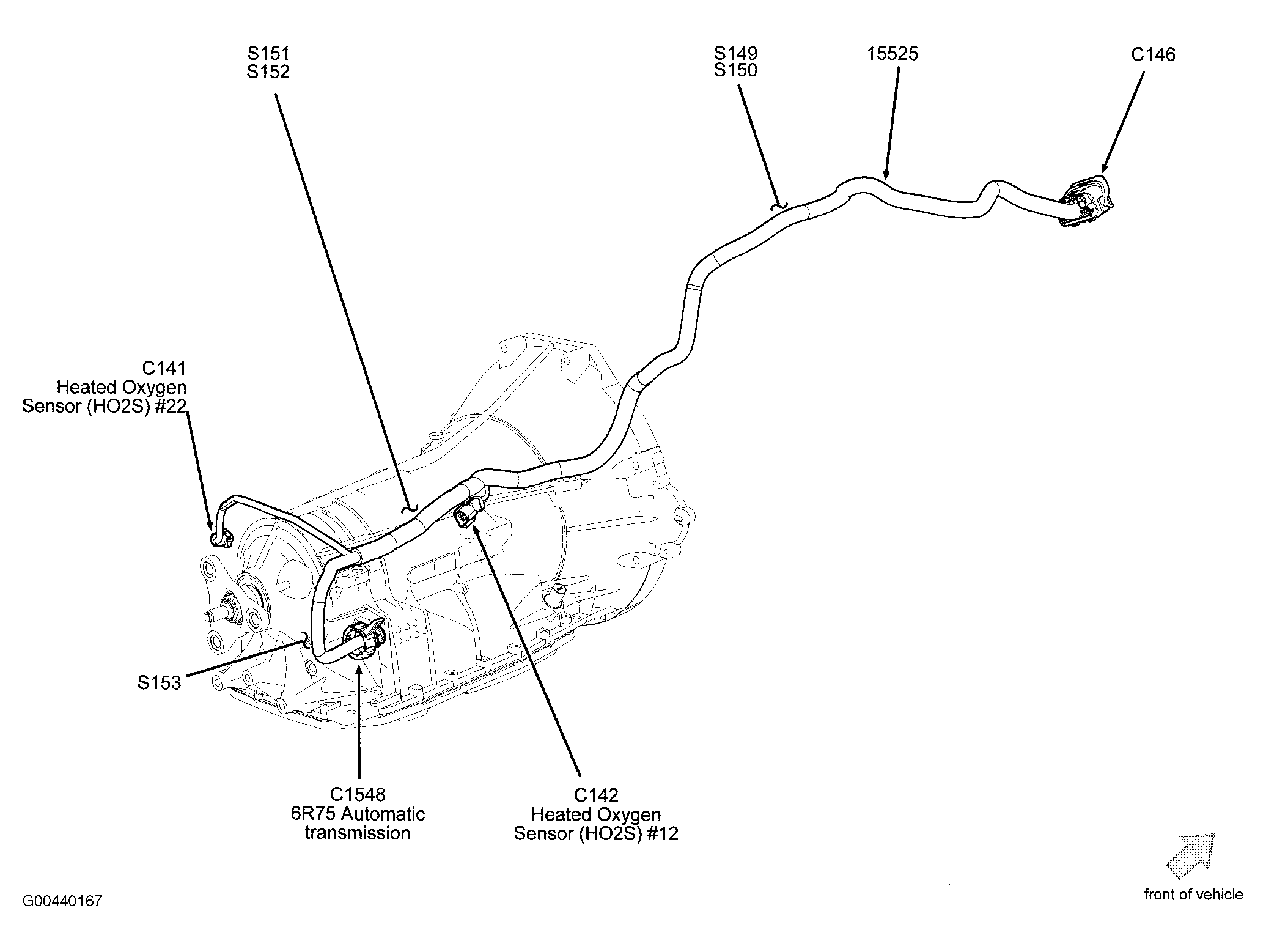

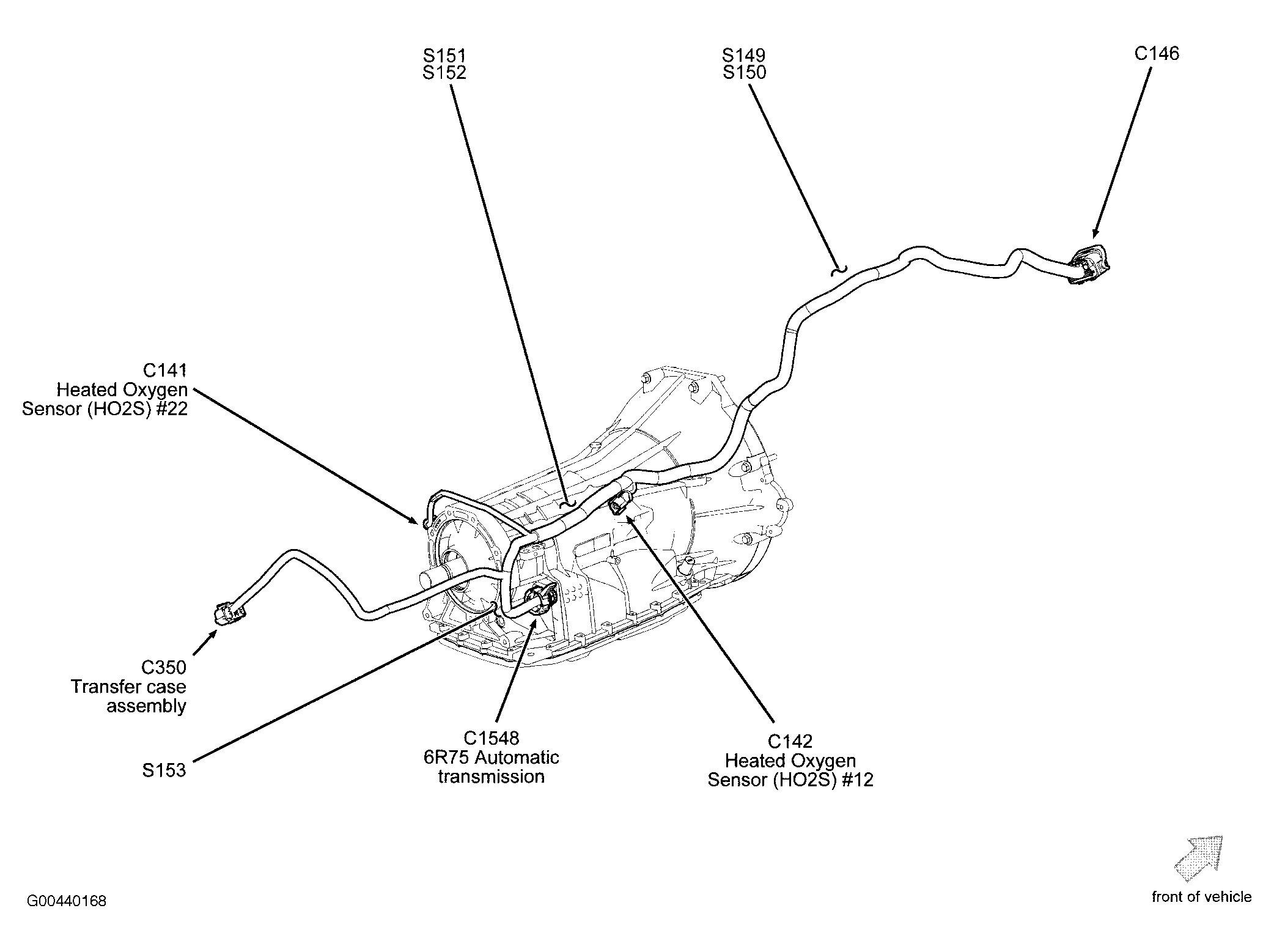

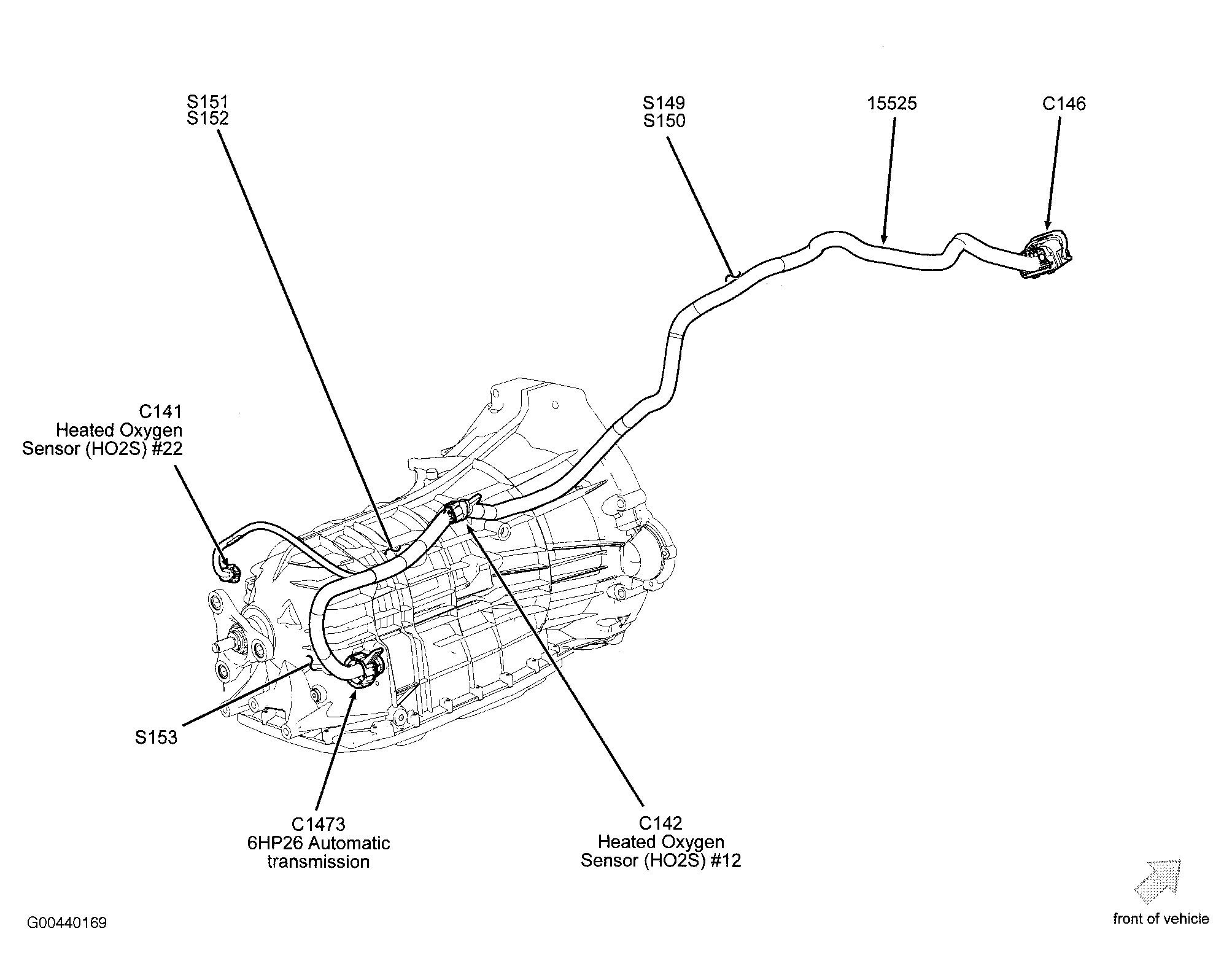

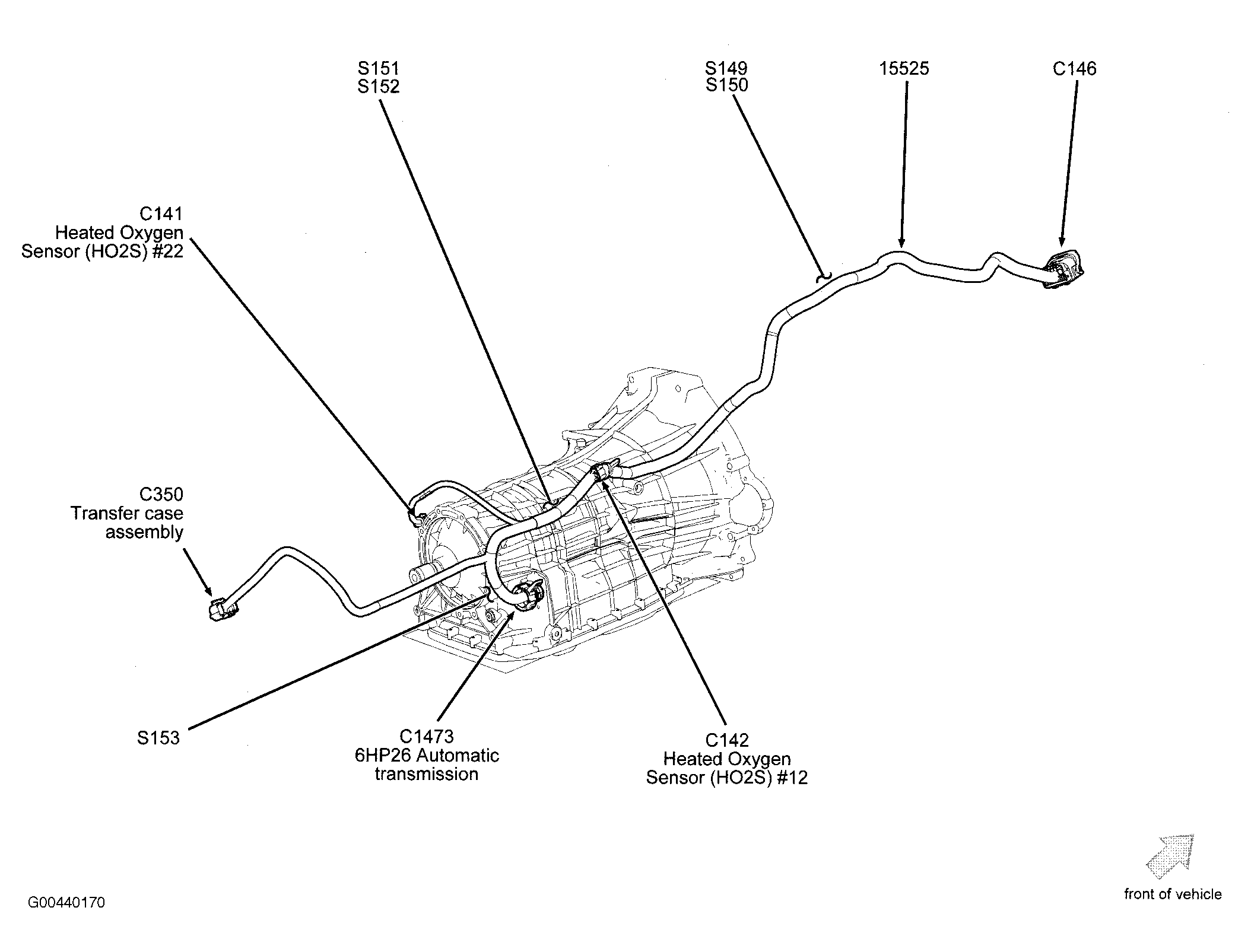

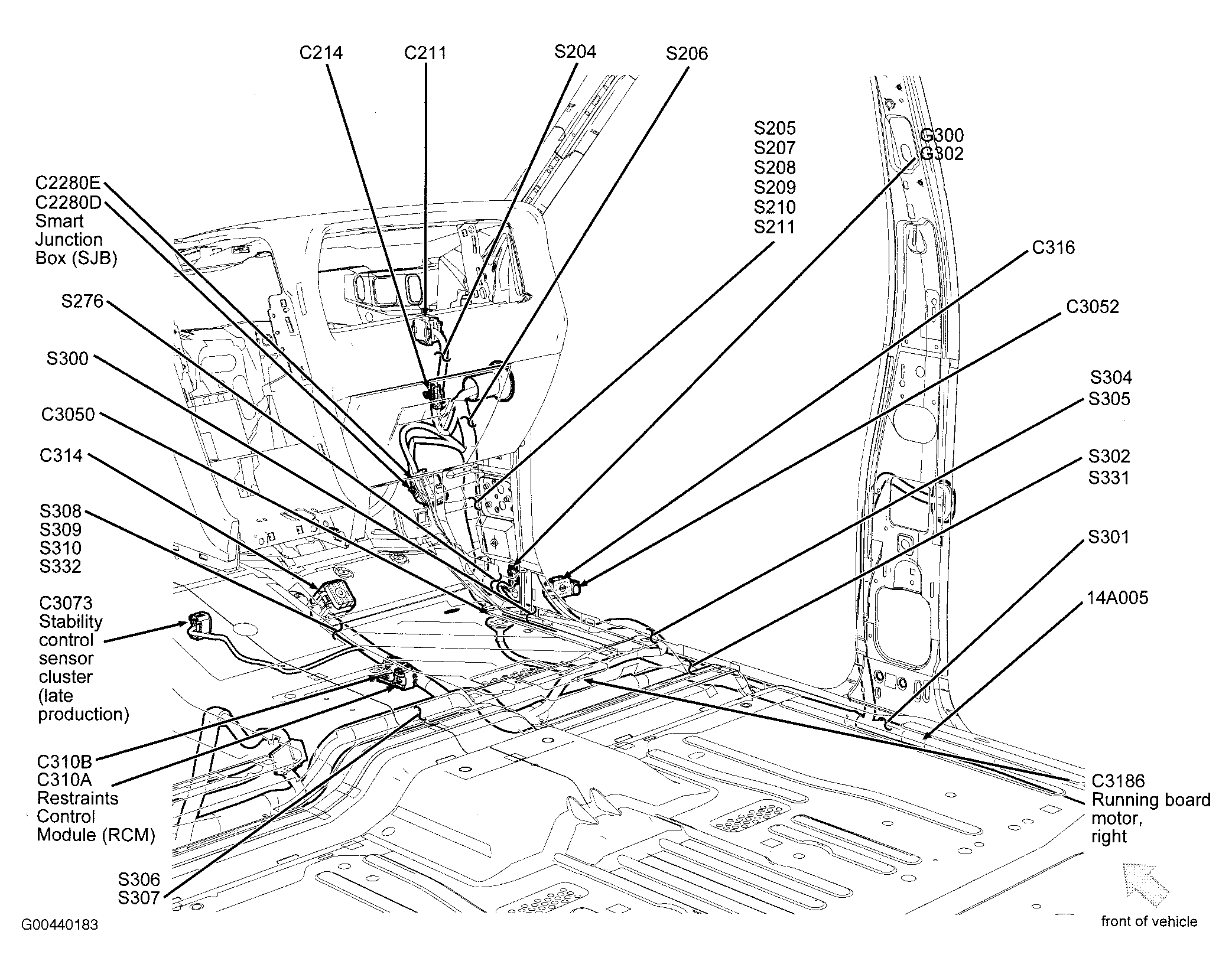

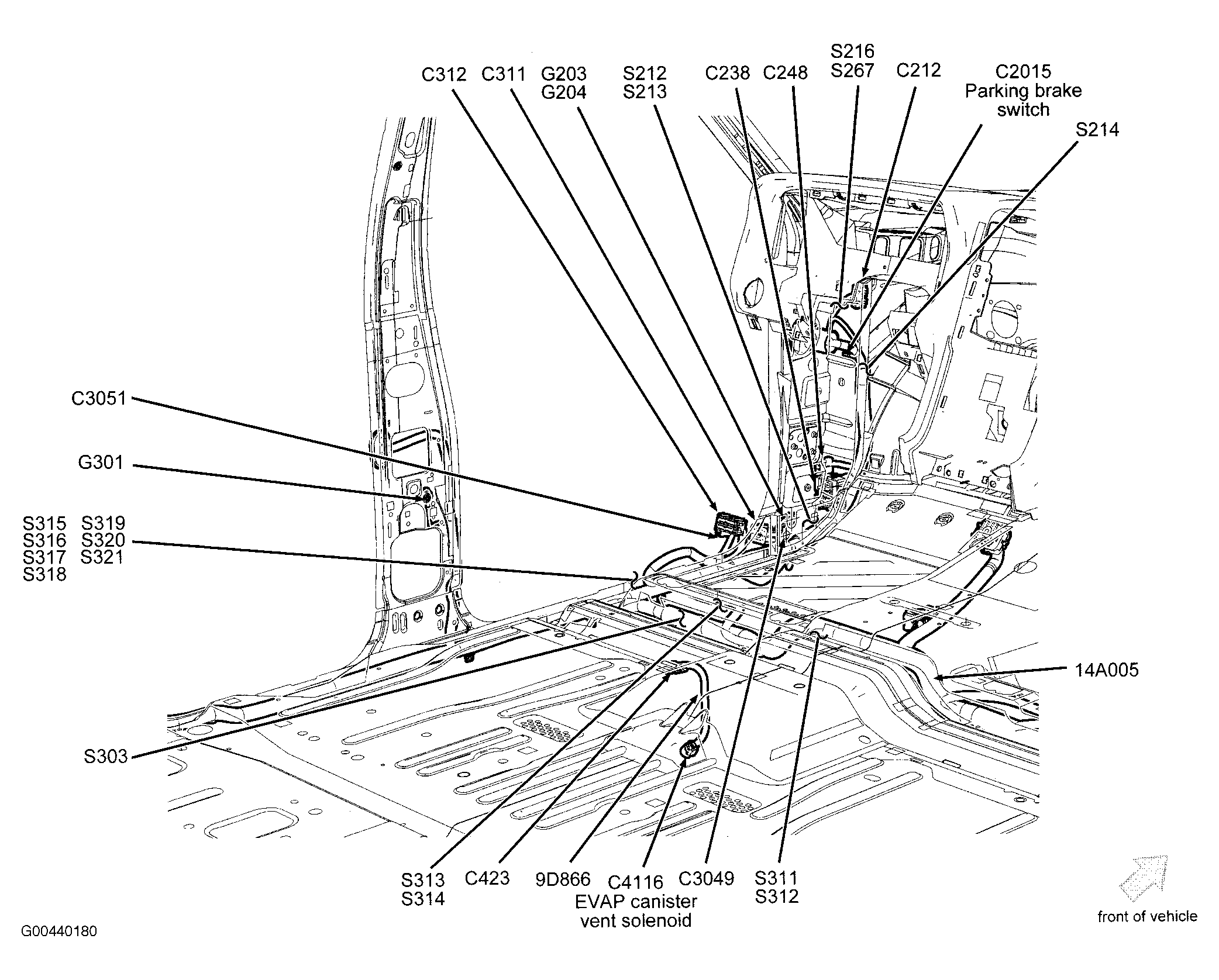

| S149 (6HP26 2WD) | In back-up light switch to rear light feed harness, near breakout to C146. See Figure. |
| S149 (6HP26 4WD) | In back-up light switch to rear light feed harness, near breakout to C146. See Figure. |
| S149 (6R75 2WD) | In back-up light switch to rear light feed harness, near breakout to C146. See Figure. |
| S149 (6R75 4WD) | In back-up light switch to rear light feed harness, near breakout to C146. See Figure. |
| S150 (6HP26 2WD) | In back-up light switch to rear light feed harness, near breakout to C146. See Figure. |
| S150 (6HP26 4WD) | In back-up light switch to rear light feed harness, near breakout to C146. See Figure. |
| S150 (6R75 2WD) | In back-up light switch to rear light feed harness, near breakout to C146. See Figure. |
| S150 (6R75 4WD) | In back-up light switch to rear light feed harness, near breakout to C146. See Figure. |
| S151 (6HP26 2WD) | In back-up light switch to rear light feed harness, near breakout to heated oxygen sensor #12. See Figure. |
| S151 (6HP26 4WD) | In back-up light switch to rear light feed harness, near breakout to heated oxygen sensor #12. See Figure. |
| S151 (6R75 2WD) | In back-up light switch to rear light feed harness, near breakout to heated oxygen sensor #12. See Figure. |
| S151 (6R75 4WD) | In back-up light switch to rear light feed harness, near breakout to heated oxygen sensor #12. See Figure. |
| S152 (6HP26 2WD) | In back-up light switch to rear light feed harness, near breakout to heated oxygen sensor #12. See Figure. |
| S152 (6HP26 4WD) | In back-up light switch to rear light feed harness, near breakout to heated oxygen sensor #12. See Figure. |
| S152 (6R75 2WD) | In back-up light switch to rear light feed harness, near breakout to heated oxygen sensor #12. See Figure. |
| S152 (6R75 4WD) | In back-up light switch to rear light feed harness, near breakout to heated oxygen sensor #12. See Figure. |
| S153 (6HP26 2WD) | In back-up light switch to rear light feed harness, near breakout to 6HP26 automatic transmission. See Figure. |
| S153 (6HP26 4WD) | In back-up light switch to rear light feed harness, near breakout to 6HP26 automatic transmission. See Figure. |
| S153 (6R75 2WD) | In back-up light switch to rear light feed harness, near breakout to 6R75 automatic transmission. See Figure. |
| S153 (6R75 4WD) | In back-up light switch to rear light feed harness, near breakout to 6R75 automatic transmission. See Figure. |
| S154 (Expedition) | In engine control sensor harness, near breakout to powertrain control module. See Figure. |
| S154 (Navigator) | In engine control sensor harness, near breakout to powertrain control module. See Figure. |
| S155 (Expedition) | In engine control sensor harness, near breakout to powertrain control module. See Figure. |
| S155 (Navigator) | In engine control sensor harness, near breakout to powertrain control module. See Figure. |
| S156 (Expedition) | In engine control sensor harness, under battery junction box. See Figure. |
| S156 (Navigator) | In engine control sensor harness, under battery junction box. See Figure. |
| S200 (Expedition) | In engine control sensor harness, near breakout to C211. See Figure. |
| S200 (Navigator) | In engine control sensor harness, near breakout to C211. See Figure. |
| S201 (Expedition) | In engine control sensor harness, near breakout to C211. See Figure. |
| S201 (Navigator) | In engine control sensor harness, near breakout to C211. See Figure. |
| S202 (Expedition) | In engine control sensor harness, near breakout to C211. See Figure. |
| S202 (Navigator) | In engine control sensor harness, near breakout to C211. See Figure. |
| S203 (Expedition) | In engine control sensor harness, in breakout to air suspension module. See Figure. |
| S203 (Navigator) | In engine control sensor harness, in breakout to air suspension module. See Figure. |
| S204 (Expedition) | In body main harness, in breakout to C211. See Figure. |
| S204 (Navigator) | In body main harness, in breakout to C211. See Figure. |
| S205 (Expedition) | In body main harness, near breakout to smart junction box. See Figure. |
| S205 (Navigator) | In body main harness, near breakout to smart junction box. See Figure. |
| S206 (Expedition) | In body main harness, near breakout to C214. See Figure. |
| S206 (Navigator) | In body main harness, near breakout to C211. See Figure. |
| S207 (Expedition) | In body main harness, near breakout to smart junction box. See Figure. |
| S207 (Navigator) | In body main harness, near breakout to smart junction box. See Figure. |
| S208 (Expedition) | In body main harness, near breakout to smart junction box. See Figure. |
| S208 (Navigator) | In body main harness, near breakout to smart junction box. See Figure. |
| S209 (Expedition) | In body main harness, near breakout to smart junction box. See Figure. |
| S209 (Navigator) | In body main harness, near breakout to smart junction box. See Figure. |
| S210 (Expedition) | In body main harness, near breakout to smart junction box. See Figure. |
| S210 (Navigator) | In body main harness, near breakout to smart junction box. See Figure. |
| S211 (Expedition) | In body main harness, near breakout to smart junction box. See Figure. |
| S211 (Navigator) | In body main harness, near breakout to smart junction box. See Figure. |
| S212 (Expedition) | In body main harness, near breakout to G203. See Figure. |
| S212 (Navigator) | In body main harness, near breakout to G203. See Figure. |
| S213 (Expedition) | In body main harness, near breakout to G203. See Figure. |
| S213 (Navigator) | In body main harness, near breakout to G203. See Figure. |
| S214 (Expedition) | In body main harness, near breakout to parking brake switch. See Figure. |
| S214 (Navigator) | In body main harness, near breakout to C238. See Figure. |
| S215 | In body main harness, near breakout to left side exterior rearview mirror. See Figure. |
| S216 | In body main harness, near breakout to C212. See Figure. |
| S217 | In front heater blower motor harness, near breakout to C299. See Figure. |
| S218 | In front heater blower motor harness, near breakout to C237. See Figure. |

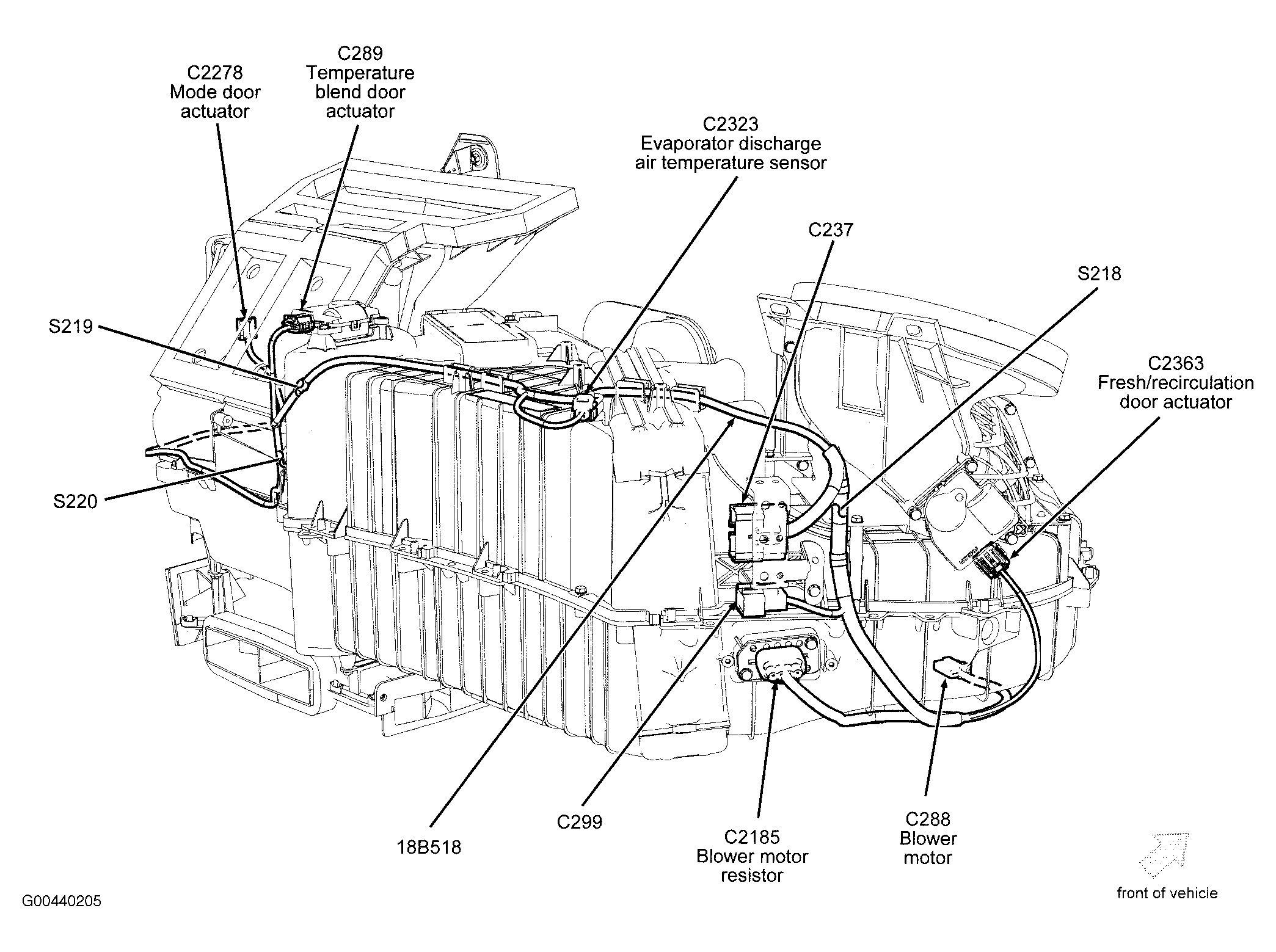

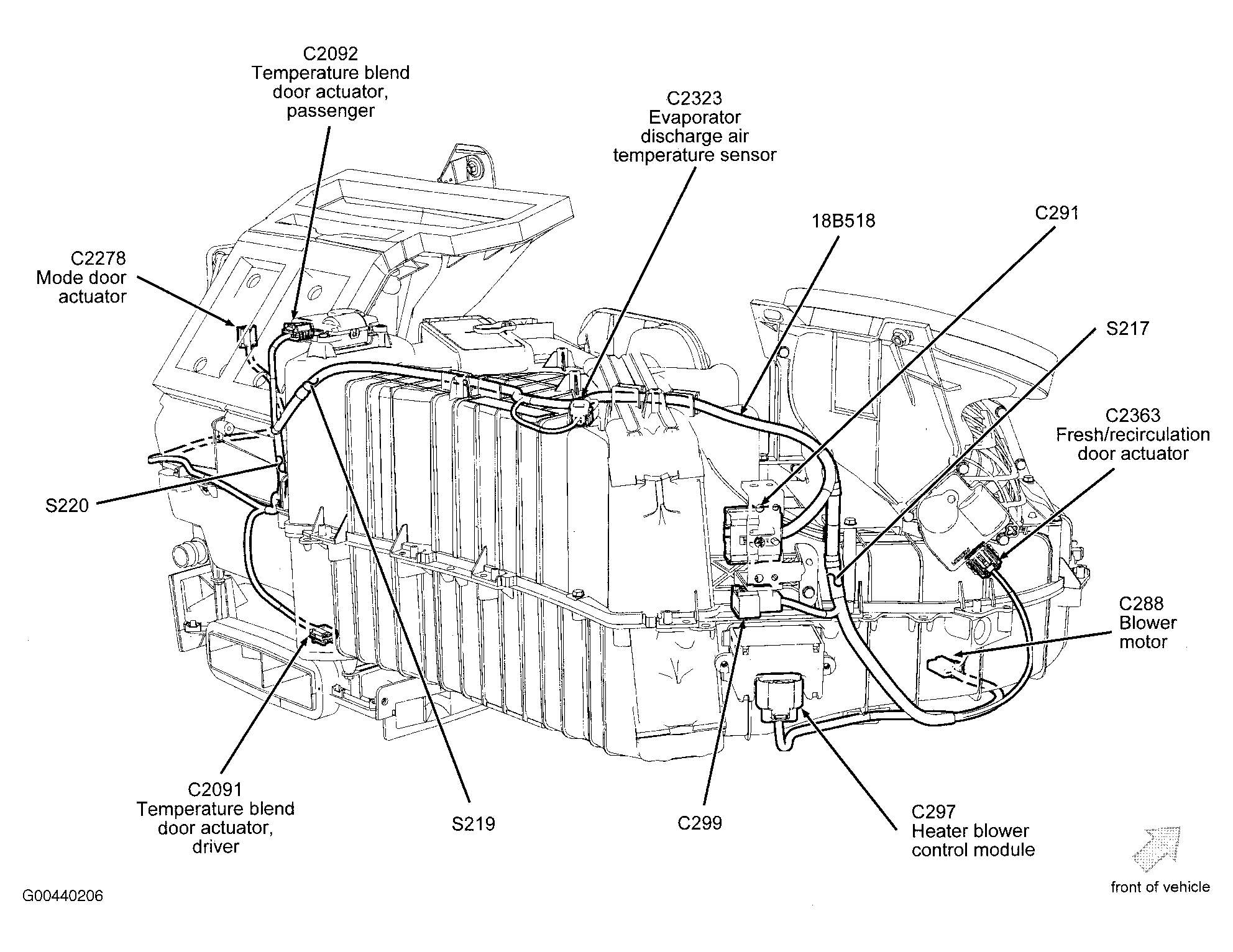

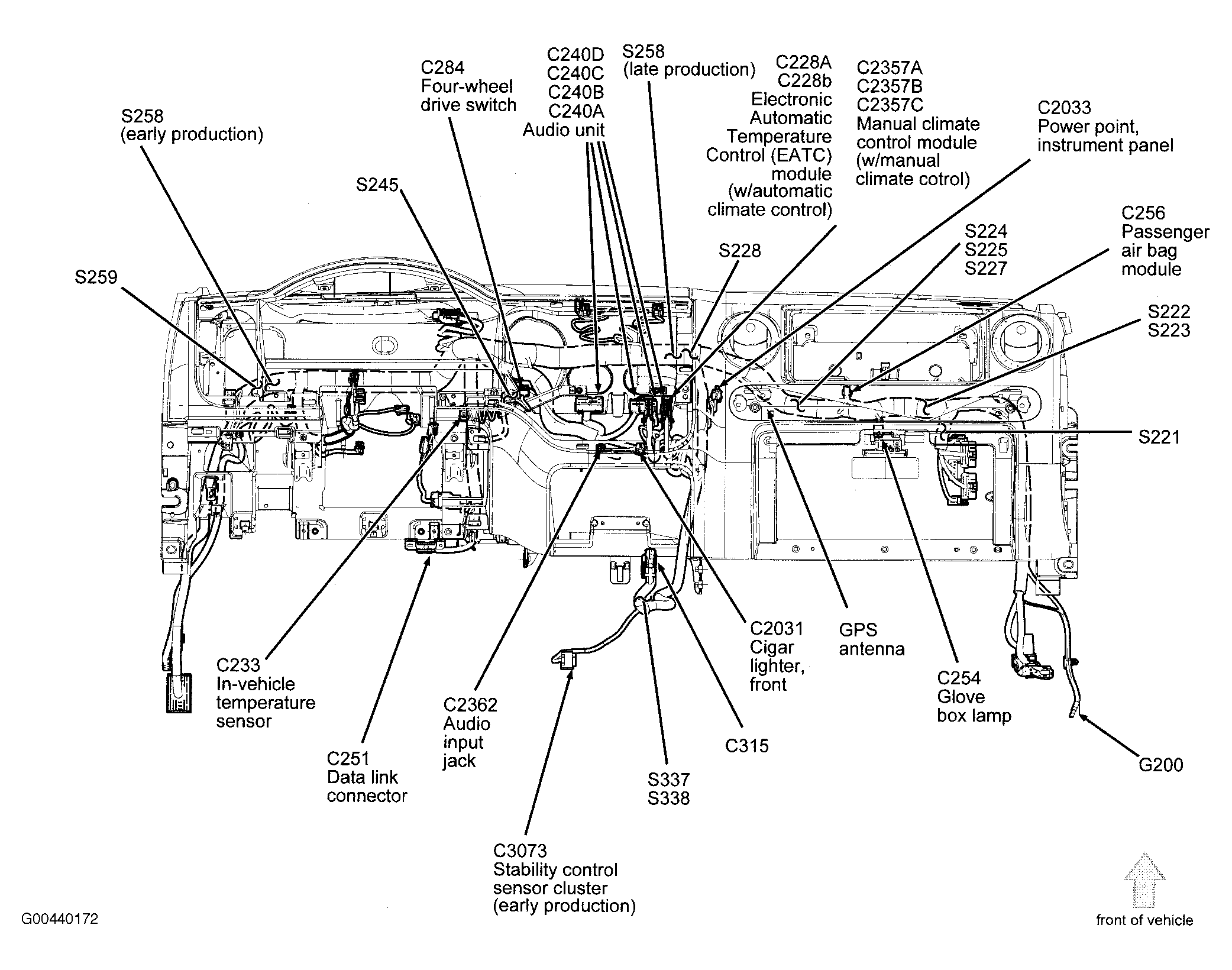

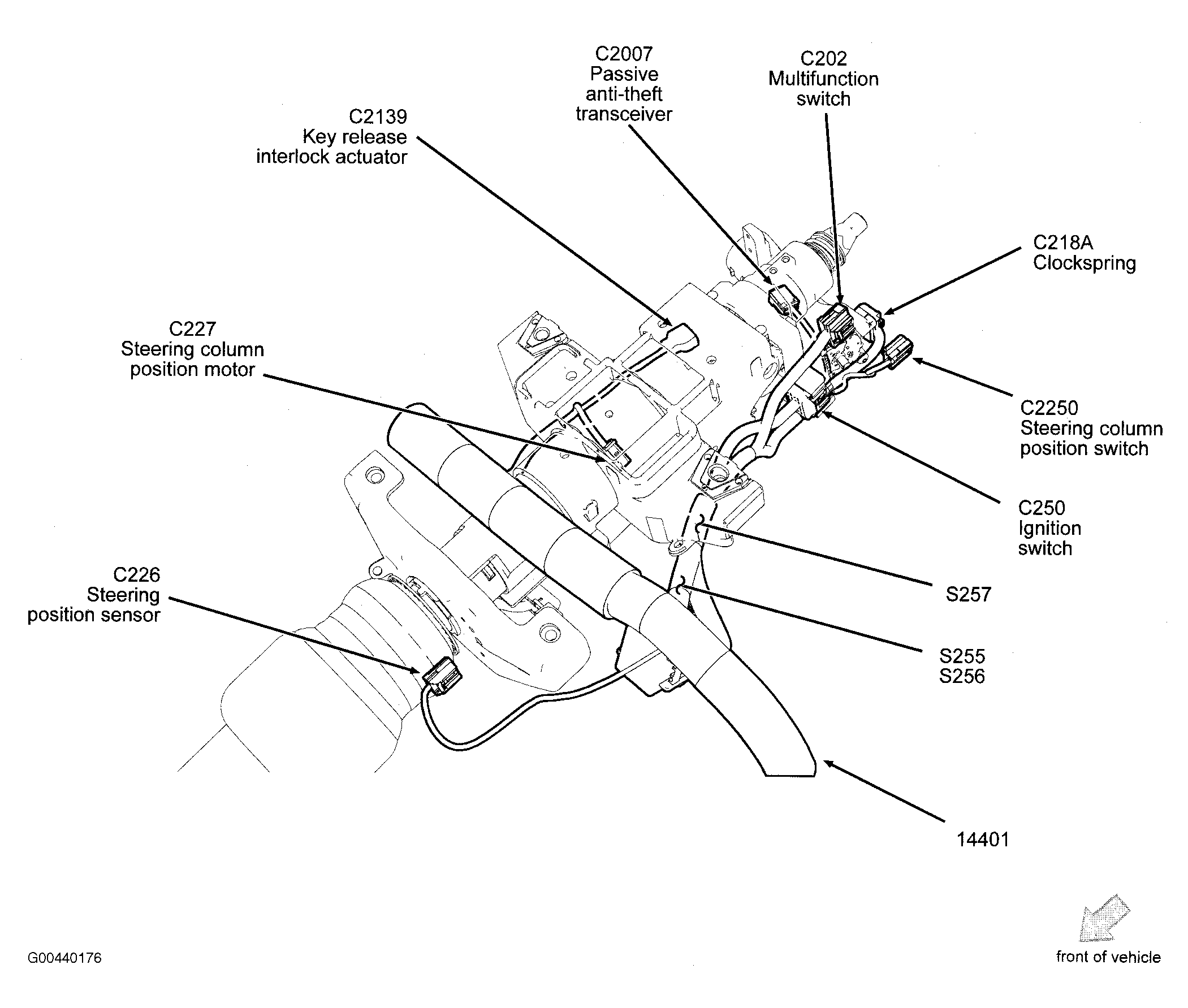

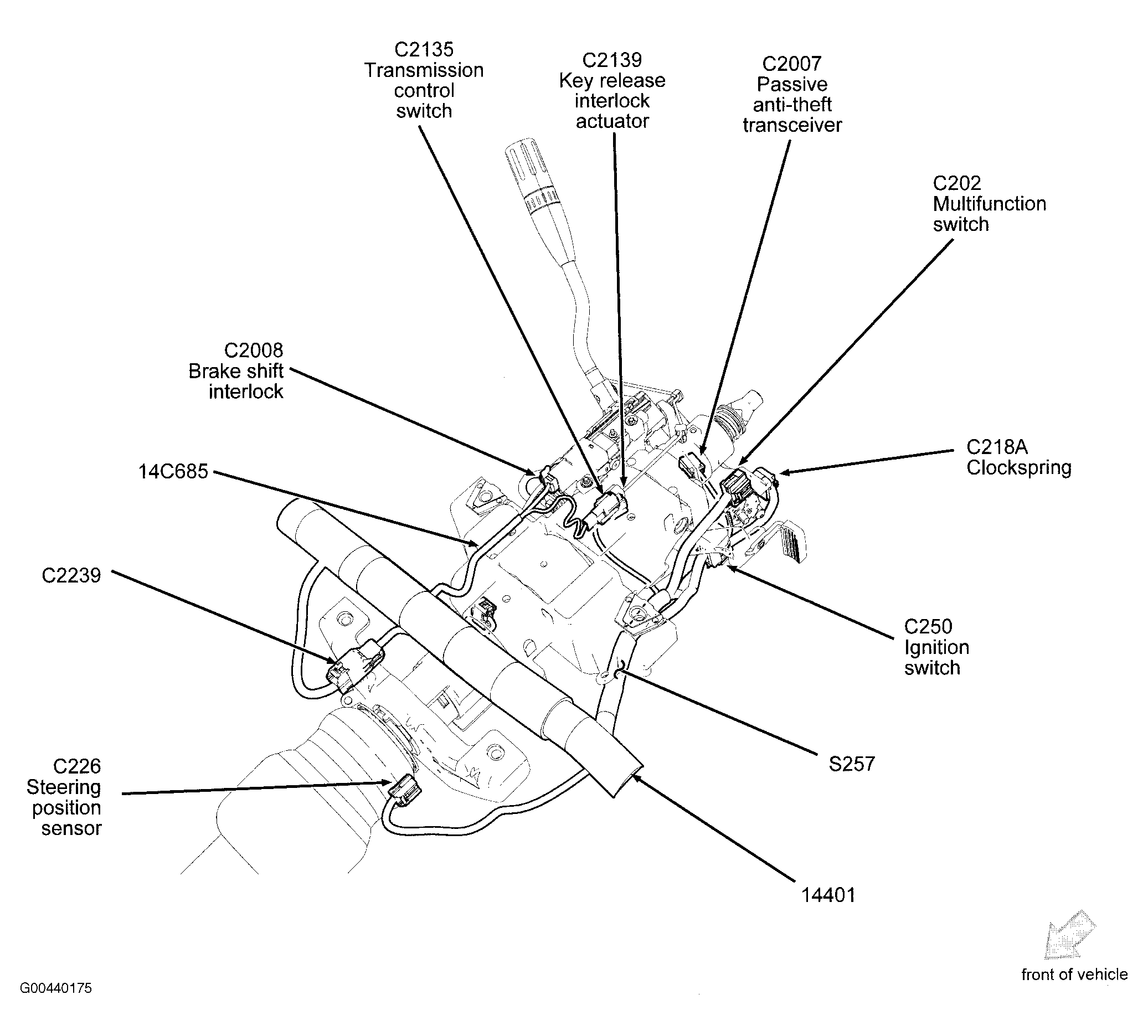

| S219 (Auto A/C) | In front heater blower motor harness, near breakout to passenger temperature blend door actuator. See Figure. |
| S219 (Manual A/C) | In front heater blower motor harness, near breakout to temperature blend door actuator. See Figure. |
| S220 (Auto A/C) | In front heater blower motor harness, near breakout to driver temperature blend door actuator. See Figure. |
| S220 (Manual A/C) | In front heater blower motor harness, in breakout to mode door actuator. See Figure. |
| S221 (Expedition) | In main harness, near breakout to C210. See Figure. |
| S221 (Navigator) | In main harness, near breakout to C210. See Figure. |
| S222 (Expedition) | In main harness, near breakout to glove box light. See Figure. |
| S222 (Navigator) | In main harness, near breakout to glove box light. See Figure. |
| S223 (Expedition) | In main harness, near breakout to glove box light. See Figure. |
| S223 (Navigator) | In main harness, near breakout to glove box light. See Figure. |
| S224 (Expedition) | In main harness, near breakout to passenger air bag module. See Figure. |
| S224 (Navigator) | In main harness, near breakout to passenger air bag module. See Figure. |
| S225 (Expedition) | In main harness, near breakout to passenger air bag module. See Figure. |
| S225 (Navigator) | In main harness, near breakout to passenger air bag module. See Figure. |
| S226 | In main harness, near breakout to message center switch. See Figure. |
| S227 (Expedition) | In main harness, near breakout to passenger air bag module. See Figure. |
| S227 (Navigator) | In main harness, near breakout to passenger air bag module. See Figure. |
| S228 (Expedition) | In main harness, near breakout to instrument panel power point. See Figure. |
| S228 (Navigator) | In main harness, near breakout to clock. See Figure. |
| S231 (Expedition) | In main harness, near breakout to audio unit. See Figure. |
| S231 (Navigator) | In main harness, near breakout to sunload sensor. See Figure. |
| S232 (Expedition) | In main harness, near breakout to sunload sensor. See Figure. |
| S232 (Navigator) | In main harness, near breakout to clock. See Figure. |
| S233 | In main harness, near breakout to instrument cluster. See Figure. |
| S234 (Expedition) | In main harness, near breakout to audio unit. See Figure. |
| S234 (Navigator) | In main harness, near breakout to sunload sensor. See Figure. |
| S235 (Expedition) | In main harness, near breakout to audio unit. See Figure. |
| S235 (Navigator) | In main harness, near breakout to sunload sensor. See Figure. |
| S236 | In main harness, near breakout to sunload sensor. See Figure. |
| S237 | In main harness, near breakout to THX amplifier. See Figure. |
| S238 | In main harness, near breakout to THX amplifier. See Figure. |
| S239 | In main harness, near breakout to THX amplifier. See Figure. |
| S240 | In main harness, near breakout to THX amplifier. See Figure. |
| S241 (Expedition) | In main harness, near breakout to audio unit. See Figure. |
| S241 (Navigator) | In main harness, near breakout to clock. See Figure. |
| S242 (Expedition) | In main harness, near breakout to audio unit. See Figure. |
| S242 (Navigator) | In main harness, near breakout to clock. See Figure. |
| S243 | In main harness, near breakout to audio unit. See Figure. |
| S244 | In main harness, near breakout to audio unit. See Figure. |
| S245 (Expedition) | In main harness, near breakout to four-wheel drive switch. See Figure. |
| S245 (Navigator) | In main harness, near breakout to in-vehicle temperature/humidity sensor. See Figure. |
| S246 | In main harness, near breakout to audio unit. See Figure. |
| S247 | In main harness, near breakout to audio unit. See Figure. |
| S248 | In main harness, near breakout to instrument cluster. See Figure. |
| S249 | In main harness, near breakout to instrument cluster. See Figure. |
| S250 (Expedition) | In main harness, near breakout to instrument cluster. See Figure. |
| S250 (Navigator) | In main harness, near breakout to instrument cluster. See Figure. |
| S251 (Expedition) | In main harness, near breakout to instrument cluster. See Figure. |
| S251 (Navigator) | In main harness, near breakout to instrument cluster. See Figure. |
| S252 (Expedition) | In main harness, near breakout to instrument cluster. See Figure. |
| S252 (Navigator) | In main harness, near breakout to instrument cluster. See Figure. |
| S253 (Expedition) | In main harness, near breakout to instrument cluster. See Figure. |
| S253 (Navigator) | In main harness, near breakout to instrument cluster. See Figure. |
| S254 (Expedition) | In main harness, near breakout to instrument cluster. See Figure. |
| S254 (Navigator) | In main harness, near breakout to instrument cluster. See Figure. |
| S255 | In main harness, near breakout to auxiliary relay box 1. See Figure. |
| S256 | In main harness, near breakout to auxiliary relay box 1. See Figure. |
| S257 (Expedition) | In main harness, near breakout to ignition switch. See Figure. |
| S257 (Navigator) | In main harness, near breakout to auxiliary relay box 1. See Figure. |
| S258 (Expedition) (Early Production) | In main harness, near breakout to C238. See Figure. |
| S258 (Expedition) (Late Production) | In main harness, near breakout to sunload sensor. See Figure. |
| S258 (Navigator) (Early Production) | In main harness, near breakout to clock. See Figure. |
| S258 (Navigator) (Late Production) | In main harness, near breakout to clock. See Figure. |
| S259 (Expedition) | In main harness, near breakout to C238. See Figure. |
| S259 (Navigator) | In main harness, near breakout to C238. See Figure. |
| S260 (Expedition) | In main harness, near breakout to headlight switch. See Figure. |
| S260 (Navigator) | In main harness, near breakout to headlight switch. See Figure. |
| S261 (Expedition) | In main harness, near breakout to C238. See Figure. |
| S261 (Navigator) | In main harness, near breakout to C238. See Figure. |
| S262 | In main harness, near breakout to C238. See Figure. |
| S263 | In main harness, near breakout to C238. See Figure. |
| S264 | In main harness, near breakout to C238. See Figure. |
| S265 | In main harness, near breakout to C238. See Figure. |
| S266 | In main harness, near breakout to C238. See Figure. |
| S267 | In body main harness, near breakout to C212. See Figure. |
| S268 | In body main harness, near breakout to G203. See Figure. |
| S269 | In body main harness, near breakout to G203. See Figure. |
| S270 | In body main harness, near breakout to G203. See Figure. |
| S271 | In body main harness, near breakout to G203. See Figure. |
| S272 | In body main harness, near breakout to keyless entry keypad. See Figure. |
| S273 | In body main harness, in breakout to C238. See Figure. |
| S276 (Expedition) | In body main harness, in breakout to G300. See Figure. |
| S276 (Navigator) | In body main harness, in breakout to G300. See Figure. |

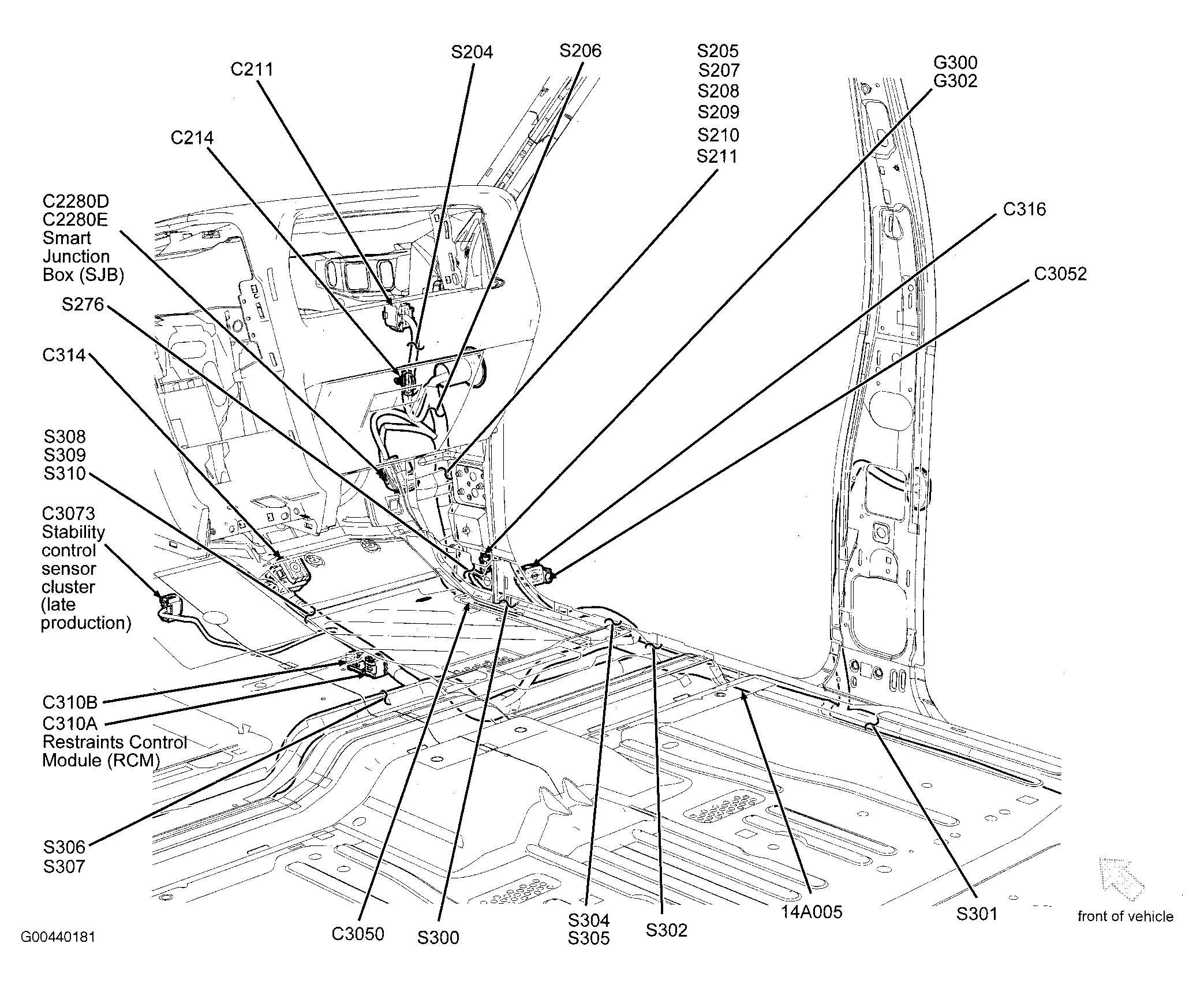

| S300 (Expedition) | In body main harness, near breakout to G300. See Figure. |
| S300 (Navigator) | In body main harness, near breakout to G300. See Figure. |
| S301 (Expedition) | In body main harness, near breakout to C800. See Figure. |
| S301 (Navigator) | In body main harness, near breakout to G300. See Figure. |
| S302 (Expedition) | In body main harness, near breakout to G300. See Figure. |
| S302 (Navigator) | In body main harness, near breakout to G300. See Figure. |
| S303 (Expedition) | In body main harness, near breakout to C3051. See Figure. |
| S303 (Navigator) | In body main harness, near breakout to C3051. See Figure. |
| S304 (Expedition) | In body main harness, near breakout to C3050. See Figure. |
| S304 (Navigator) | In body main harness, near breakout to G300. See Figure. |
| S305 (Expedition) | In body main harness, near breakout to C3050. See Figure. |
| S305 (Navigator) | In body main harness, near breakout to G300. See Figure. |
| S306 (Expedition) | In body main harness, near breakout to C314. See Figure. |
| S306 (Navigator) | In body main harness, near breakout to C314. See Figure. |
| S307 (Expedition) | In body main harness, near breakout to C314. See Figure. |
| S307 (Navigator) | In body main harness, near breakout to C314. See Figure. |
| S308 (Expedition) | In body main harness, near breakout to C314. See Figure. |
| S308 (Navigator) | In body main harness, near breakout to C314. See Figure. |
| S309 (Expedition) | In body main harness, near breakout to C314. See Figure. |
| S309 (Navigator) | In body main harness, near breakout to C314. See Figure. |
| S310 (Expedition) | In body main harness, near breakout to C314. See Figure. |
| S310 (Navigator) | In body main harness, near breakout to C314. See Figure. |
| S311 (Expedition) | In body main harness, near breakout to C3051. See Figure. |
| S311 (Navigator) | In body main harness, near breakout to C3051. See Figure. |
| S312 (Expedition) | In body main harness, near breakout to C3051. See Figure. |
| S312 (Navigator) | In body main harness, near breakout to C3051. See Figure. |
| S313 (Expedition) | In body main harness, near breakout to C3051. See Figure. |
| S313 (Navigator) | In body main harness, near breakout to C3051. See Figure. |
| S314 (Expedition) | In body main harness, near breakout to C3051. See Figure. |
| S314 (Navigator) | In body main harness, near breakout to C3051. See Figure. |
| S315 (Expedition) | In body main harness, near breakout to G301. See Figure. |
| S315 (Navigator) | In body main harness, near breakout to G301. See Figure. |
| S316 (Expedition) | In body main harness, near breakout to G301. See Figure. |
| S316 (Navigator) | In body main harness, near breakout to G301. See Figure. |
| S317 (Expedition) | In body main harness, near breakout to G301. See Figure. |
| S317 (Navigator) | In body main harness, near breakout to G301. See Figure. |
| S318 (Expedition) | In body main harness, near breakout to G301. See Figure. |
| S318 (Navigator) | In body main harness, near breakout to G301. See Figure. |
| S319 (Expedition) | In body main harness, near breakout to G301. See Figure. |
| S319 (Navigator) | In body main harness, near breakout to G301. See Figure. |
| S320 (Expedition) | In body main harness, near breakout to G301. See Figure. |
| S320 (Navigator) | In body main harness, near breakout to G301. See Figure. |
| S321 (Expedition) | In body main harness, near breakout to G301. See Figure. |
| S321 (Navigator) | In body main harness, near breakout to G301. See Figure. |
| S322 | In body main harness, near breakout to G301. See Figure. |

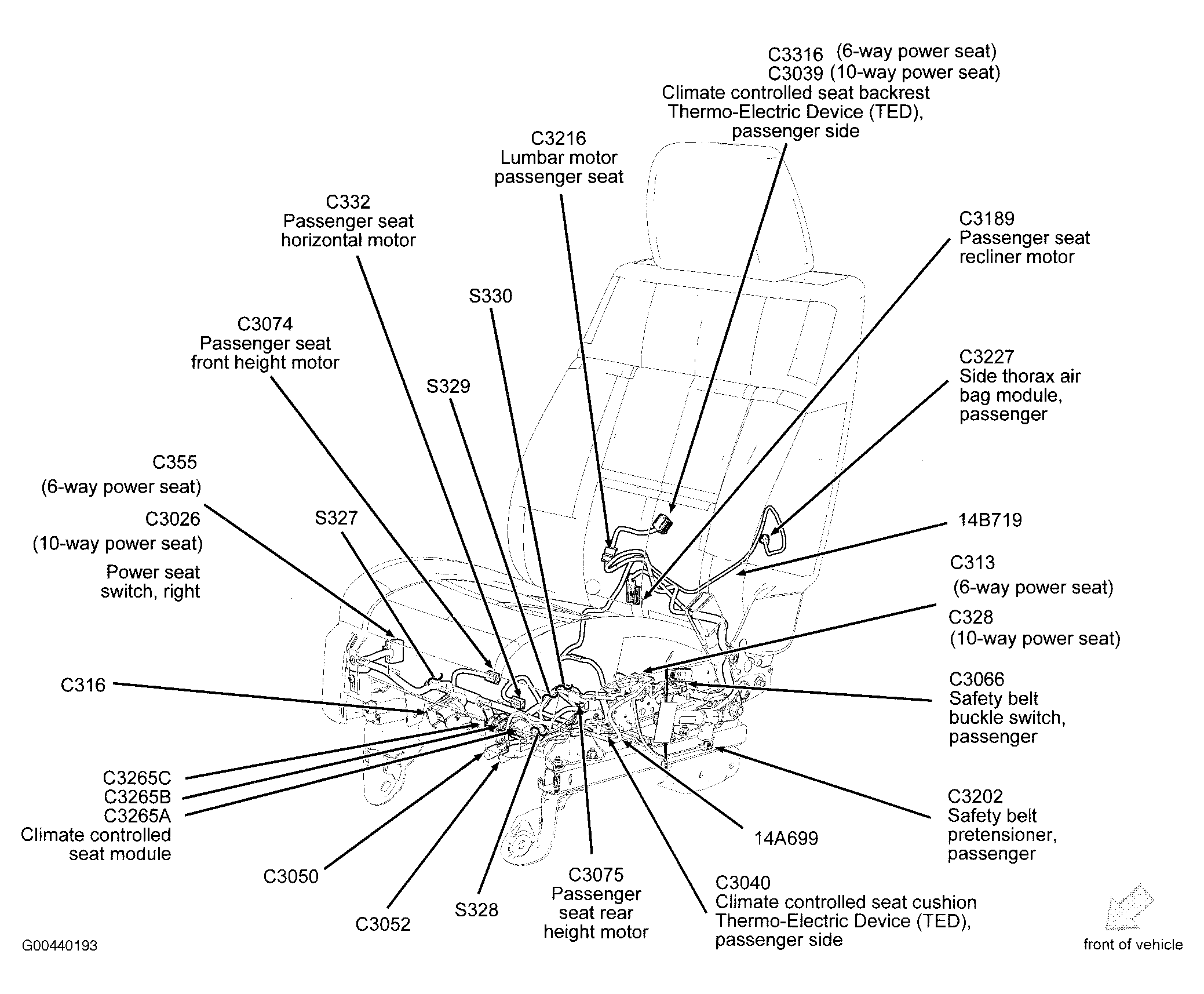

| S323 | In power seats harness, near breakout to driver seat rear height motor. See Figure. |
| S324 | In power seats harness, near breakout to C327. See Figure. |
| S325 | In power seats harness, near breakout to C327. See Figure. |
| S326 | In power seats harness, near breakout to driver seat rear height motor. See Figure. |
| S327 | In power seats harness, near breakout to C316. See Figure. |
| S328 | In power seats harness, near breakout to climate controlled seat module. See Figure. |
| S329 | In power seats harness, near breakout to passenger side climate controlled seat cushion thermo-electric device. See Figure. |
| S330 | N power seats harness, near breakout to passenger side climate controlled seat cushion thermo-electric device. See Figure. |
| S331 | In body main harness, near breakout to G300. See Figure. |
| S332 | In body main harness, in breakout to C314. See Figure. |
| S333 | In body main harness, near breakout to G301. See Figure. |
| S334 | In body main harness, near breakout to G301. See Figure. |
| S335 | In body main harness, near breakout to G301. See Figure. |
| S336 | In body main harness, near breakout to G301. See Figure. |
| S337 (Expedition) | In main harness, near breakout to C315. See Figure. |
| S337 (Navigator) | In main harness, near breakout to C315. See Figure. |
| S337 (Navigator) (W/THX) | In main harness, near breakout to THX amplifier. See Figure. |
| S338 (Expedition) | In main harness, near breakout to C315. See Figure. |
| S338 (Navigator) | In main harness, near breakout to C315. See Figure. |
| S338 (Navigator) (W/THX) | In main harness, near breakout to THX amplifier. See Figure. |

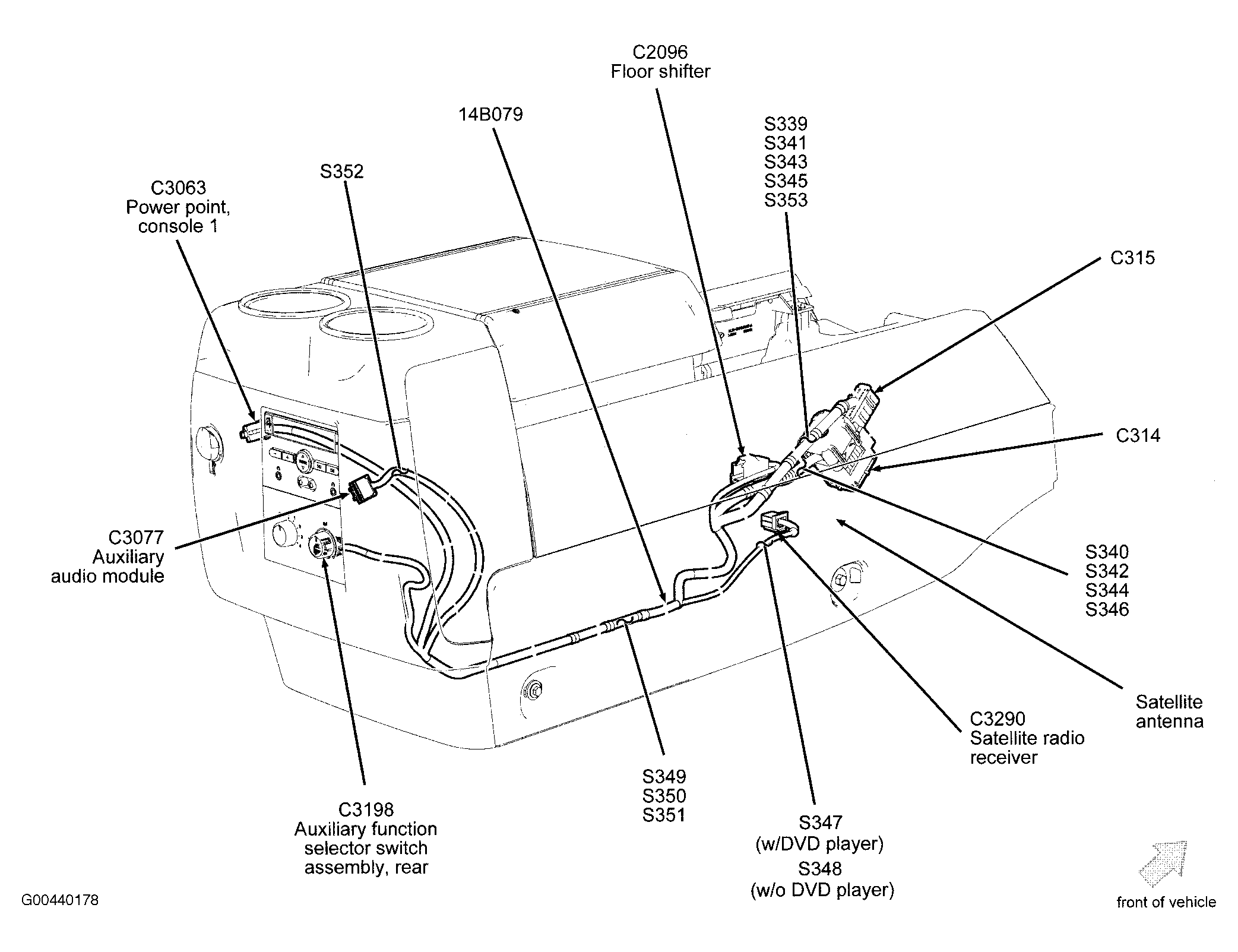

| S339 (Expedition) | In console panel harness, in breakout to C315. See Figure. |
| S339 (Navigator) | In console panel harness, in breakout to C315. See Figure. |
| S340 (Expedition) | In console panel harness, in breakout to C314. See Figure. |
| S340 (Navigator) | In console panel harness, in breakout to C314. See Figure. |
| S341 (Expedition) | In console panel harness, in breakout to C315. See Figure. |
| S341 (Navigator) | In console panel harness, in breakout to C315. See Figure. |
| S342 (Expedition) | In console panel harness, in breakout to C314. See Figure. |
| S342 (Navigator) | In console panel harness, in breakout to C314. See Figure. |
| S343 (Expedition) | In console panel harness, in breakout to C315. See Figure. |
| S343 (Navigator) | In console panel harness, in breakout to C315. See Figure. |
| S344 (Expedition) | In console panel harness, in breakout to C314. See Figure. |
| S344 (Navigator) | In console panel harness, in breakout to C314. See Figure. |
| S345 (Expedition) | In console panel harness, in breakout to C315. See Figure. |
| S345 (Navigator) | In console panel harness, in breakout to C315. See Figure. |
| S346 (Expedition) | In console panel harness, in breakout to C314. See Figure. |
| S346 (Navigator) | In console panel harness, in breakout to C314. See Figure. |
| S347 (Expedition) | In console panel harness, in breakout to satellite radio receiver. See Figure. |
| S347 (Navigator) | In console panel harness, in breakout to satellite radio receiver. See Figure. |
| S348 (Expedition) | In console panel harness, in breakout to satellite radio receiver. See Figure. |
| S348 (Navigator) | In console panel harness, in breakout to satellite radio receiver. See Figure. |
| S349 (Expedition) | In console panel harness, near breakout to satellite radio receiver. See Figure. |
| S349 (Navigator) | In console panel harness, near breakout to satellite radio receiver. See Figure. |
| S350 (Expedition) | In console panel harness, near breakout to satellite radio receiver. See Figure. |
| S350 (Navigator) | In console panel harness, near breakout to satellite radio receiver. See Figure. |
| S351 (Expedition) | In console panel harness, near breakout to satellite radio receiver. See Figure. |
| S351 (Navigator) | In console panel harness, near breakout to satellite radio receiver. See Figure. |
| S352 (Expedition) | In console panel harness, in breakout to auxiliary audio module. See Figure. |
| S352 (Navigator) | In console panel harness, in breakout to auxiliary audio module. See Figure. |
| S353 | In console panel harness, in breakout to C315. See Figure. |
| S354 | In console panel harness, in breakout to C314. See Figure. |

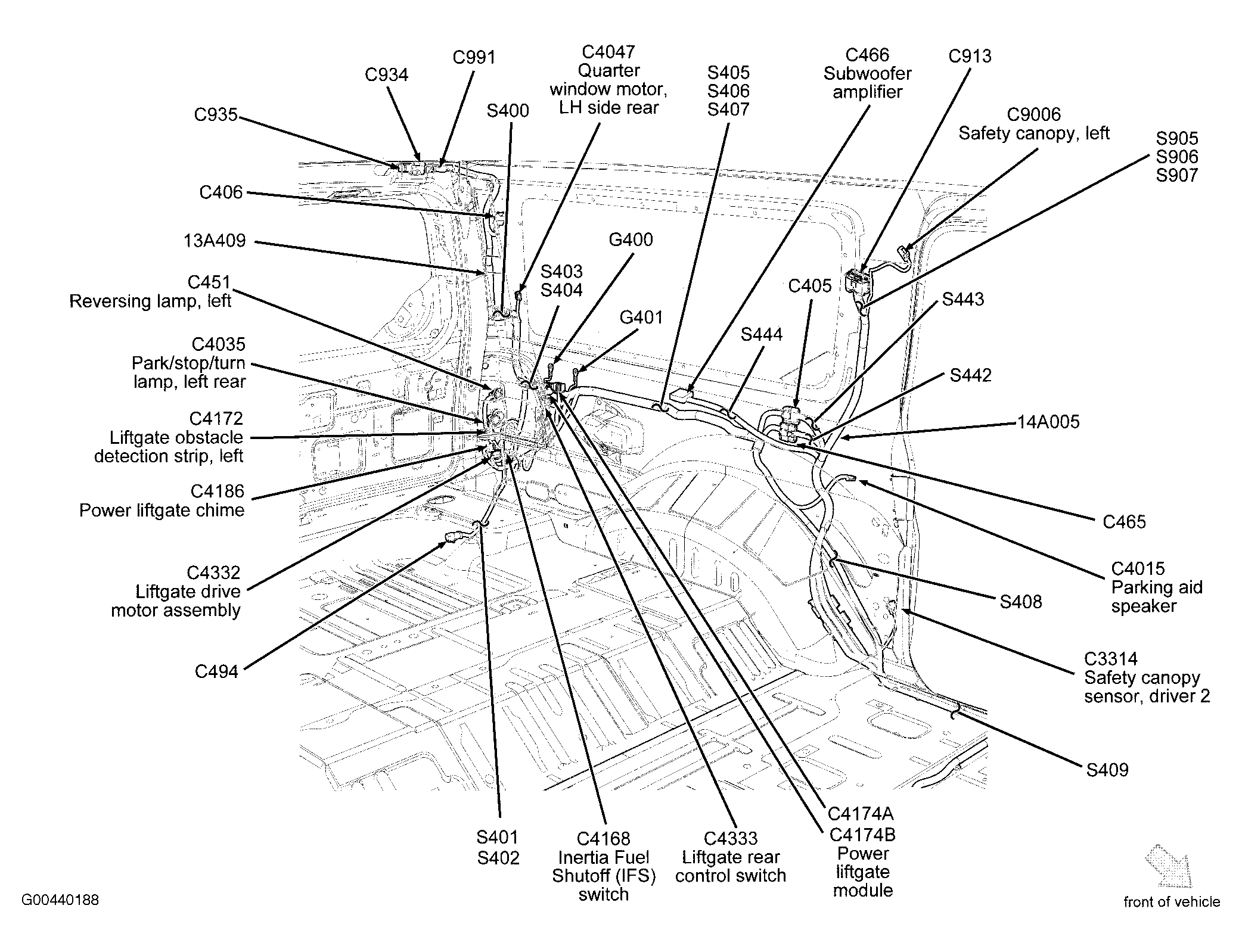

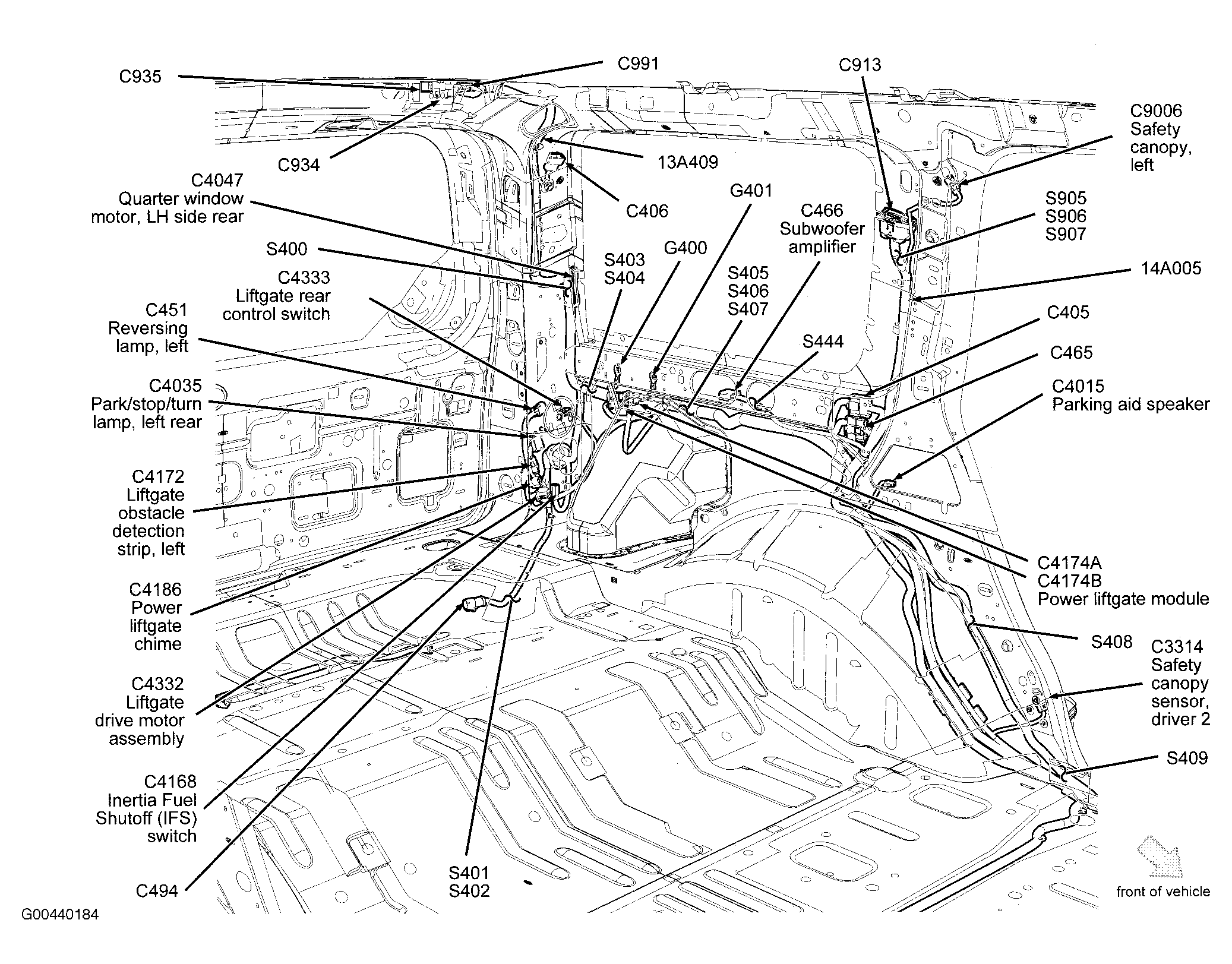

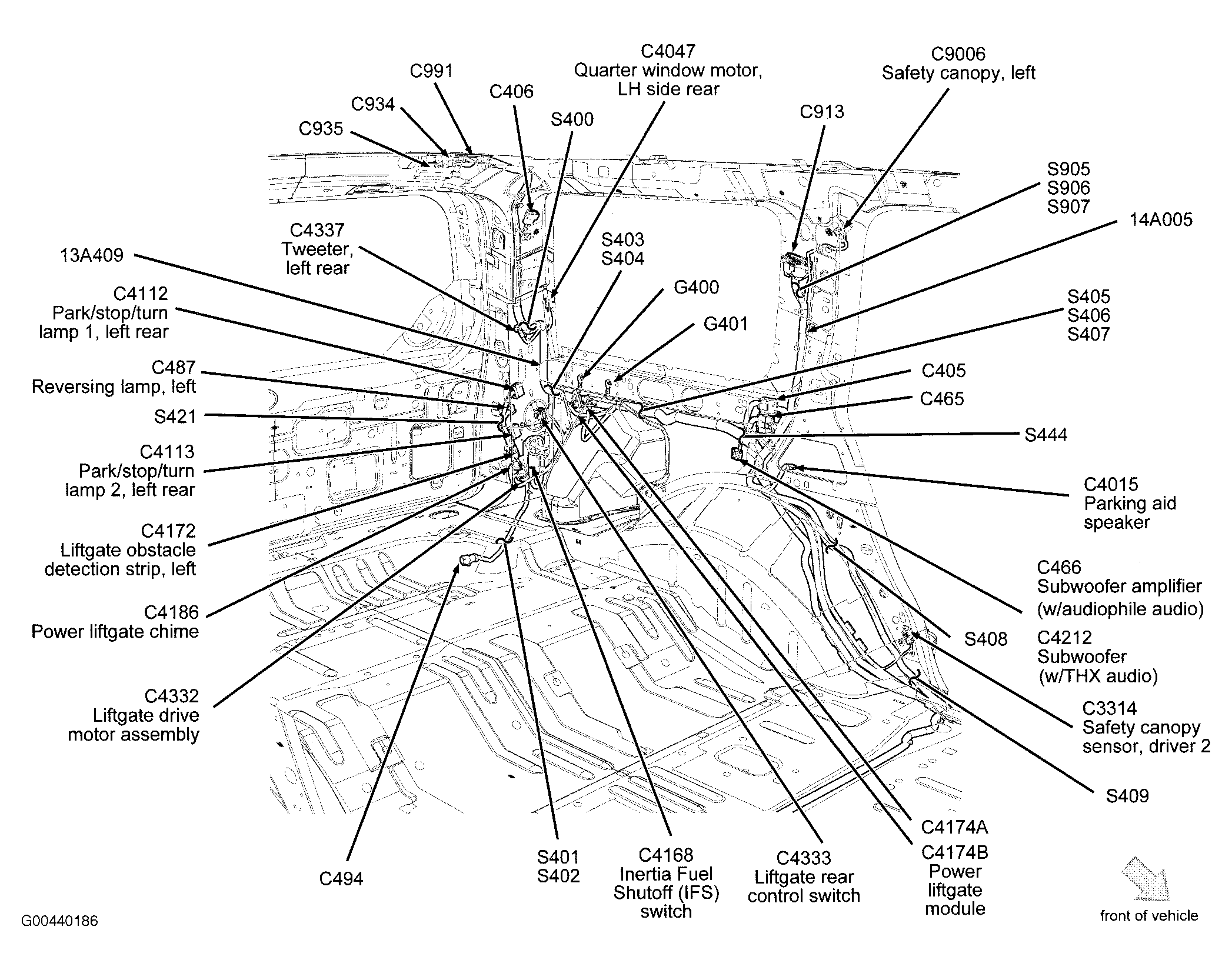

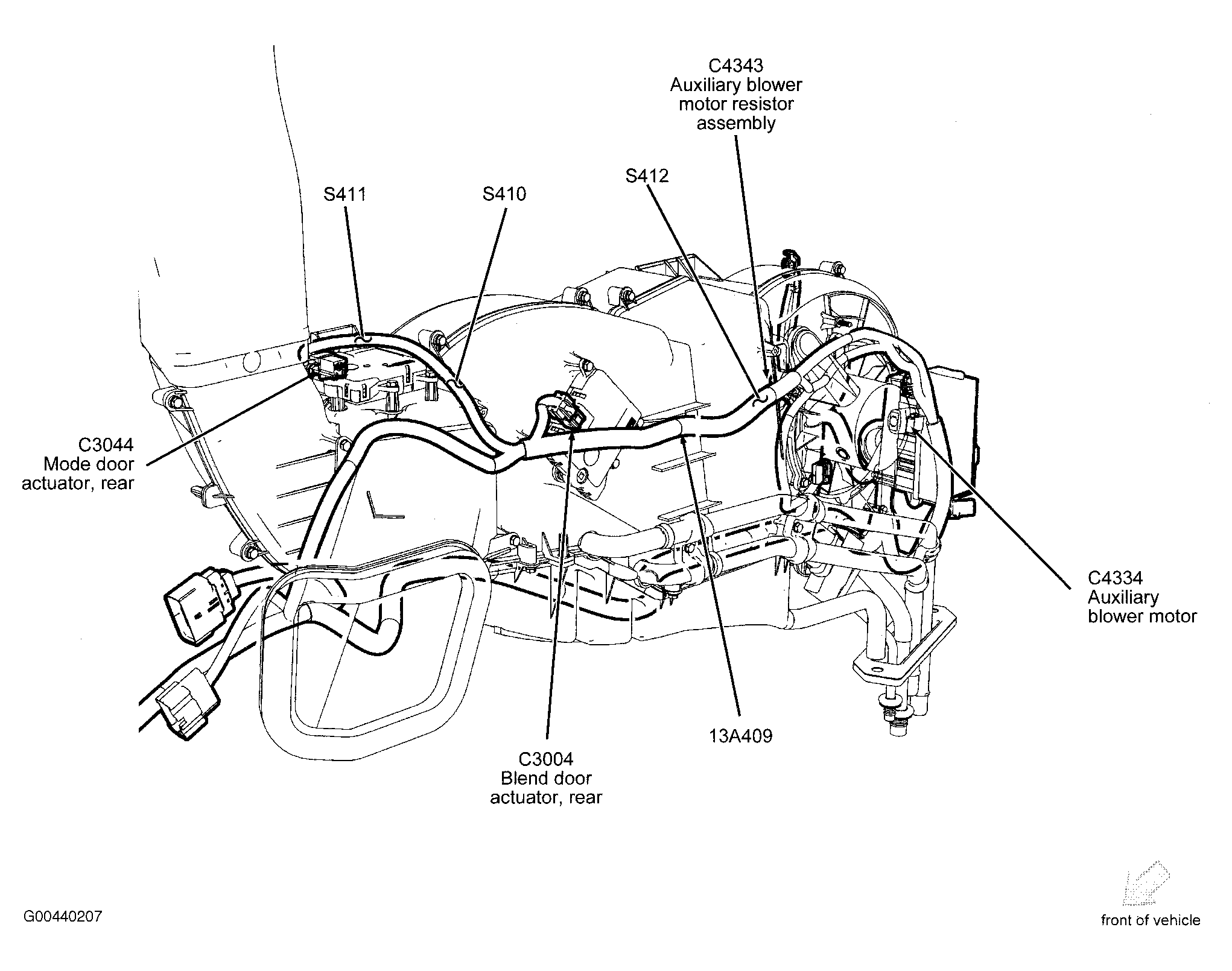

| S400 (Expedition) | In rear light connector harness, near breakout to left rear quarter window motor. See Figure. |
| S400 (Expedition-EL & Navigator-L) | In rear light connector harness, near breakout to left rear quarter window motor. See Figure. |
| S400 (Navigator) | In rear light connector harness, near breakout to left rear quarter window motor. See Figure. |
| S401 (Expedition) | In rear light connector harness, in breakout to C494. See Figure. |
| S401 (Expedition-EL & Navigator-L) | In rear light connector harness, in breakout to C494. See Figure. |
| S401 (Navigator) | In rear light connector harness, in breakout to C494. See Figure. |
| S402 (Expedition) | In rear light connector harness, in breakout to C494. See Figure. |
| S402 (Expedition-EL & Navigator-L) | In rear light connector harness, in breakout to C494. See Figure. |
| S402 (Navigator) | In rear light connector harness, in breakout to C494. See Figure. |
| S403 (Expedition) | In rear light connector harness, near breakout to G400. See Figure. |
| S403 (Expedition-EL & Navigator-L) | In rear light connector harness, near breakout to G400. See Figure. |
| S403 (Navigator) | In rear light connector harness, near breakout to G400. See Figure. |
| S404 (Expedition) | In rear light connector harness, near breakout to G400. See Figure. |
| S404 (Expedition-EL & Navigator-L) | In rear light connector harness, near breakout to G400. See Figure. |
| S404 (Navigator) | In rear light connector harness, near breakout to G400. See Figure. |
| S405 (Expedition) | In rear light connector harness, near breakout to G401. See Figure. |
| S405 (Expedition-EL & Navigator-L) | In rear light connector harness, near breakout to C405. See Figure. |
| S405 (Navigator) | In rear light connector harness, near breakout to power liftgate module. See Figure. |
| S406 (Expedition) | In rear light connector harness, near breakout to G401. See Figure. |
| S406 (Expedition-EL & Navigator-L) | In rear light connector harness, near breakout to C405. See Figure. |
| S406 (Navigator) | In rear light connector harness, near breakout to power liftgate module. See Figure. |
| S407 (Expedition) | In rear light connector harness, near breakout to G401. See Figure. |
| S407 (Expedition-EL & Navigator-L) | In rear light connector harness, near breakout to C405. See Figure. |
| S407 (Navigator) | In rear light connector harness, near breakout to power liftgate module. See Figure. |
| S408 (Expedition) | In rear light connector harness, near breakout to parking aid speaker. See Figure. |
| S408 (Expedition-EL & Navigator-L) | In rear light connector harness, near breakout to parking aid speaker. See Figure. |
| S408 (Navigator) | In rear light connector harness, near breakout to parking aid speaker. See Figure. |
| S409 (Expedition) | In rear light connector harness, near breakout to parking aid speaker. See Figure. |
| S409 (Expedition-EL & Navigator-L) | In rear light connector harness, near breakout to parking aid speaker. See Figure. |
| S409 (Navigator) | In rear light connector harness, near breakout to parking aid speaker. See Figure. |
| S410 | In rear light connector harness, in breakout to rear mode door actuator. See Figure. |
| S411 | In rear light connector harness, in breakout to rear mode door actuator. See Figure. |
| S412 | In rear light connector harness, near breakout to auxiliary blower motor resistor assembly. See Figure. |
| S413 (Expedition) | In rear light connector harness, near breakout to C410. See Figure. |
| S413 (Expedition-EL & Navigator-L) | In rear light connector harness, near breakout to C410. See Figure. |
| S413 (Navigator) | In rear light connector harness, near breakout to C410. See Figure. |
| S414 | In rear light connector harness, near breakout to G402. See Figure. |
| S415 (Expedition) | In rear light connector harness, near breakout to right rear quarter window motor. See Figure. |
| S415 (Expedition-EL & Navigator-L) | In rear light connector harness, near breakout to right rear quarter window motor. See Figure. |
| S415 (Navigator) | In rear light connector harness, near breakout to G402. See Figure. |
| S416 (Expedition) | In rear light connector harness, near breakout to right rear quarter window motor. See Figure. |
| S416 (Expedition-EL & Navigator-L) | In rear light connector harness, near breakout to right rear quarter window motor. See Figure. |
| S416 (Navigator) | In rear light connector harness, near breakout to G402. See Figure. |
| S417 (Expedition) | In rear light connector harness, near breakout to right rear quarter window motor. See Figure. |
| S417 (Expedition-EL & Navigator-L) | In rear light connector harness, near breakout to right rear quarter window motor. See Figure. |
| S417 (Navigator) | In rear light connector harness, near breakout to auxiliary relay box 2. See Figure. |
| S418 (Expedition) | In rear light connector harness, near breakout to right rear quarter window motor. See Figure. |
| S418 (Expedition-EL & Navigator-L) | In rear light connector harness, near breakout to right rear quarter window motor. See Figure. |
| S418 (Navigator) | In rear light connector harness, near breakout to G402. See Figure. |
| S419 (Expedition) | In rear light connector harness, near breakout to right rear quarter window motor. See Figure. |
| S419 (Expedition-EL & Navigator-L) | In rear light connector harness, near breakout to right rear quarter window motor. See Figure. |
| S419 (Navigator) | In rear light connector harness, near breakout to G402. See Figure. |
| S420 | In rear light connector harness, near breakout to right rear park/stop/turn light 1. See Figure. |
| S421 | In rear light connector harness, near breakout to left rear park/stop/turn light 1. See Figure. |
| S422 | In rear light connector harness, near breakout to C408. See Figure. |

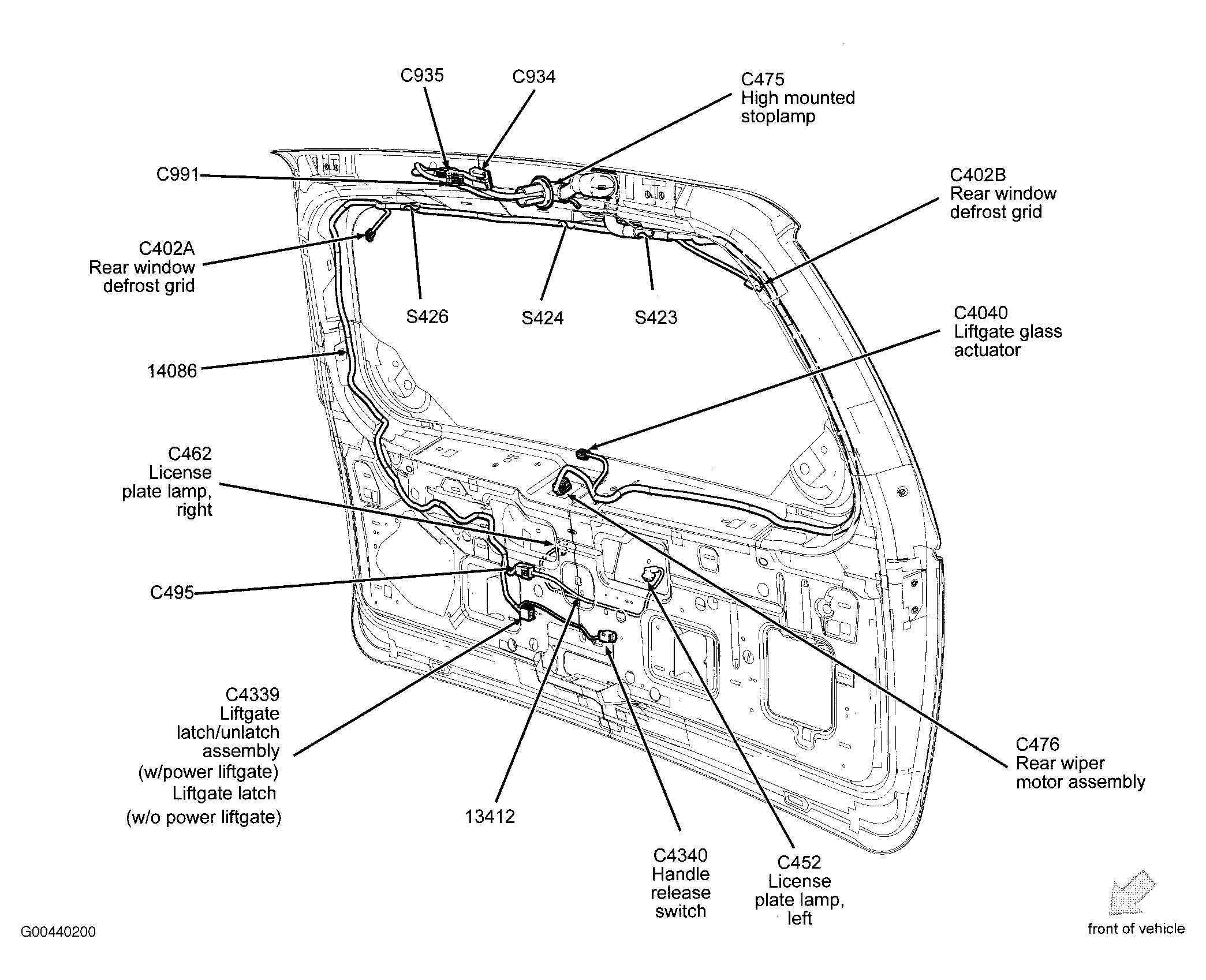

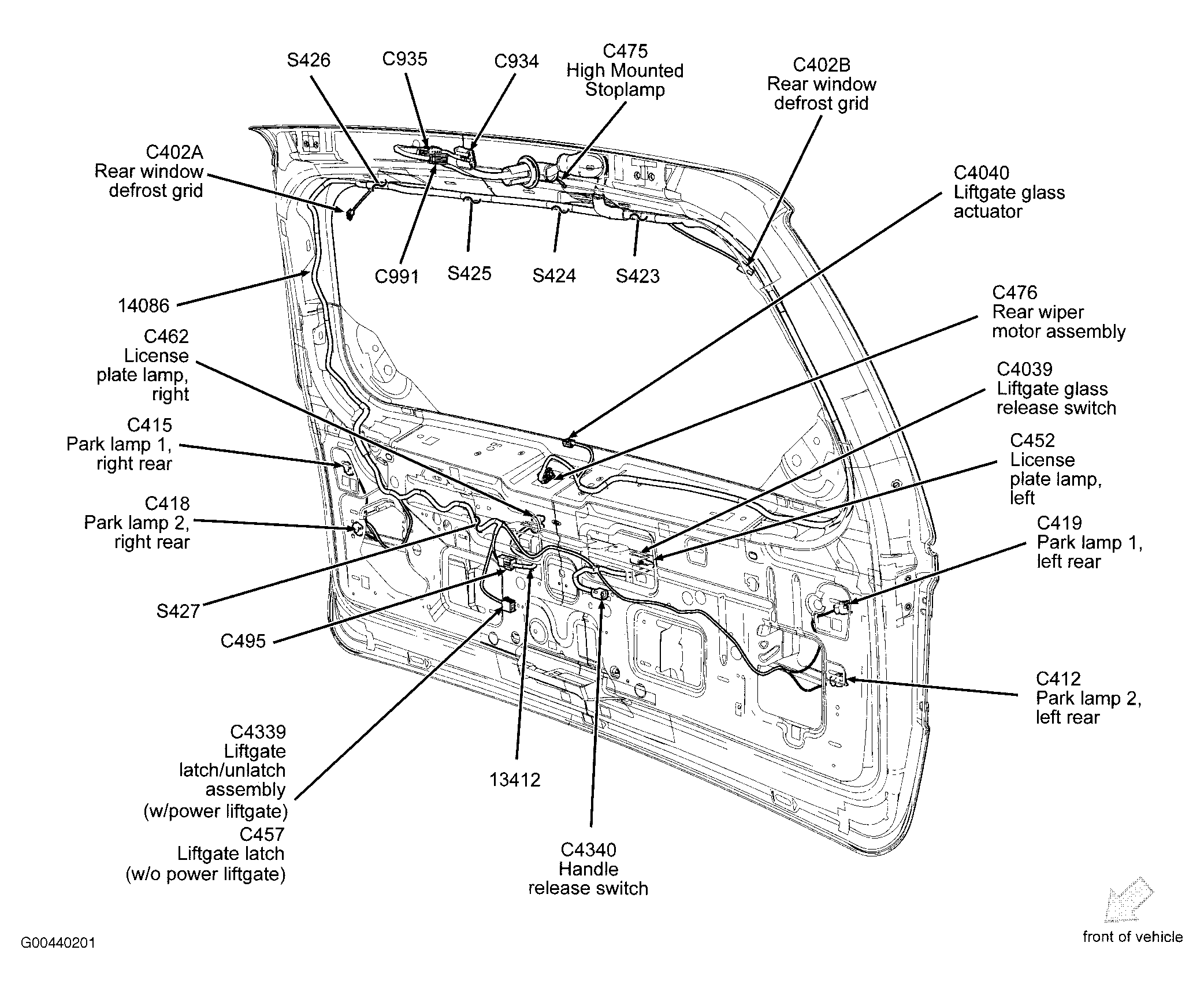

| S423 (Expedition) | In switch & wiring assembly, near breakout to rear window defrost grid. See Figure. |
| S423 (Navigator) | In switch & wiring assembly, near breakout to rear window defrost grid. See Figure. |
| S424 (Expedition) | In switch & wiring assembly, near breakout to rear window defrost grid. See Figure. |
| S424 (Navigator) | In switch & wiring assembly, near breakout to rear window defrost grid. See Figure. |
| S425 | In switch & wiring assembly, near breakout to rear window defrost grid. See Figure. |
| S426 (Expedition) | In switch & wiring assembly, near breakout to rear window defrost grid. See Figure. |
| S426 (Navigator) | In switch & wiring assembly, near breakout to rear window defrost grid. See Figure. |
| S427 | In switch & wiring assembly, near breakout to C495. See Figure. |

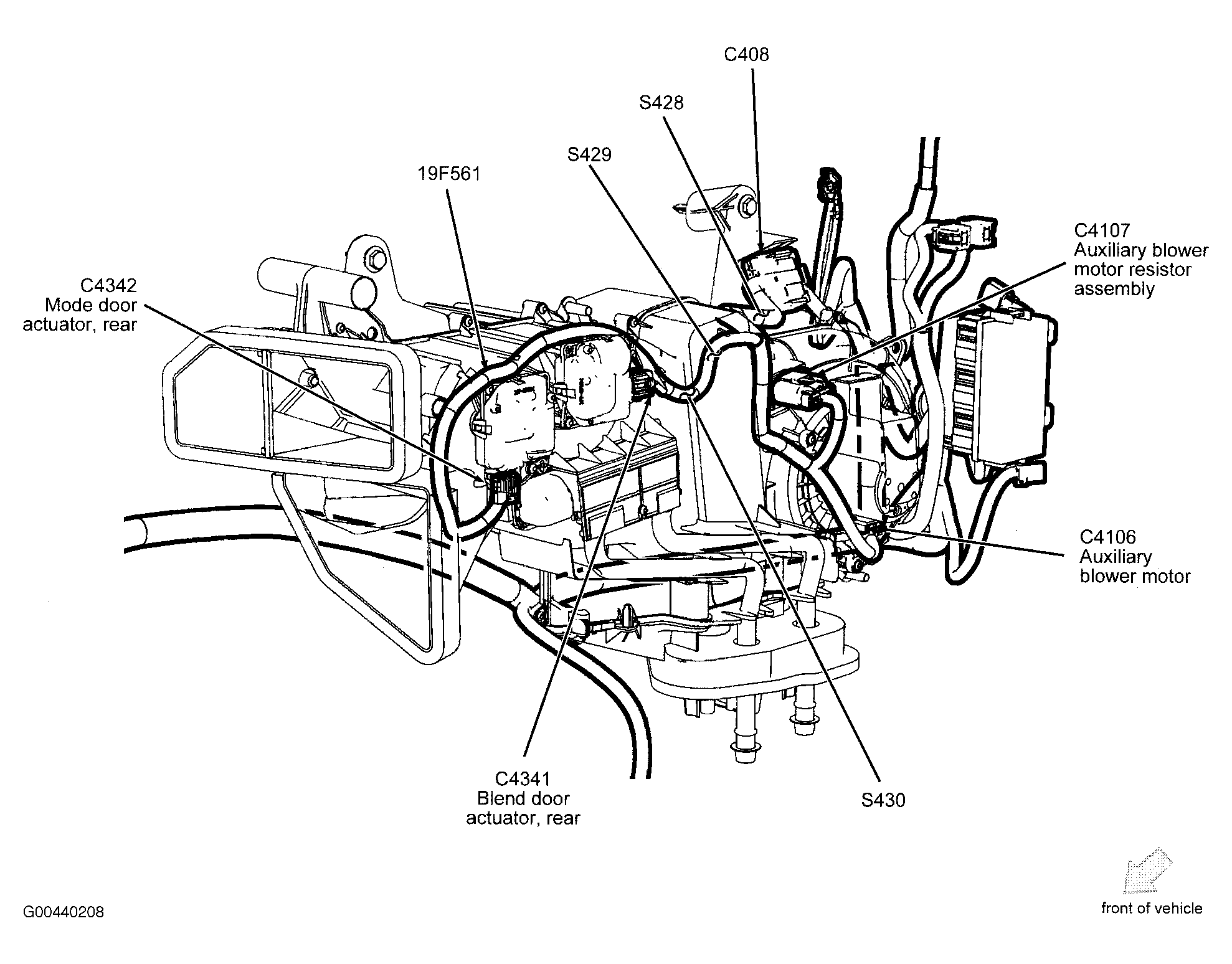

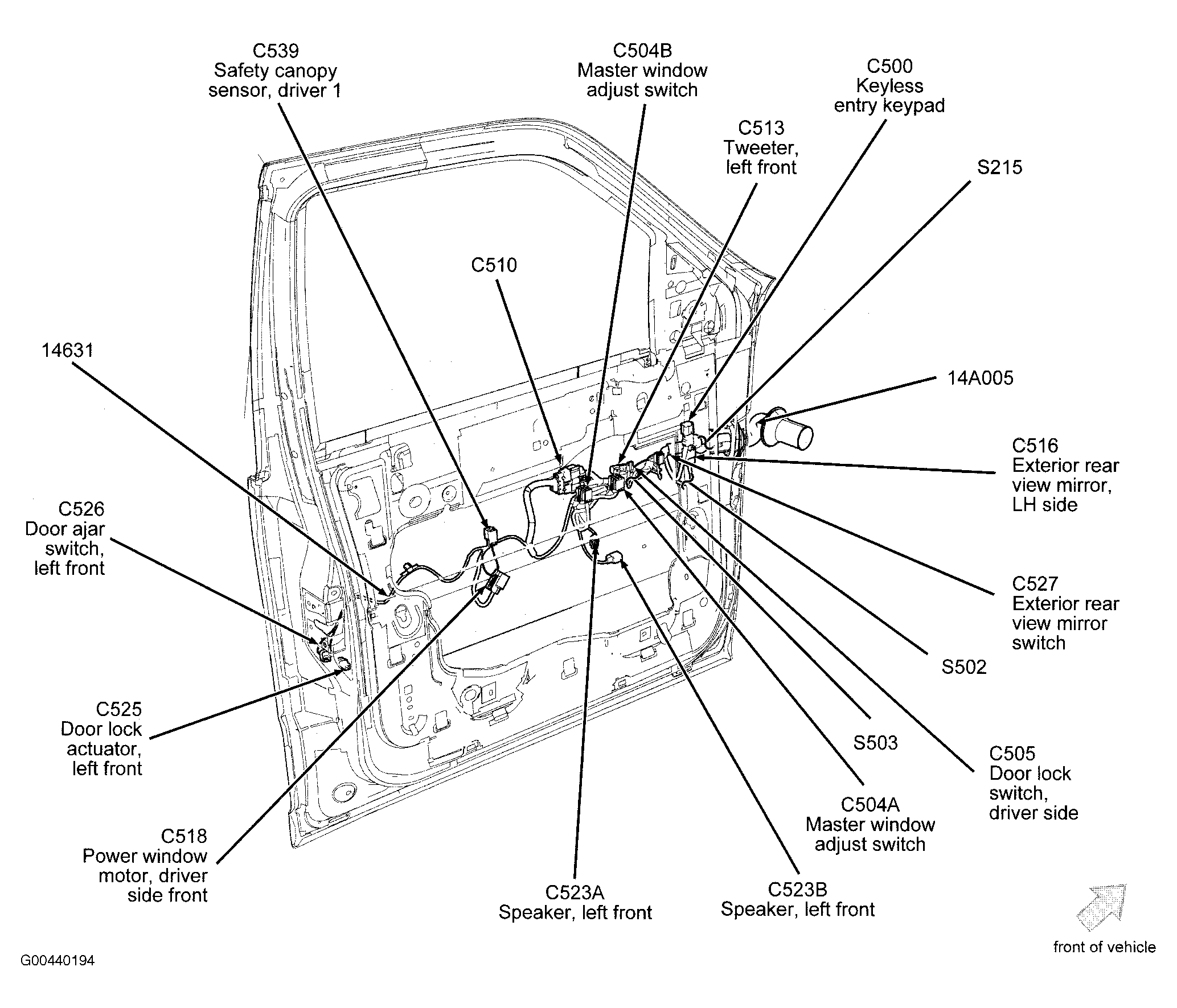

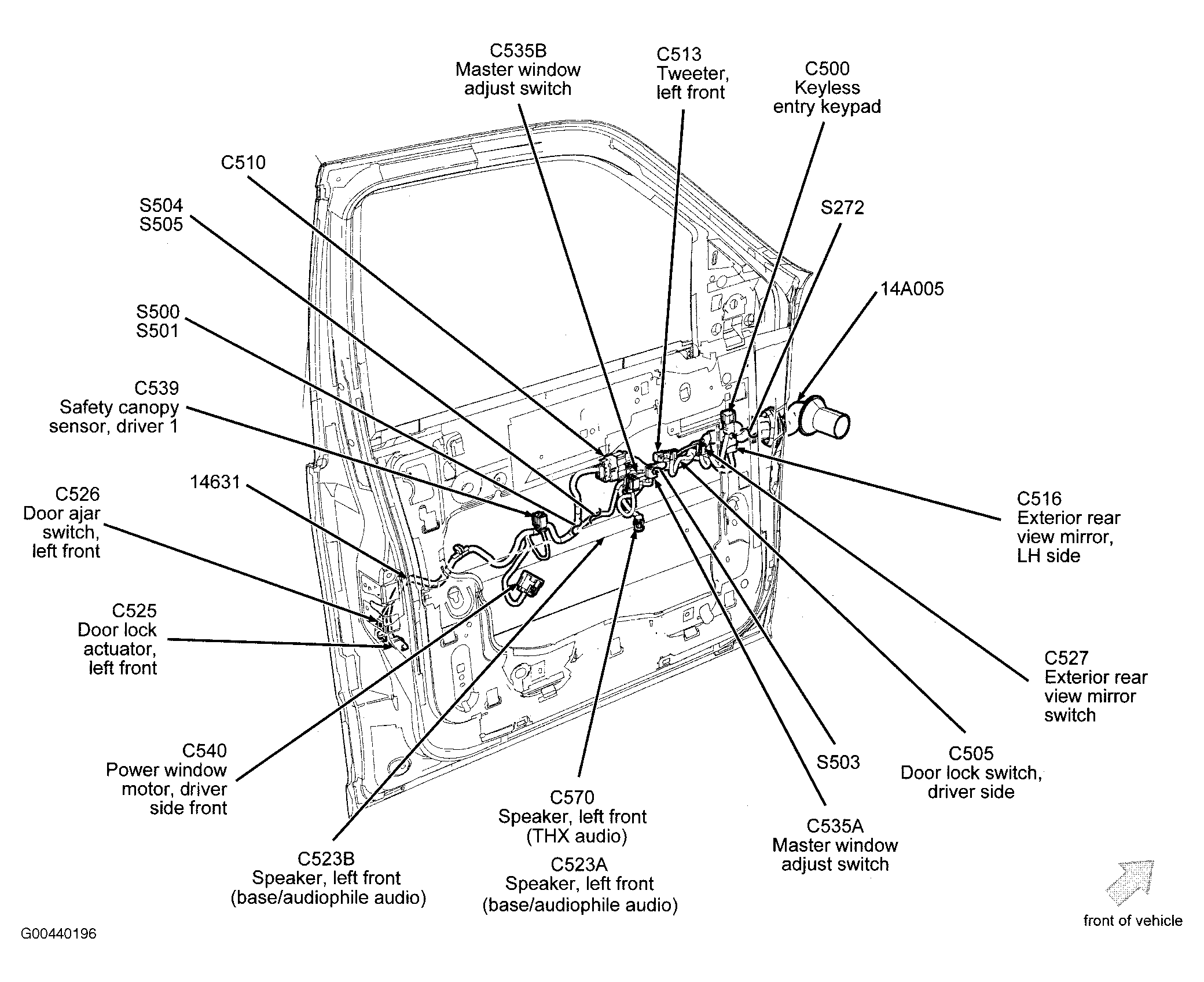

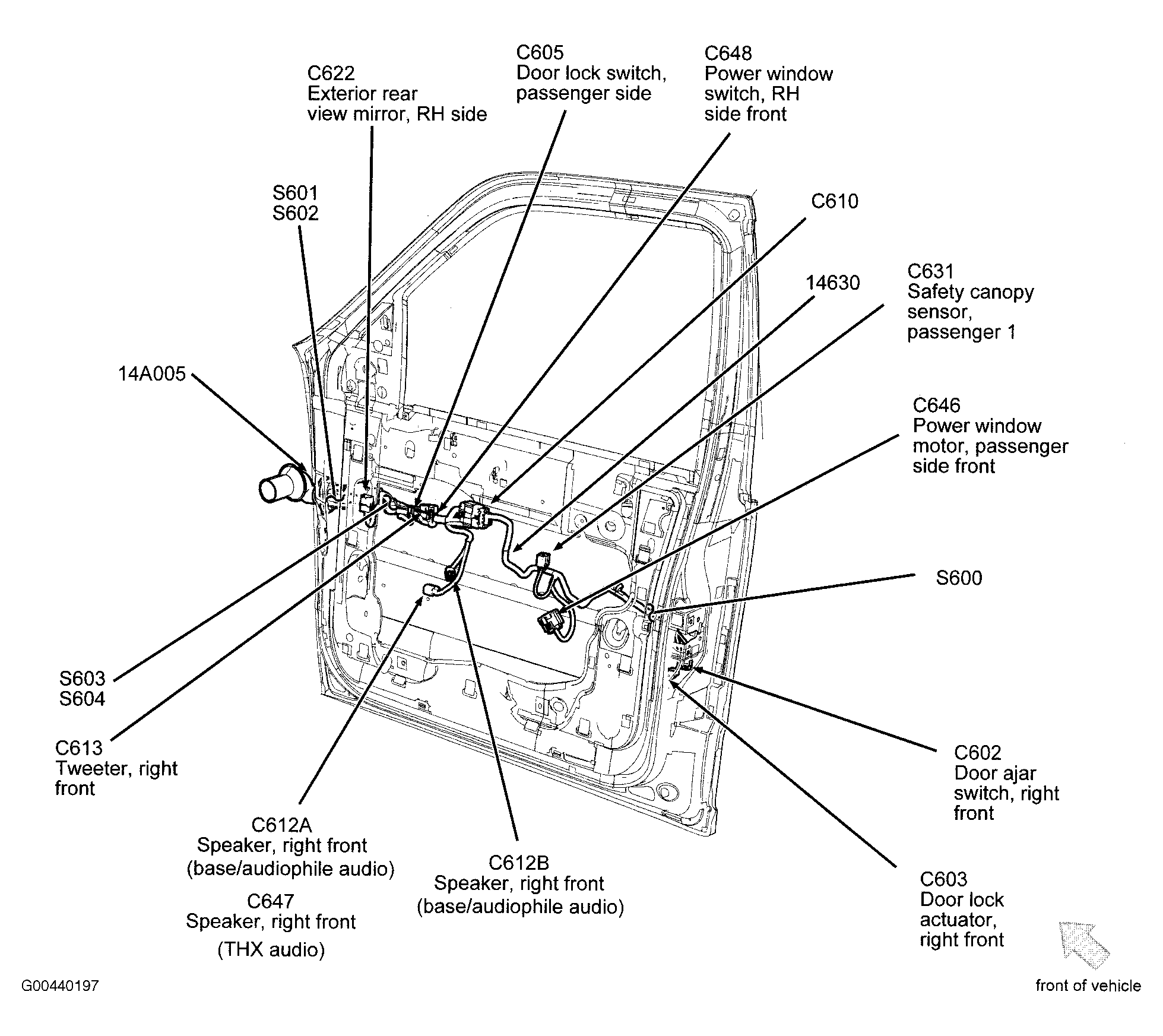

| S428 | In auxiliary case jumper, near breakout to rear mode door actuator. See Figure. |
| S429 | In auxiliary case jumper, near breakout to rear mode door actuator. See Figure. |
| S430 | In auxiliary case jumper, near breakout to rear mode door actuator. See Figure. |
| S431 (Expedition-EL & Navigator-L) | In taillights harness, near breakout to fuel pump module. See Figure. |
| S431 (Expedition & Navigator) | In taillights harness, near breakout to fuel pump module. See Figure. |
| S432 (Expedition-EL & Navigator-L) | In taillights harness, near breakout to fuel pump module. See Figure. |
| S432 (Expedition & Navigator) | In taillights harness, near breakout to fuel pump module. See Figure. |
| S433 (Expedition-EL & Navigator-L) | In taillights harness, near breakout to fuel pump module. See Figure. |
| S433 (Expedition & Navigator) | In taillights harness, near breakout to fuel pump module. See Figure. |
| S434 (Expedition-EL & Navigator-L) | In taillights harness, near breakout to fuel pump module. See Figure. |
| S434 (Expedition & Navigator) | In taillights harness, near breakout to fuel pump module. See Figure. |
| S435 (Expedition-EL & Navigator-L) | In taillights harness, near breakout to fuel pump module. See Figure. |
| S435 (Expedition & Navigator) | In taillights harness, near breakout to fuel pump module. See Figure. |
| S436 (Expedition-EL & Navigator-L) | In taillights harness, near breakout to G405. See Figure. |
| S436 (Expedition & Navigator) | In taillights harness, near breakout to G405. See Figure. |
| S437 (Expedition-EL & Navigator-L) | In taillights harness, near breakout to G405. See Figure. |
| S437 (Expedition & Navigator) | In taillights harness, near breakout to G405. See Figure. |
| S438 (Expedition-EL & Navigator-L) | In taillights harness, near breakout to 4-pin trailer tow connector. See Figure. |
| S438 (Expedition & Navigator) | In taillights harness, near breakout to 4-pin trailer tow connector. See Figure. |
| S439 (Expedition-EL & Navigator-L) | In taillights harness, near breakout to 4-pin trailer tow connector. See Figure. |
| S439 (Expedition & Navigator) | In taillights harness, near breakout to 4-pin trailer tow connector. See Figure. |
| S442 | In body main harness, near breakout to C465. See Figure. |
| S443 | In body main harness, near breakout to C405. See Figure. |
| S444 (Expedition) | In body main harness, in breakout to subwoofer amplifier. See Figure. |
| S444 (Expedition-EL & Navigator-L) | In body main harness, in breakout to subwoofer amplifier. See Figure. |
| S444 (Navigator) | In body main harness, in breakout to subwoofer amplifier. See Figure. |
| S445 | In rear light connector harness, near breakout to right rear tweeter. See Figure. |
| S500 | In driver's door window regulator harness, in breakout keyless entry keypad. See Figure. |
| S501 | In driver's door window regulator harness, in breakout keyless entry keypad. See Figure. |
| S502 | In main body harness, in breakout to left side exterior rearview mirror. See Figure. |
| S503 (Expedition) | In main body harness, near breakout to master window adjust switch. See Figure. |
| S503 (Navigator) | In main body harness, near breakout to master window adjust switch. See Figure. |
| S504 | In main body harness, in breakout to master window adjust switch. See Figure. |
| S505 | In main body harness, in breakout to master window adjust switch. See Figure. |
| S600 | In right front window regulator harness, near breakout to front passenger's door ajar switch. See Figure. |
| S601 | In body main harness, near breakout to right side exterior rearview mirror. See Figure. |
| S602 | In body main harness, near breakout to right side exterior rearview mirror. See Figure. |
| S603 | In body main harness, near breakout to passenger side door lock switch. See Figure. |
| S604 | In body main harness, near breakout to passenger side door lock switch. See Figure. |

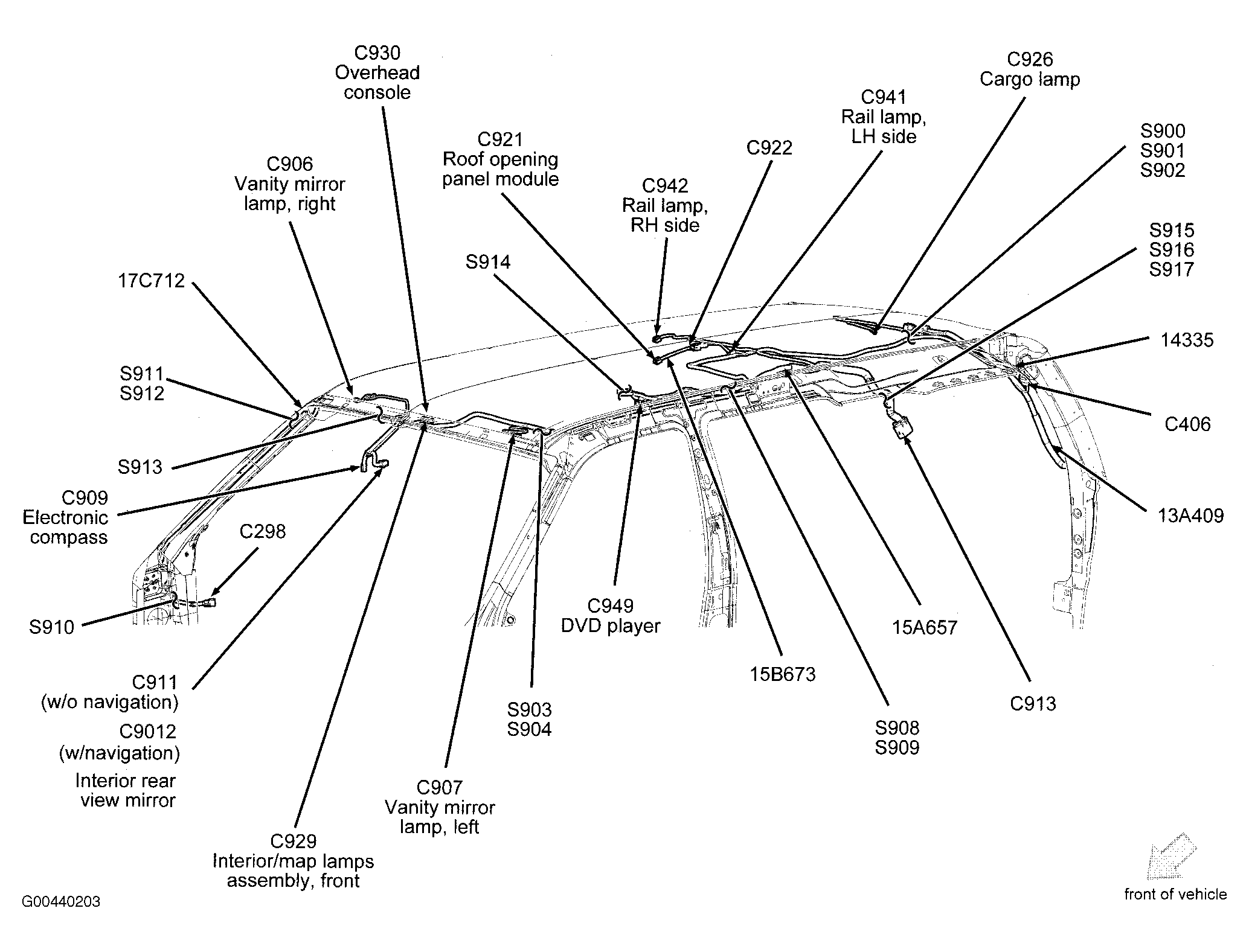

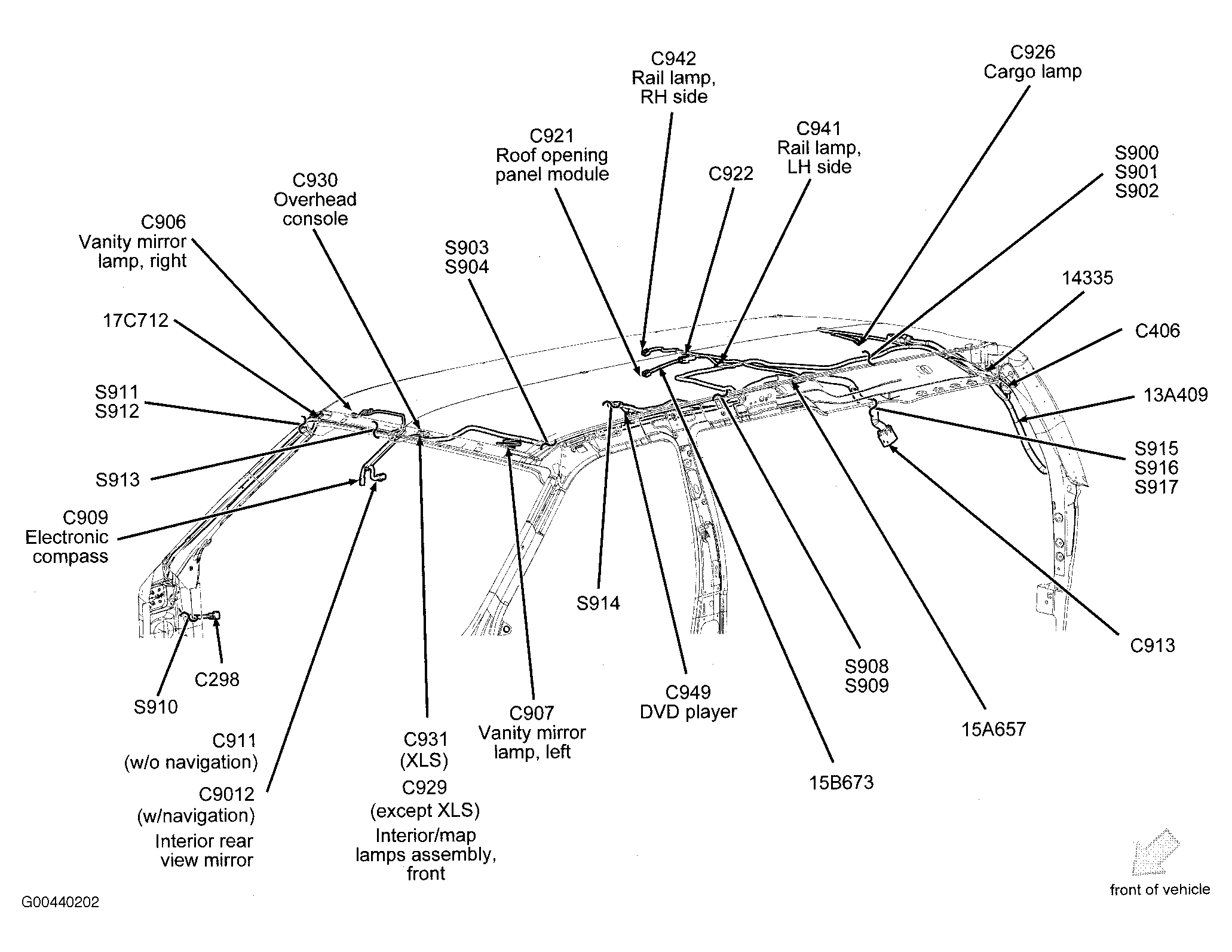

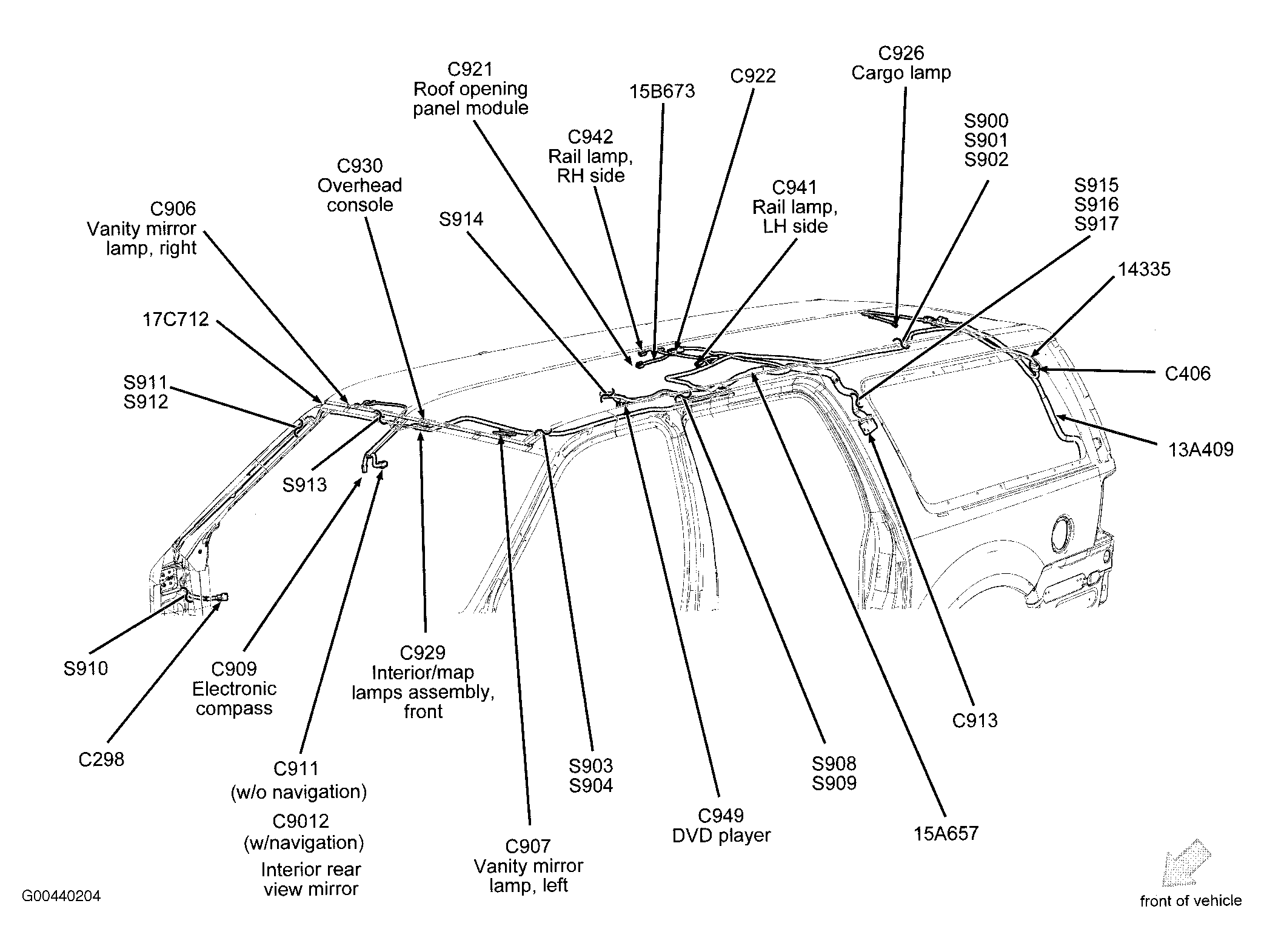

| S900 (Expedition) | In interior illumination harness, near breakout to C406. See Figure. |
| S900 (Expedition-EL & Navigator-L) | In interior illumination harness, near breakout to C406. See Figure. |
| S900 (Navigator) | In interior illumination harness, near breakout to C406. See Figure. |
| S901 (Expedition) | In interior illumination harness, near breakout to C406. See Figure. |
| S901 (Expedition-EL & Navigator-L) | In interior illumination harness, near breakout to C406. See Figure. |
| S901 (Navigator) | In interior illumination harness, near breakout to C406. See Figure. |
| S902 (Expedition) | In interior illumination harness, near breakout to C406. See Figure. |
| S902 (Expedition-EL & Navigator-L) | In interior illumination harness, near breakout to C406. See Figure. |
| S902 (Navigator) | In interior illumination harness, near breakout to C406. See Figure. |
| S903 (Expedition) | In interior illumination harness, near breakout to left vanity mirror light. See Figure. |
| S903 (Expedition-EL & Navigator-L) | In interior illumination harness, near breakout to left vanity mirror light. See Figure. |
| S903 (Navigator) | In interior illumination harness, near breakout to left vanity mirror light. See Figure. |
| S904 (Expedition) | In interior illumination harness, near breakout to left vanity mirror light. See Figure. |
| S904 (Expedition-EL & Navigator-L) | In interior illumination harness, near breakout to left vanity mirror light. See Figure. |
| S904 (Navigator) | In interior illumination harness, near breakout to left vanity mirror light. See Figure. |
| S905 (Expedition) | In body main harness, near breakout to C913. See Figure. |
| S905 (Expedition-EL & Navigator-L) | In body main harness, near breakout to C913. See Figure. |
| S905 (Navigator) | In body main harness, near breakout to C913. See Figure. |
| S906 (Expedition) | In body main harness, near breakout to C913. See Figure. |
| S906 (Expedition-EL & Navigator-L) | In body main harness, near breakout to C913. See Figure. |
| S906 (Navigator) | In body main harness, near breakout to C913. See Figure. |
| S907 (Expedition) | In body main harness, near breakout to C913. See Figure. |
| S907 (Expedition-EL & Navigator-L) | In body main harness, near breakout to C913. See Figure. |
| S907 (Navigator) | In body main harness, near breakout to C913. See Figure. |
| S908 (Expedition) | In roof sliding panel control switch harness, in breakout to DVD player. See Figure. |
| S908 (Expedition-EL & Navigator-L) | In roof sliding panel control switch harness, in breakout to DVD player. See Figure. |
| S908 (Navigator) | In roof sliding panel control switch harness, in breakout to DVD player. See Figure. |
| S909 (Expedition) | In roof sliding panel control switch harness, in breakout to DVD player. See Figure. |
| S909 (Expedition-EL & Navigator-L) | In roof sliding panel control switch harness, in breakout to DVD player. See Figure. |
| S909 (Navigator) | In roof sliding panel control switch harness, in breakout to DVD player. See Figure. |
| S910 (Expedition) | In vanity mirror light harness, in breakout to C298. See Figure. |
| S910 (Expedition-EL & Navigator-L) | In vanity mirror light harness, in breakout to C298. See Figure. |
| S910 (Navigator) | In vanity mirror light harness, in breakout to C298. See Figure. |
| S911 (Expedition) | In vanity mirror light harness, in breakout to C298. See Figure. |
| S911 (Expedition-EL & Navigator-L) | In vanity mirror light harness, in breakout to C298. See Figure. |
| S911 (Navigator) | In vanity mirror light harness, in breakout to C298. See Figure. |
| S912 (Expedition) | In vanity mirror light harness, in breakout to C298. See Figure. |
| S912 (Expedition-EL & Navigator-L) | In vanity mirror light harness, in breakout to C298. See Figure. |
| S912 (Navigator) | In vanity mirror light harness, in breakout to C298. See Figure. |
| S913 (Expedition) | In vanity mirror light harness, near breakout to electronic compass. See Figure. |
| S913 (Expedition-EL & Navigator-L) | In vanity mirror light harness, near breakout to electronic compass. See Figure. |
| S913 (Navigator) | In vanity mirror light harness, near breakout to electronic compass. See Figure. |
| S914 (Expedition) | In roof sliding panel control switch harness, near breakout to DVD player. See Figure. |
| S914 (Expedition-EL & Navigator-L) | In roof sliding panel control switch harness, near breakout to DVD player. See Figure. |
| S914 (Navigator) | In roof sliding panel control switch harness, near breakout to DVD player. See Figure. |
| S915 (Expedition) | In roof sliding panel control switch harness, in breakout to C913. See Figure. |
| S915 (Expedition-EL & Navigator-L) | In roof sliding panel control switch harness, in breakout to C913. See Figure. |
| S915 (Navigator) | In roof sliding panel control switch harness, in breakout to C913. See Figure. |
| S916 (Expedition) | In roof sliding panel control switch harness, in breakout to C913. See Figure. |
| S916 (Expedition-EL & Navigator-L) | In roof sliding panel control switch harness, in breakout to C913. See Figure. |
| S916 (Navigator) | In roof sliding panel control switch harness, in breakout to C913. See Figure. |
| S917 (Expedition) | In roof sliding panel control switch harness, in breakout to C913. See Figure. |
| S917 (Expedition-EL & Navigator-L) | In roof sliding panel control switch harness, in breakout to C913. See Figure. |
| S917 (Navigator) | In roof sliding panel control switch harness, in breakout to C913. See Figure. |
