Engine Front Cover: Notes

Special Tools

Illustration	Tool Name	Tool Number
	Installer, Crankshaft Front Seal	303-335 (T88T-6701-A)
	Installer, Crankshaft Front Seal	303-635
	Installer, Crankshaft Vibration Damper	303-102 (T74P-6316-B)
	Remover, Crankshaft Front Seal	303-107 (T74P-6700-A)
	Remover, Crankshaft Vibration Damper	303-009 (T58P-6316-D)

Material

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4
Silicone Gasket Remover ZC-30	-

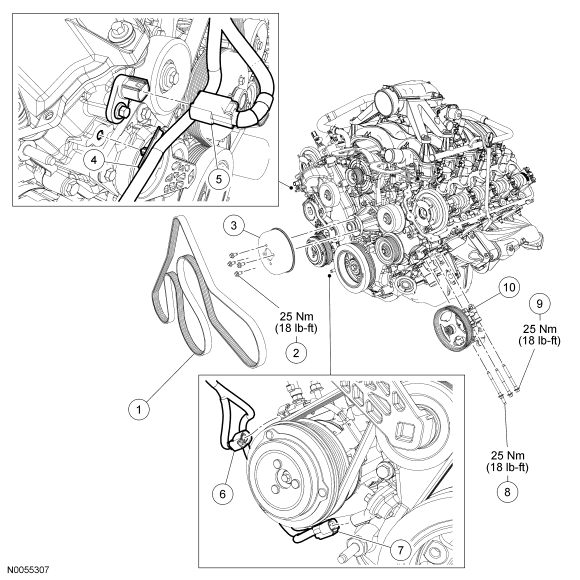

Fig 1: Exploded View Of Power Steering Pump, Accessory Drive Belt & Electrical Connectors With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	8620	Accessory drive belt
2	N806282	Coolant pump pulley bolt (4 required)
3	8A528	Coolant pump pulley
4	-	Wiring harness retainer (part of 12B637)
5	-	RH camshaft position (CMP) sensor electrical connector (part of 12B637)
6	-	A/C compressor electrical connector (part of 12B637)
7	-	Crankshaft position (CKP) sensor electrical connector (part of 12B637)
8	W710927	Power steering pump stud bolt
9	W706447	Power steering pump bolt (2 required)
10	3A696	Power steering pump

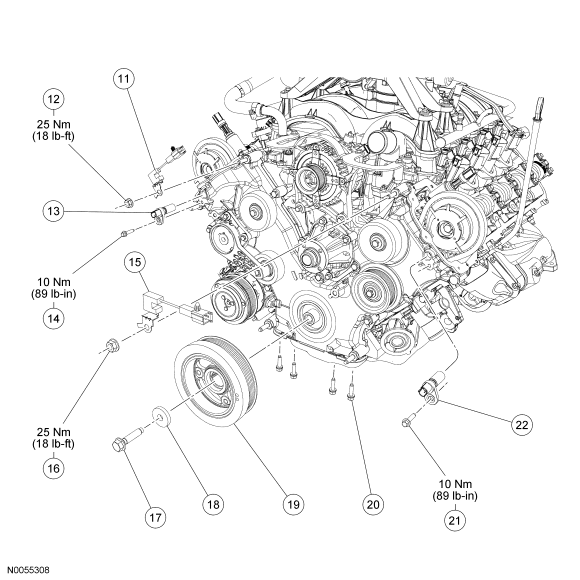

Fig 2: Exploded View Of Crankshaft Pulley, Camshaft Position CMP Sensors & Radio Ignition Interference Capacitors With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
11	18801	RH radio ignition interference capacitor
12	N804758	RH radio ignition interference capacitor nut
13	6B288	RH CMP sensor
14	N806155	RH CMP sensor bolt
15	18801	LH radio ignition interference capacitor
16	N804758	LH radio ignition interference capacitor nut
17	W701512	Crankshaft pulley bolt
18	N806165	Crankshaft pulley bolt washer
19	6316	Crankshaft pulley
20	W701605	Oil pan bolt (4 required)
21	N806155	LH CMP sensor bolt
22	6B288	LH CMP sensor

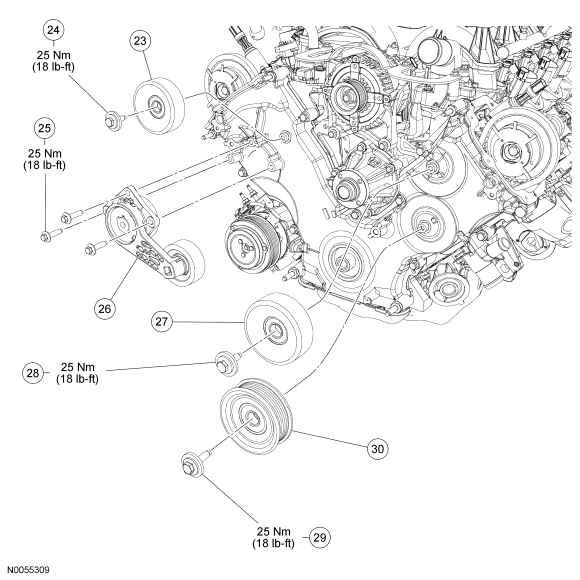

Fig 3: Exploded View Of Accessory Drive Belt Idler Pulleys & Tensioner With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
23	19A216	RH accessory drive belt idler pulley
24	N808102	RH accessory drive belt idler pulley bolt
25	N808920	Accessory drive belt tensioner bolt (3 required)
26	6B209	Accessory drive belt tensioner
27	19A216	LH accessory drive belt idler pulley
28	N808102	LH accessory drive belt idler pulley bolt
29	N808102	LH lower accessory drive belt idler pulley bolt
30	6C348	LH lower accessory drive belt idler pulley

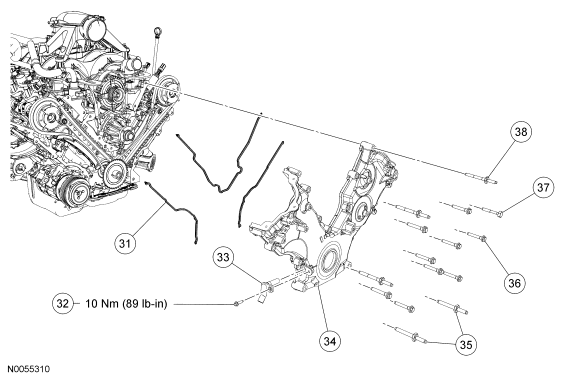

Fig 4: Exploded View Of Engine Front Cover & Gaskets With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
31	6D081	Engine front cover gasket (3 required)
32	N806155	CKP sensor bolt
33	6C315	CKP sensor
34	6C086	Engine front cover
35	N808529	Engine front cover lower studs (2 required)
36	N806177	Engine front cover bolt (9 required)
37	W706605	Engine front cover bolt
38	W709573	Engine front cover upper stud (3 required)
