Intake Manifold: Notes

Material

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-
Silicone Gasket Remover ZC-30	-

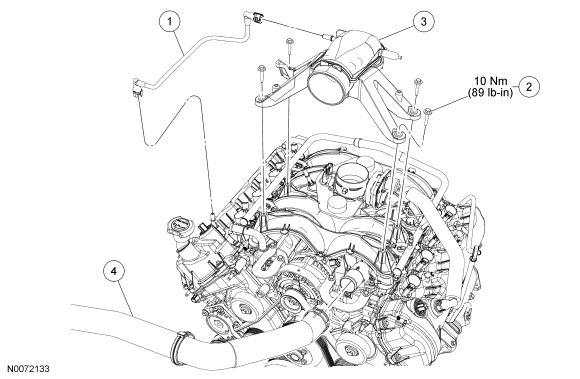

Fig 1: Exploded View Of Air Cleaner Outlet Pipe Adapter & Upper Radiator Hose With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6758	Crankcase ventilation tube
2	W505426	Air cleaner outlet pipe-to-throttle body (TB) adapter bolt (4 required)
3	9A589	Air cleaner outlet pipe-to-TB adapter
4	8B274	Upper radiator hose

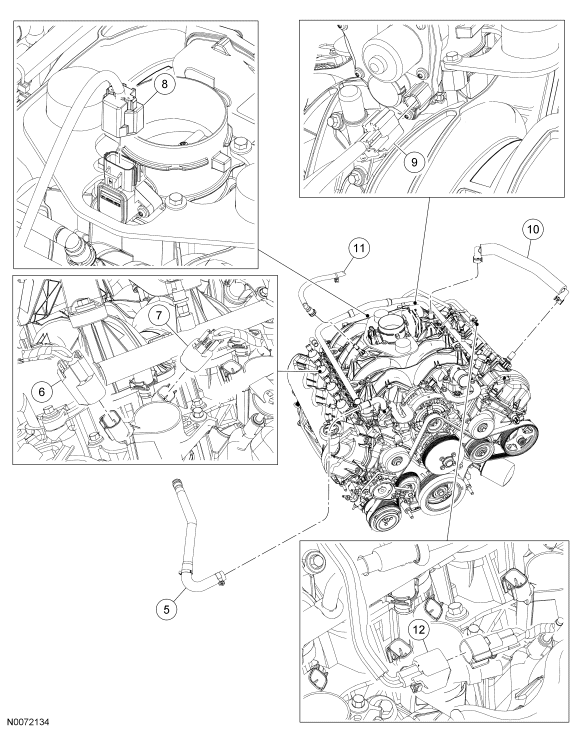

Fig 2: Exploded View Of Intake Manifold Electrical Connector and Hose Connections

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
5	9229	Heater coolant hose
6	-	Ignition coil electrical connector (8 required) (part of 12B637)
7	-	Fuel injector electrical connector (8 required) (part of 12B637)
8	-	Throttle position (TP) sensor electrical connector (part of 12B637)
9	-	Electronic acceleration control electrical connector (part of 12B637)
10	6K817	PCV tube
11	-	Evaporative emissions (EVAP) system tube quick connect coupling
12	-	Heated PCV element electrical connector (part of 12B637)

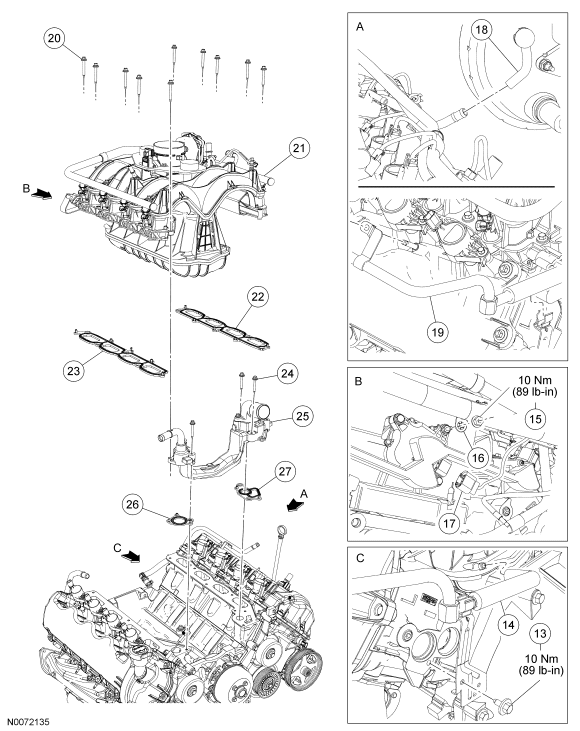

Fig 3: Exploded View Of Intake Manifold and Engine Coolant Crossover Assembly With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
13	-	Intake manifold vacuum tube support bracket bolt
14	-	Intake manifold vacuum tube-to-intake manifold hose (part of 9A474)
15	N621903	Engine wiring harness retainer nut
16	-	Engine wiring harness retainer (part of 12B637)
17	-	Charge motion control valve (CMCV) electrical connector (part of 128637)
18	-	Intake manifold vacuum tube-to-brake booster hose (part of 9A474)
19	9D446	Intake manifold vacuum tube
20	W710758	Intake manifold bolt (10 required)
21	9Y451	Intake manifold assembly
22	9441	LH intake manifold gasket
23	9439	RH intake manifold gasket
24	W503282	Engine coolant crossover assembly bolt (3 required)
25	8C368	Engine coolant crossover assembly
26	8C387	Engine coolant crossover assembly RH gasket
27	8C388	Engine coolant crossover assembly LH gasket
