Power Steering Pump: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer Set, Teflon® Seal | 211-D207 (D90P-3517-A) or equivalent |
Material
| Item | Specification |
|---|---|
| MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) |
MERCON® |

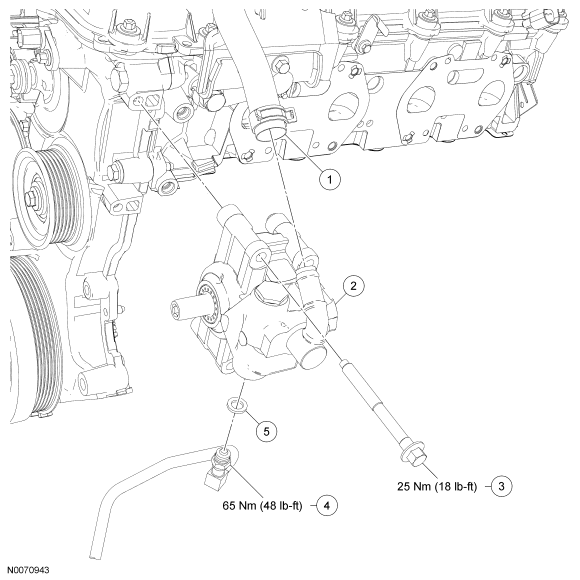

| Item | Part Number | Description |
|---|---|---|
| 1 | 3E525 | Power steering fluid reservoir-to-pump supply hose |
| 2 | 3A674 | Power steering pump |
| 3 | W706447 | Power steering pump bolt (3 required) |
| 4 | - | Power steering pressure line-to-power steering pump fitting (part of 3A719) |
| 5 | 388898 | Power steering pressure line Teflon® seal |
