Steering Gear: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Seperator, Ball Joint Tool | 204-592 |
Material
| Item | Specification |
|---|---|
| MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) |
MERCON® |

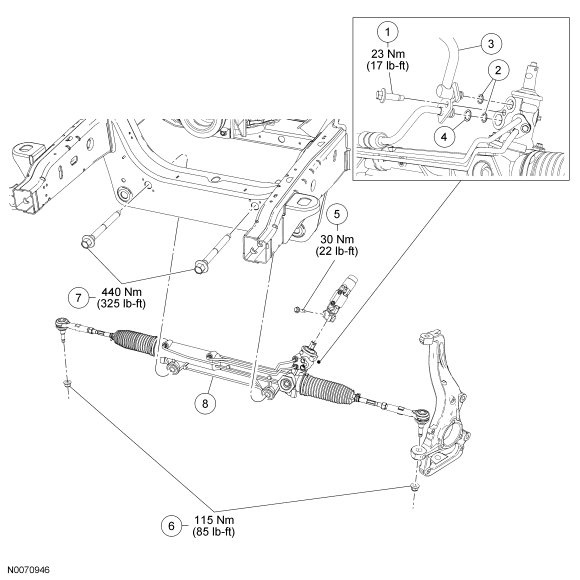

| Item | Part Number | Description |
|---|---|---|
| 1 | W707622 | Power steering line clamp plate bolt |
| 2 | 3F886-A 3F886-B | Power steering line O-ring seals (2 required) |
| 3 | 3D746 | Power steering return line |
| 4 | 3B602 | O-ring seal |
| 5 | N808684 | Steering column shaft-to-steering gear bolt |
| 6 | W520215 | Outer tie-rod end nuts (2 required) |
| 7 | W711590 | Steering gear-to-crossmember bolts (2 required) |
| 8 | 3504 | Steering gear |
