Selector Lever Bezel: Notes

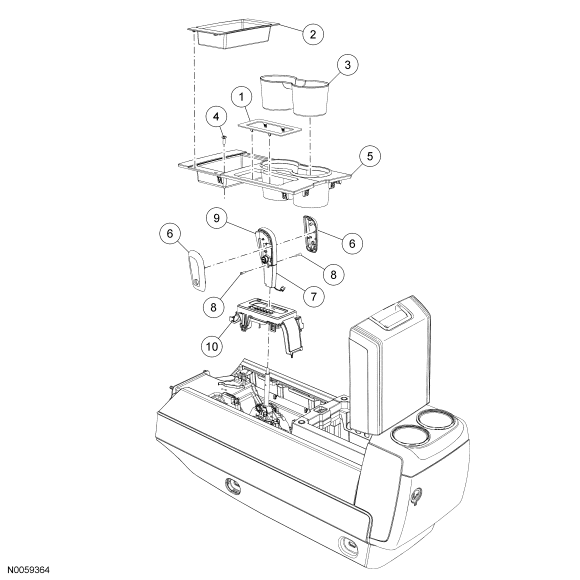

Fig 1: Exploded View Of Selector Lever Bezel - Vehicles Equipped With 6R75 Transmission
GF0022912Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - PRNDL trim plate
2 78045G34-B Console tray
3 78046B94-B Console cup holder insert
4 - Console upper trim panel screw
5 78045A76-A Console upper trim panel
6 7L468-A/B Selector lever knob covers
7 7E026-A/B Selector lever shroud
8 W790088 Selector lever knob screws
9 7L010-A Selector lever knob
10 7E034-A Selector lever bezel

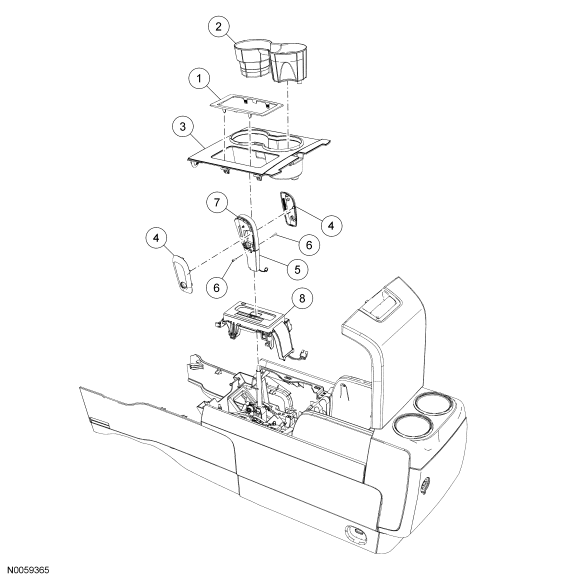

Fig 2: Exploded View Of Selector Lever Bezel - Vehicles Equipped With 6HP26 Transmission
GF0022913Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - PRNDL trim plate
2 78046B94-B Console cup holder insert
3 78044J76-A Console upper trim panel
4 7L468 Selector lever knob covers
5 7E026 Selector lever shroud
6 W790088 Selector lever knob screws
7 7L010-A Selector lever knob
8 7E034-A Selector lever bezel
