Multifunction Switch, Wiper/Washer Portion: Schematic

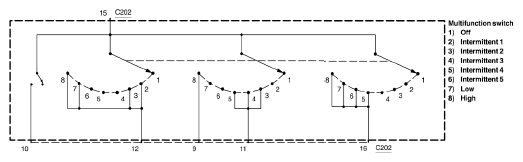

Fig 1: Multifunction Switch, Wiper/Washer Portion - Schematic
G05178993Courtesy of FORD MOTOR CO.
