Disassembly And Assembly Of Subassemblies: Piston: Assembly

    NOTE: The connecting rod must be installed into the piston with identification markings toward the front.
  1. Position the connecting rod in the piston.

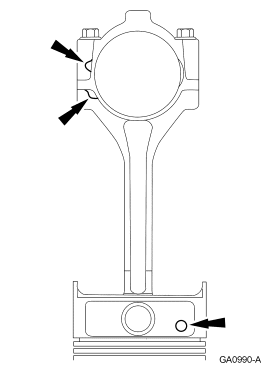

    2. Fig 1: Positioning Connecting Rod In Piston
    GF0000360Courtesy of FORD MOTOR CO.
  2. Lubricate the piston pin and pin bore with clean engine oil.
  3. Install the piston pin in the piston and connecting rod assembly.
  4. Install the piston pin retaining clips in the piston.
  5. Lubricate the piston and the new piston rings with clean engine oil.
  6. Install the piston rings onto the piston.
