Safety Belt Buckle - Front, Center: Notes

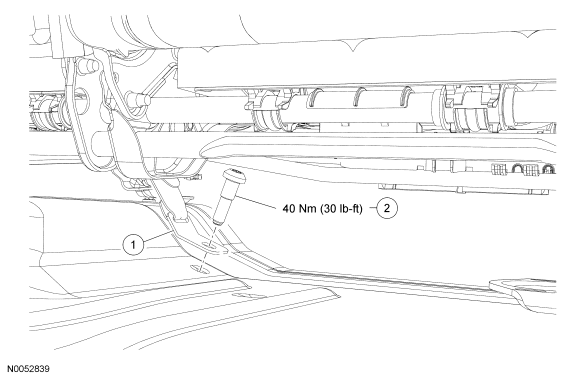

Fig 1: Exploded View Of Front Center Safety Belt Buckle With Torque Specifications
GF0021814Courtesy of FORD MOTOR CO.
Item Part Number Description
1 611B60 Safety belt buckle
2 N811712 Bolt, safety belt buckle
