Safety Belt Retractor - Front: Notes

NOTE: RH shown, LH similar.

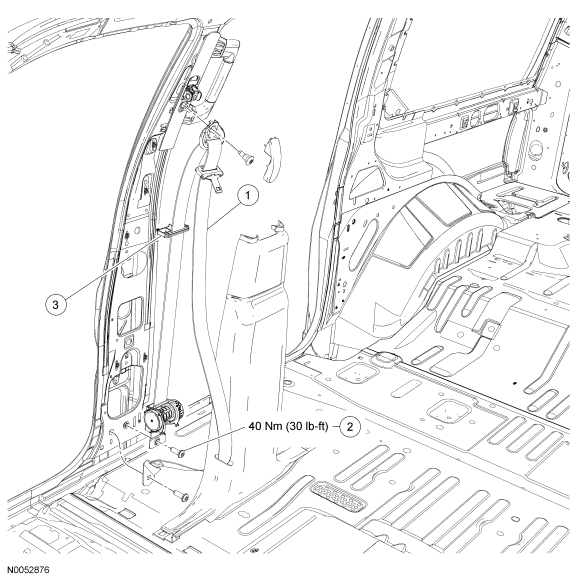

Fig 1: Exploded View Of Front Safety Belt Retractor With Torque Specifications
GF0021805Courtesy of FORD MOTOR CO.
Item Part Number Description
1 611B08 Safety belt retractor assembly
2 N807750 Bolt, safety belt retractor (part of 611B08)
3 - Safety belt guide
