Safety Belt Shoulder Height Adjuster: Notes

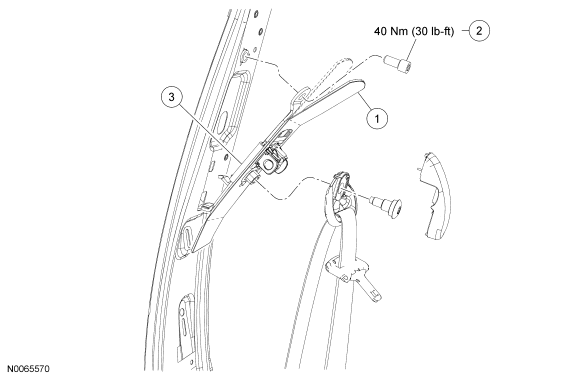

Fig 1: Exploded View Of Safety Belt Shoulder Height Adjuster With Torque Specifications
GF0021812Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Cover, height adjuster (part of 602B82)
2 - Bolt, height adjuster
3 602B82 Height adjuster
