Inner Tie Rod: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Separator Ball Joint Tool | 204-592 | |
| Inner Tie-Rod Socket Tool | 211-D029 or equivalent | |
| Boot Clamp Pliers | 205-D067 (D87P-1098-A) or equivalent |
Material
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

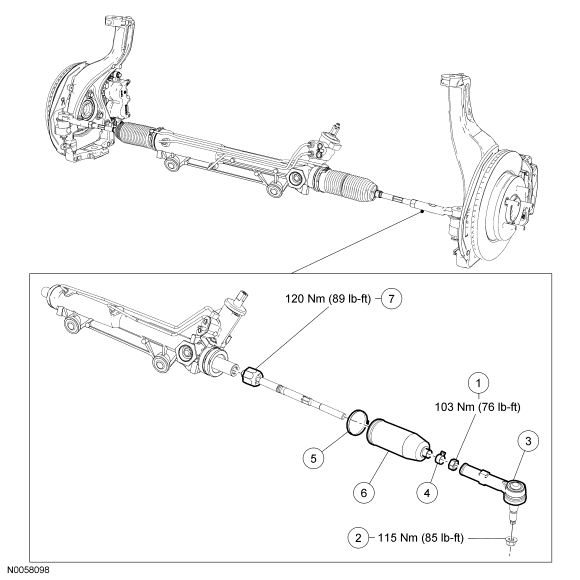

| Item | Part Number | Description |
|---|---|---|
| 1 | W711590 | Outer tie-rod end jam nut (part of 3280) (2 required) |
| 2 | W520215 | Outer tie-rod end nut (2 required) |
| 3 | 3A130 | Outer tie-rod end (2 required) |
| 4 | 3C650A | Outer bellows boot clamp (2 required) |
| 5 | 3C650B | Inner bellows boot clamp (2 required) |
| 6 | 3K661 | Steering gear bellows boot (2 required) |
| 7 | 3280 | Inner tie rod (2 required) |
