Low/Reverse Clutch Assembly: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Dial Indicator Gauge with Holding Fixture | 100-002 (TOOL-4201-C) or equivalent | |
| Compressor, Clutch Spring | 307-525 | |
| Gauge, D-Clutch Measurement | 307-554 | |
| Depth Micrometer | 303-D075 (D92P-4201-A) or equivalent |
Material
| Item | Specification |
|---|---|
| MERCON® SP Automatic Transmission Fluid XT-6-QSP (US); CXT-6-LSP12 (Canada) |
MERCON® SP |

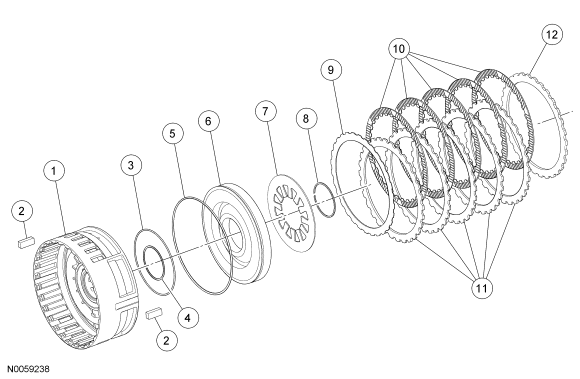

| Item | Part Number | Description |
|---|---|---|
| 1 | 7G033 | Intermediate/low/reverse clutch center support |
| 2 | 7J135 | Center support keys (2 required) |
| 3 | 7G446 | Low/reverse clutch piston center seal |
| 4 | 7G444 | Low/reverse clutch cylinder inner seal |
| 5 | 7F227 | Low/reverse clutch cylinder outer seal |
| 6 | 7D343 | Low/reverse clutch piston |
| 7 | 7D405 | Low/reverse clutch return spring |
| 8 | 7G494 | Low/reverse clutch return spring retainer |
| 9 | 7N572 | Low/reverse clutch cushion spring |
| 10 | 7B164 | Low/reverse clutch internal splined friction plates (internal to case) |
| 11 | 7E314 | Low/reverse clutch external splined steel plates (internal to case) |
| 12 | 7E314 | Low/reverse clutch pressure plate (internal to case) (select fit) |
