Output Shaft Seal: Notes

Special Tools

Illustration	Tool Name	Tool Number
	Installer, Transmission Extension Housing Fluid Seal	307-560
	Installer, Fluid Pump Seal	307-556
	Remover, Input Shaft Oil Seal	308-375
	Slide Hammer	100-001 (T50T-100-A)

Material

Item	Specification
MERCON® SP Automatic Transmission Fluid XT-6-QSP (US); CXT-6-LSP12 (Canada)	MERCON® SP

NOTE: Rear wheel drive (RWD) shown, four wheel drive (4WD) similar.

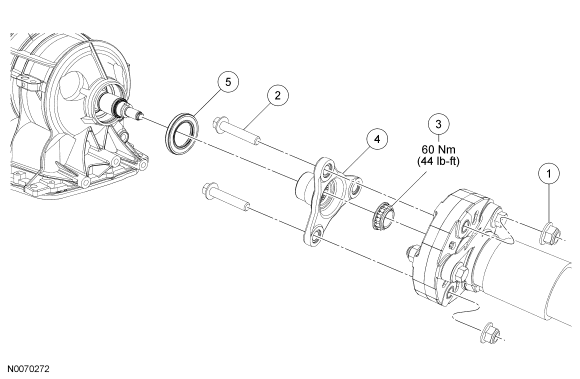

Fig 1: Exploded View Of Output Shaft Seal With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Rear driveshaft nut (3 required)
2	-	Rear driveshaft bolt (3 required)
3	7K440	Output shaft flange nut
4	7A021	Output shaft flange
5	7052	Output shaft seal
