Engine Lubrication
Engine Lubrication

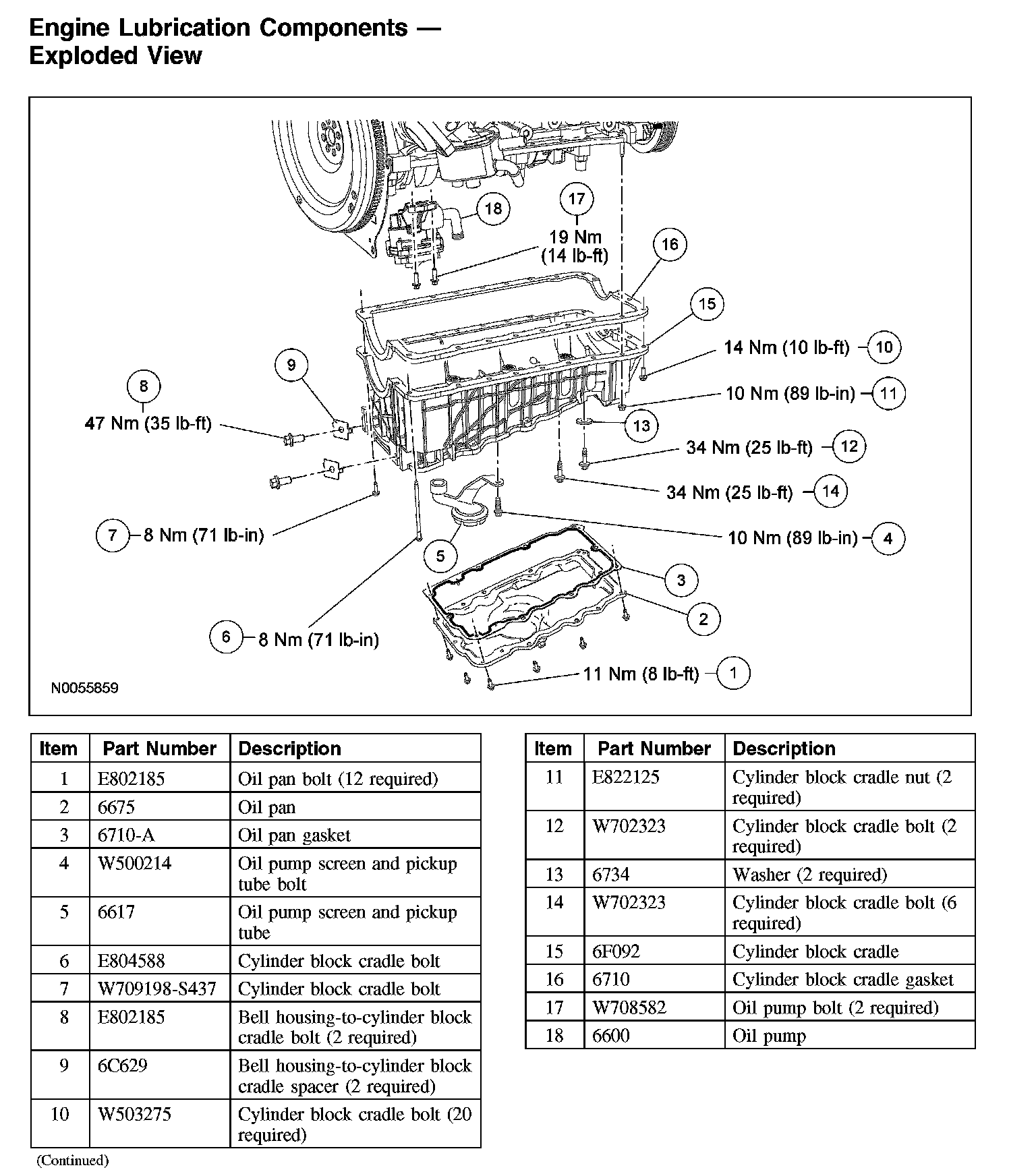

Components - Exploded View
Engine Lubrication Components - Exploded View:
