Driver Seat Module (DSM)

DRIVER SEAT MODULE (DSM)

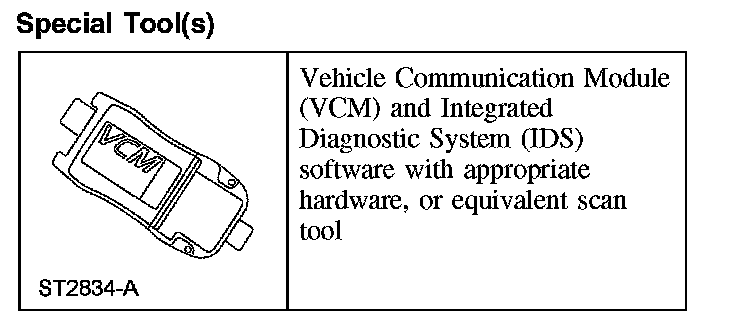

Special Tool(s):

Special Tool(s)







Removal and Installation

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

NOTE: Prior to the removal of the module, it is necessary to upload the module configuration information to a scan tool. This information must be downloaded into the new DSM after installation.

1. Remove the driver seat.

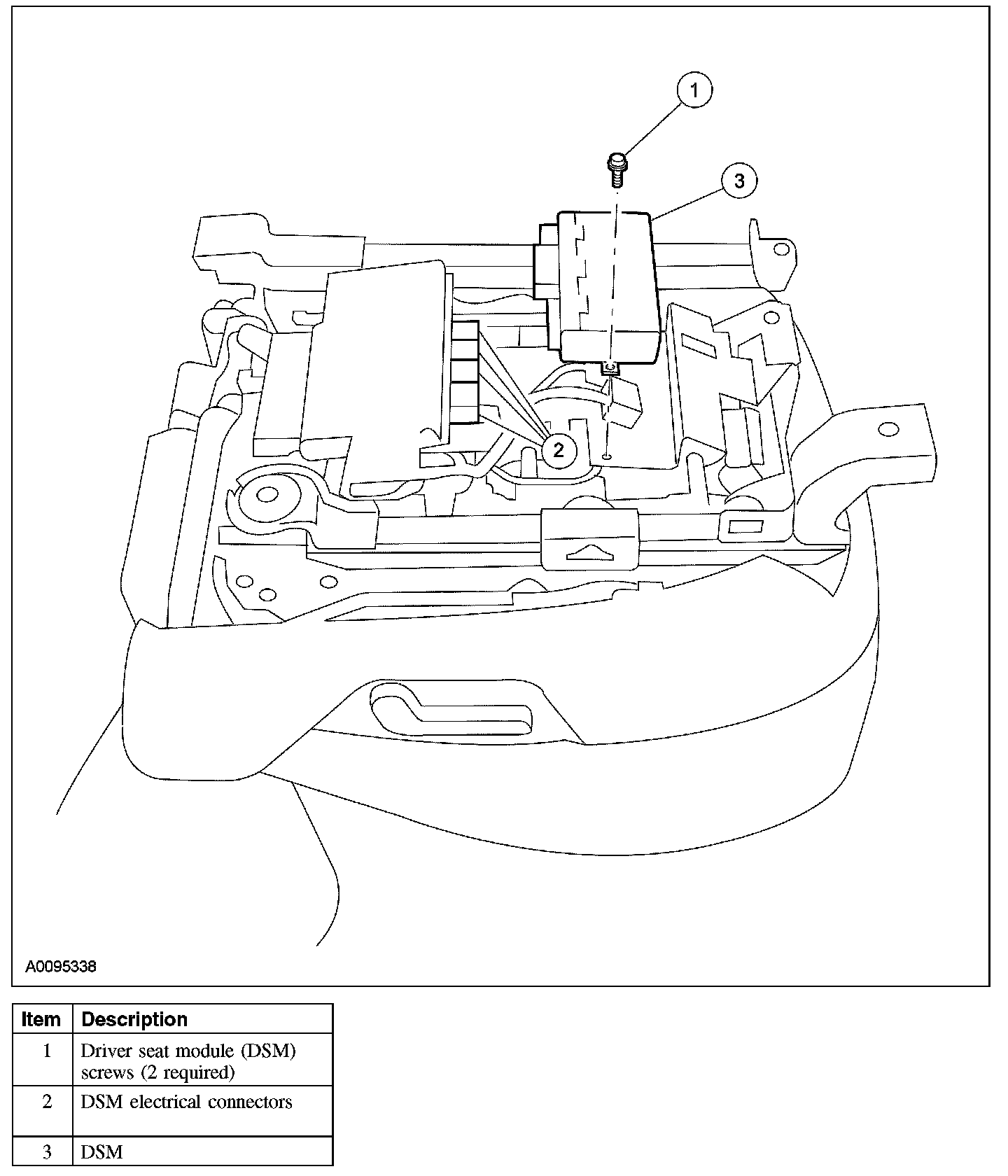

2. Remove the 2 DSM screws.
3. Disconnect the electrical connectors and remove the DSM.

4. NOTE: Once the module is installed it is necessary to download the module configuration information from the scan tool into the new module.

To install, reverse the removal procedure.
