Power Window Motor: Service and Repair

WINDOW REGULATOR MOTOR - REAR

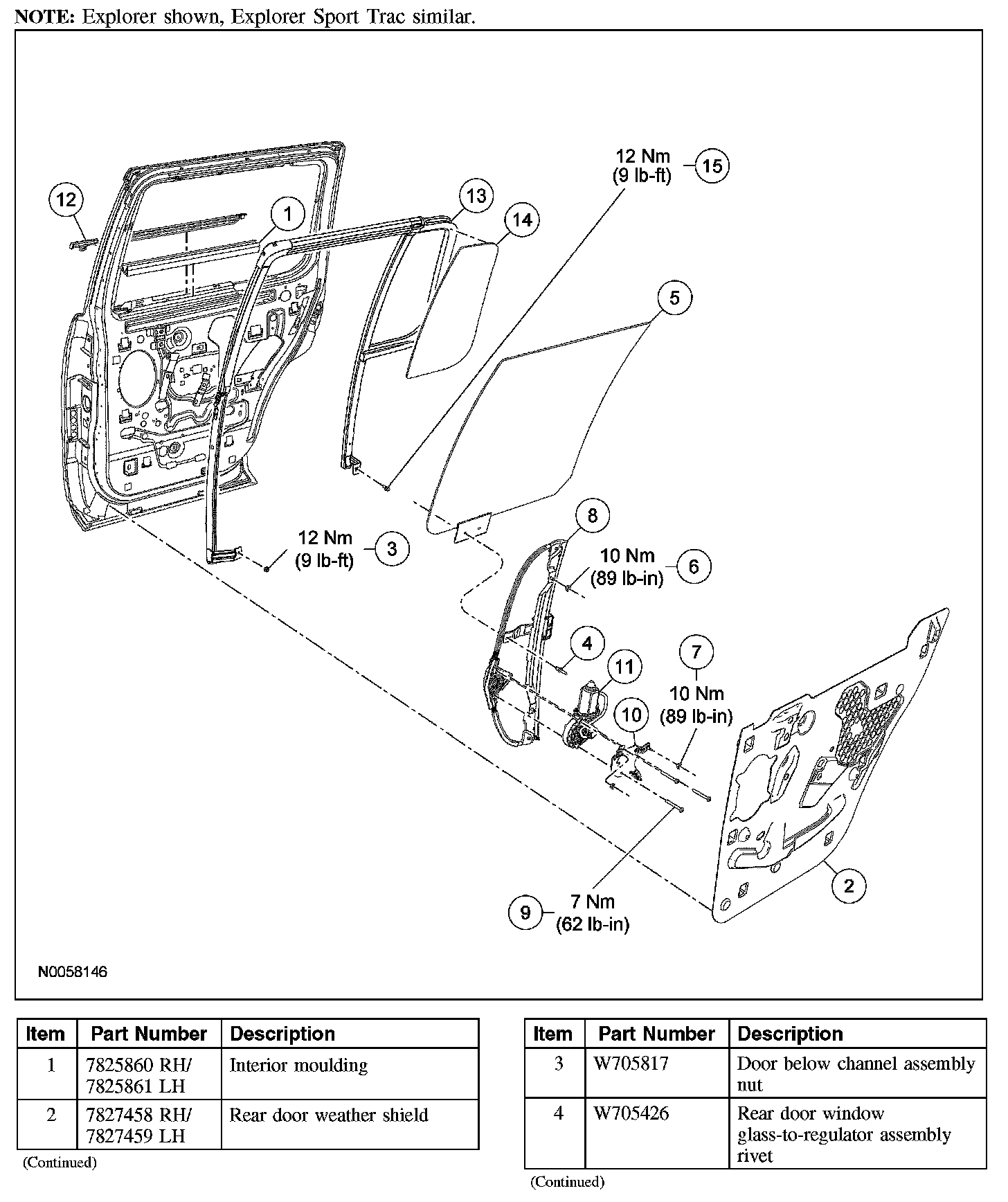

Part 1:

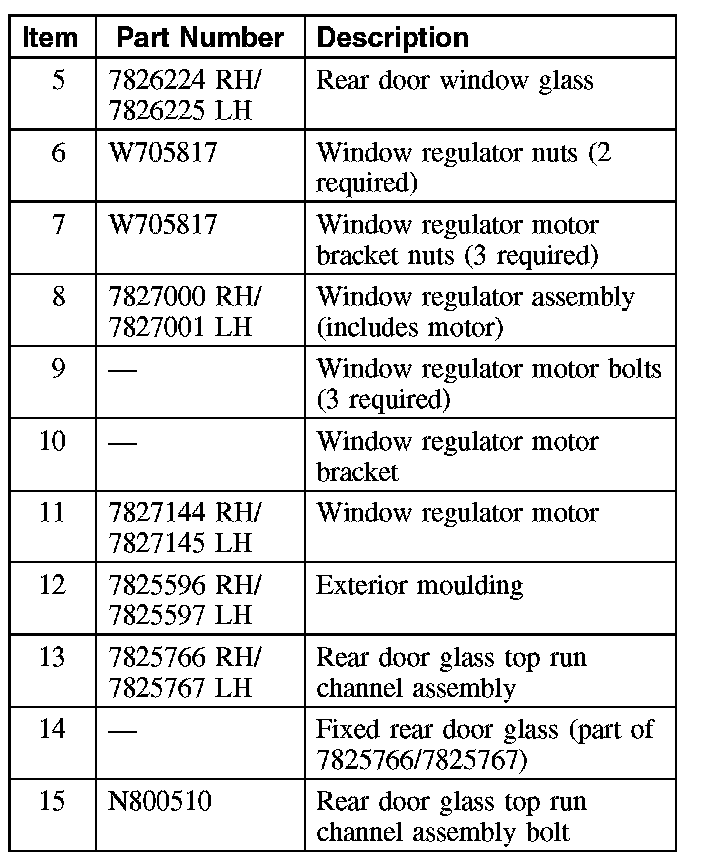

Part 2:

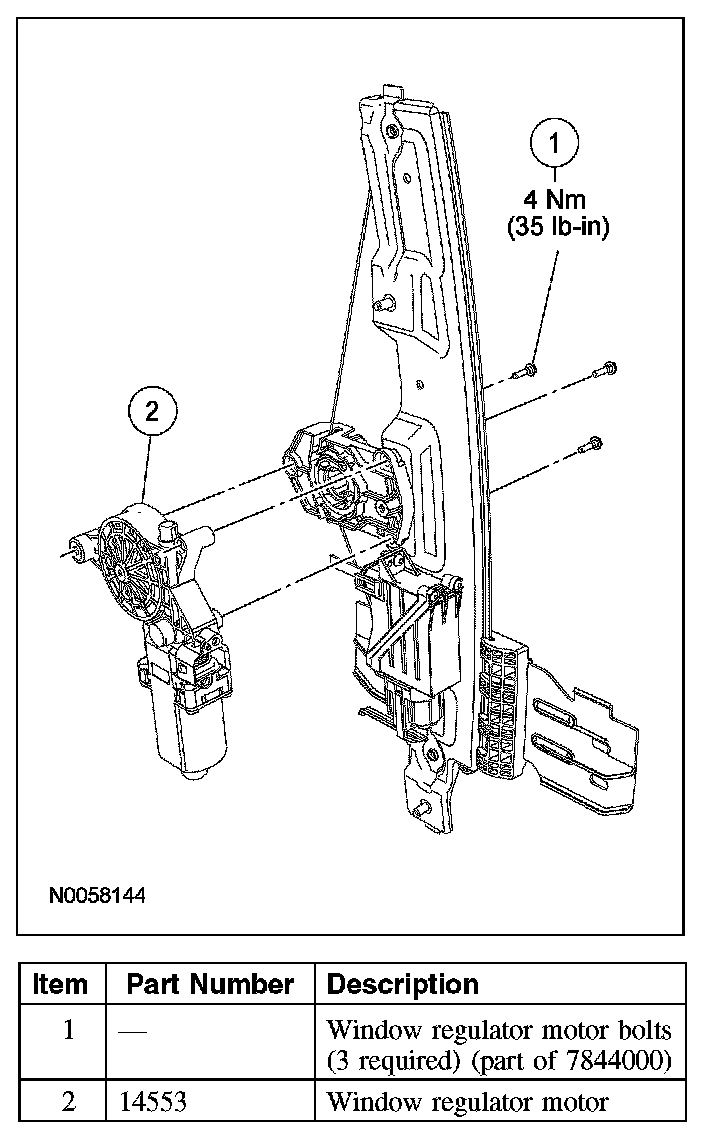

Exploded View







Removal and Installation
1. Remove the rear window glass regulator.
2. Remove the 3 window regulator motor bolts.
- To install, tighten to 4 Nm (35 lb-in).

3. Remove the window regulator motor.
4. To install, reverse the removal procedure.
