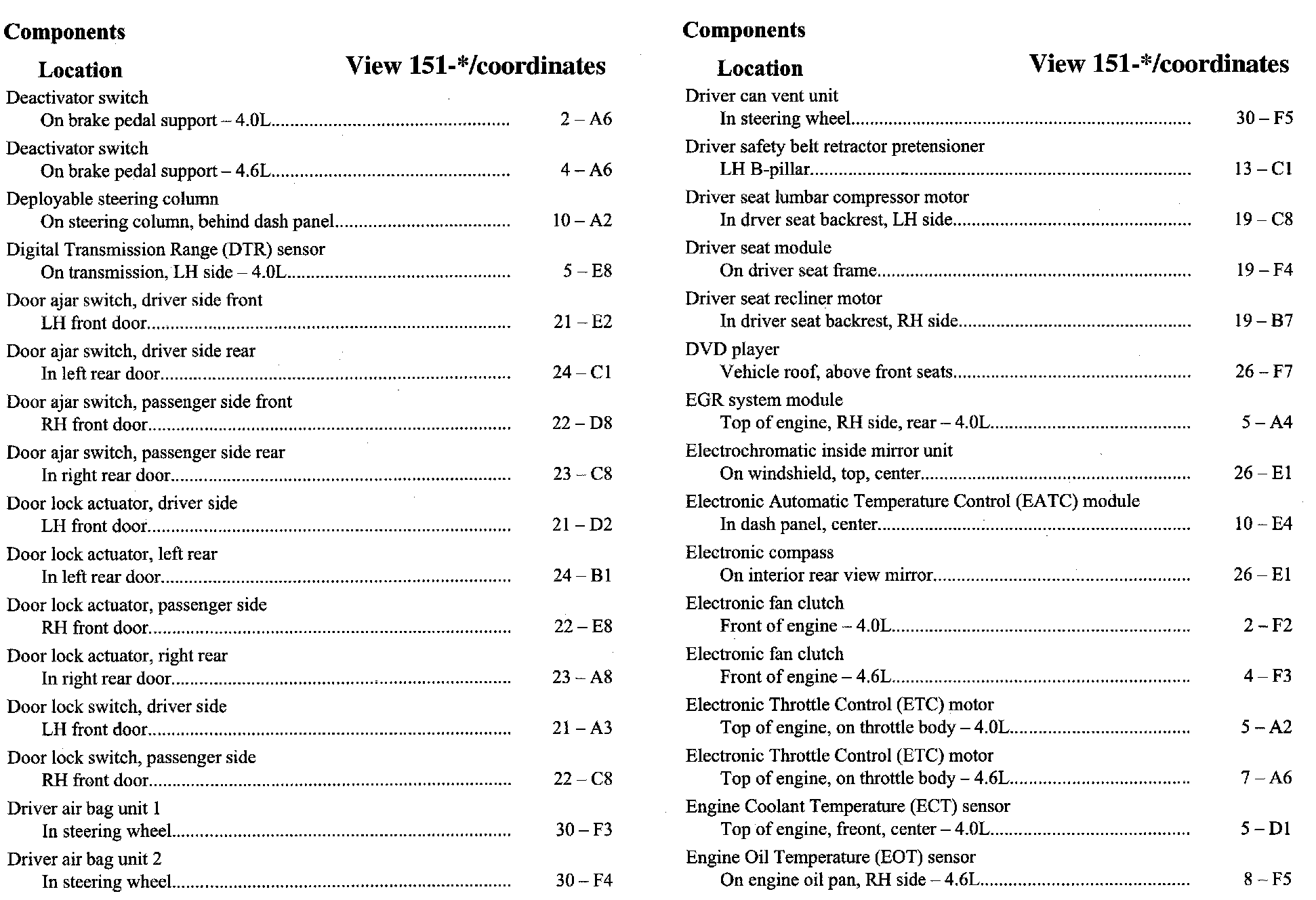

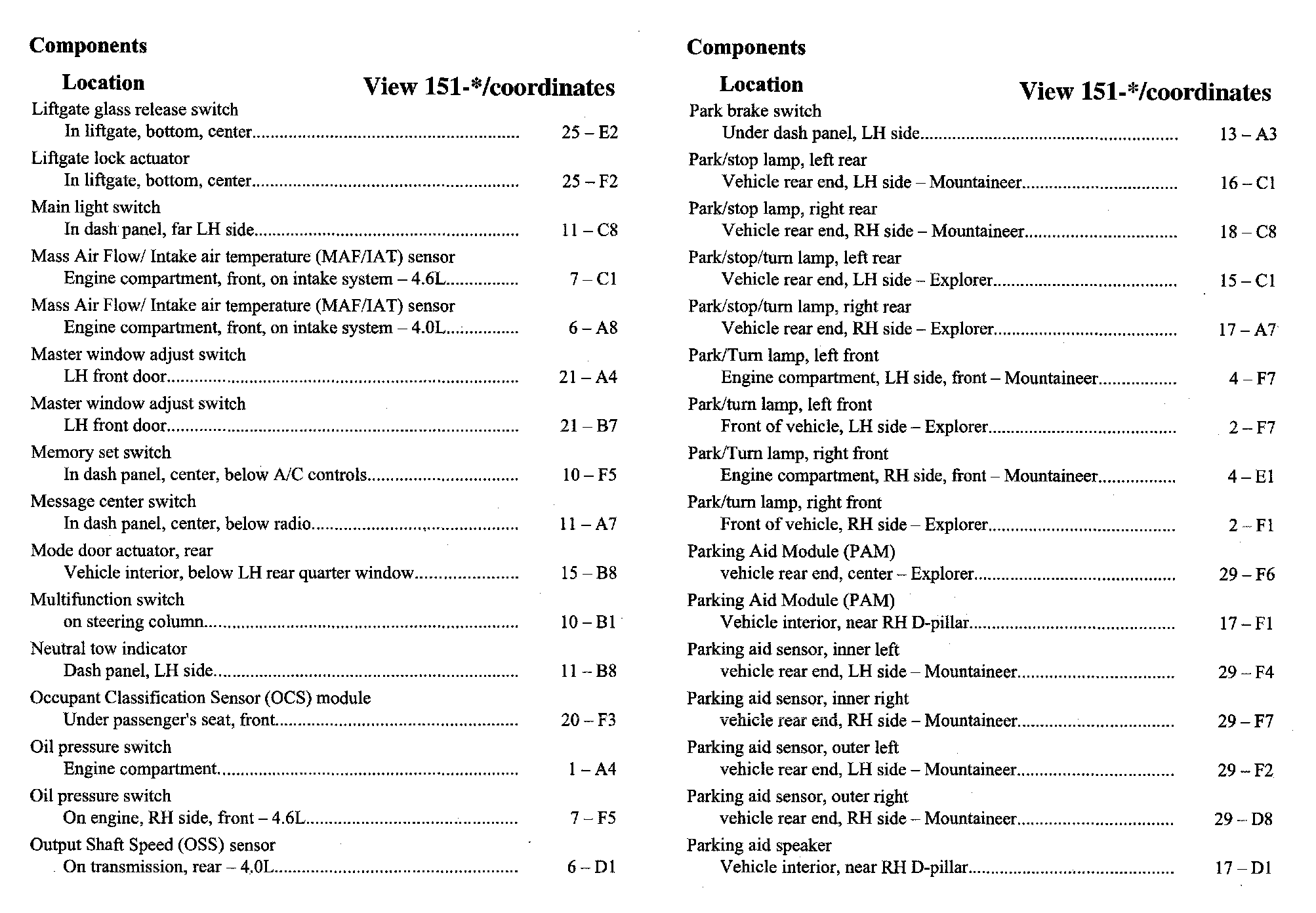

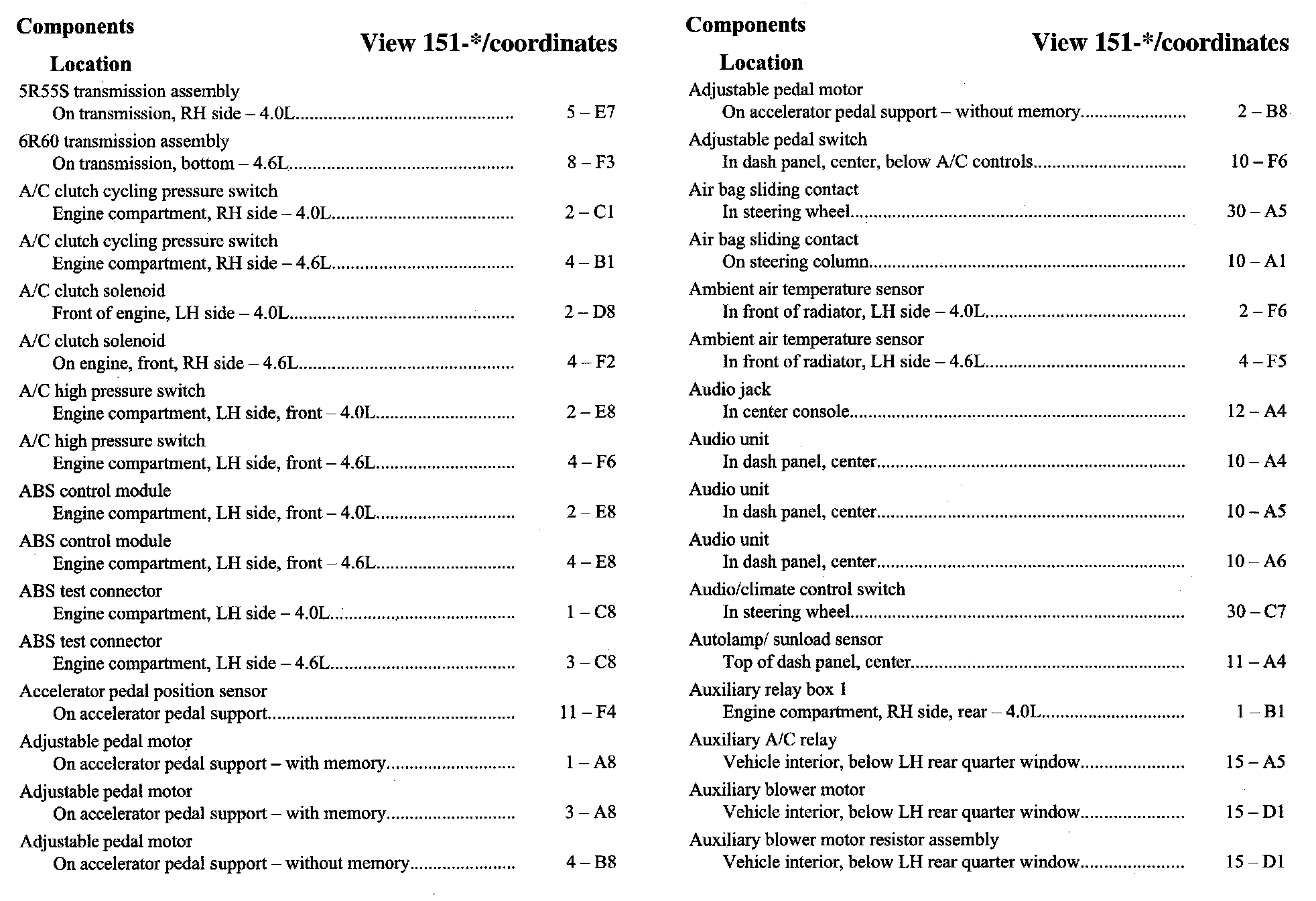

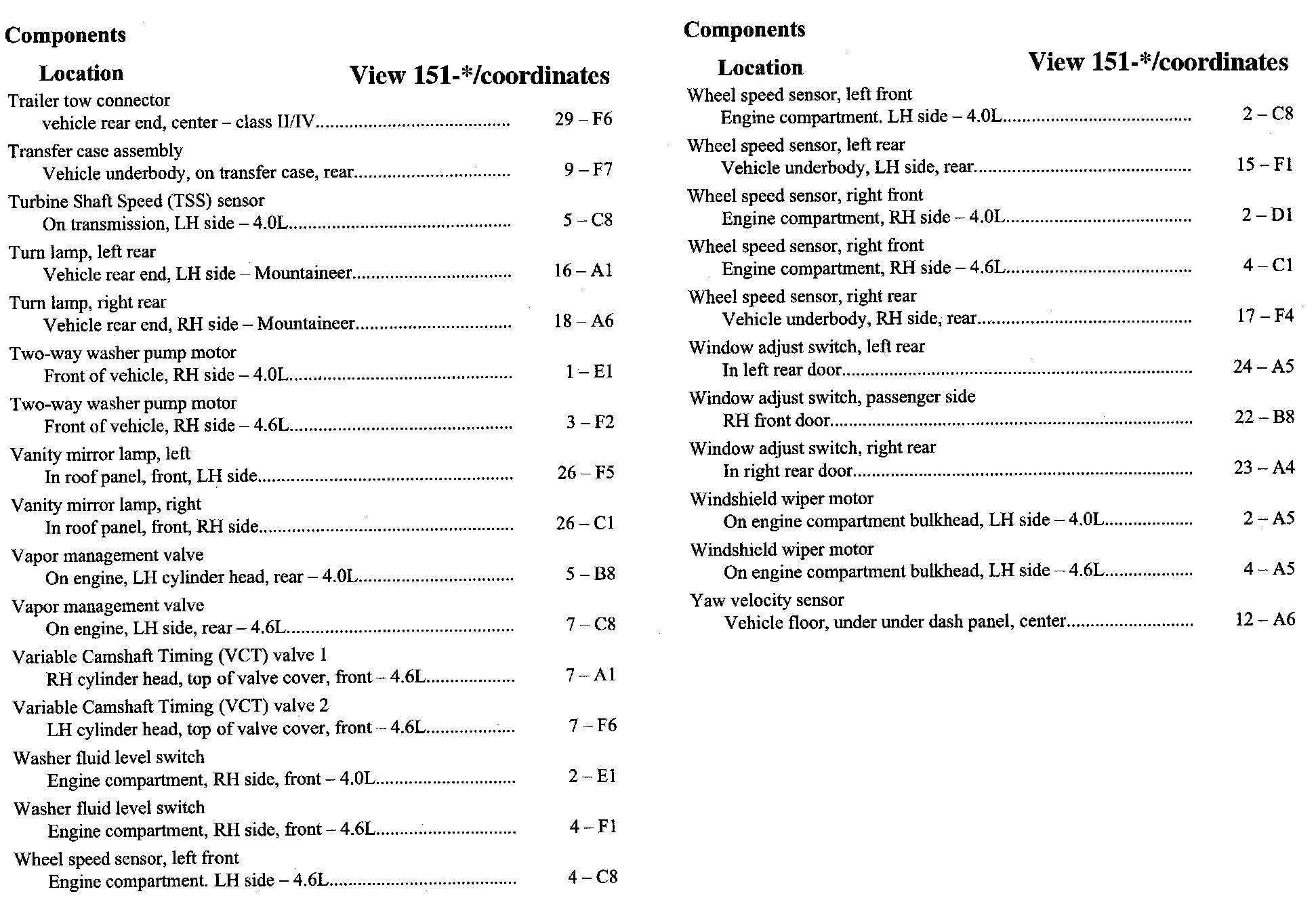

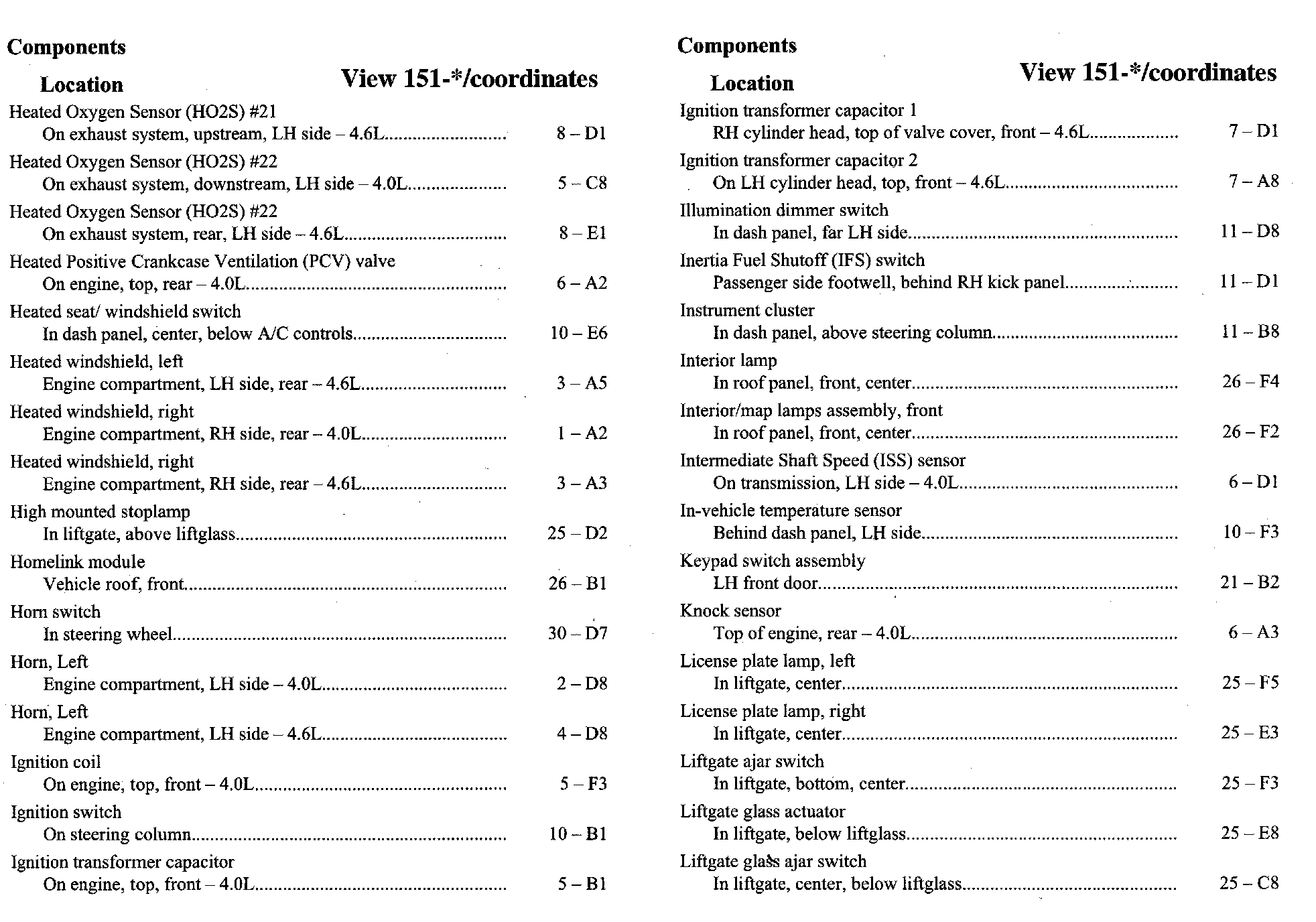

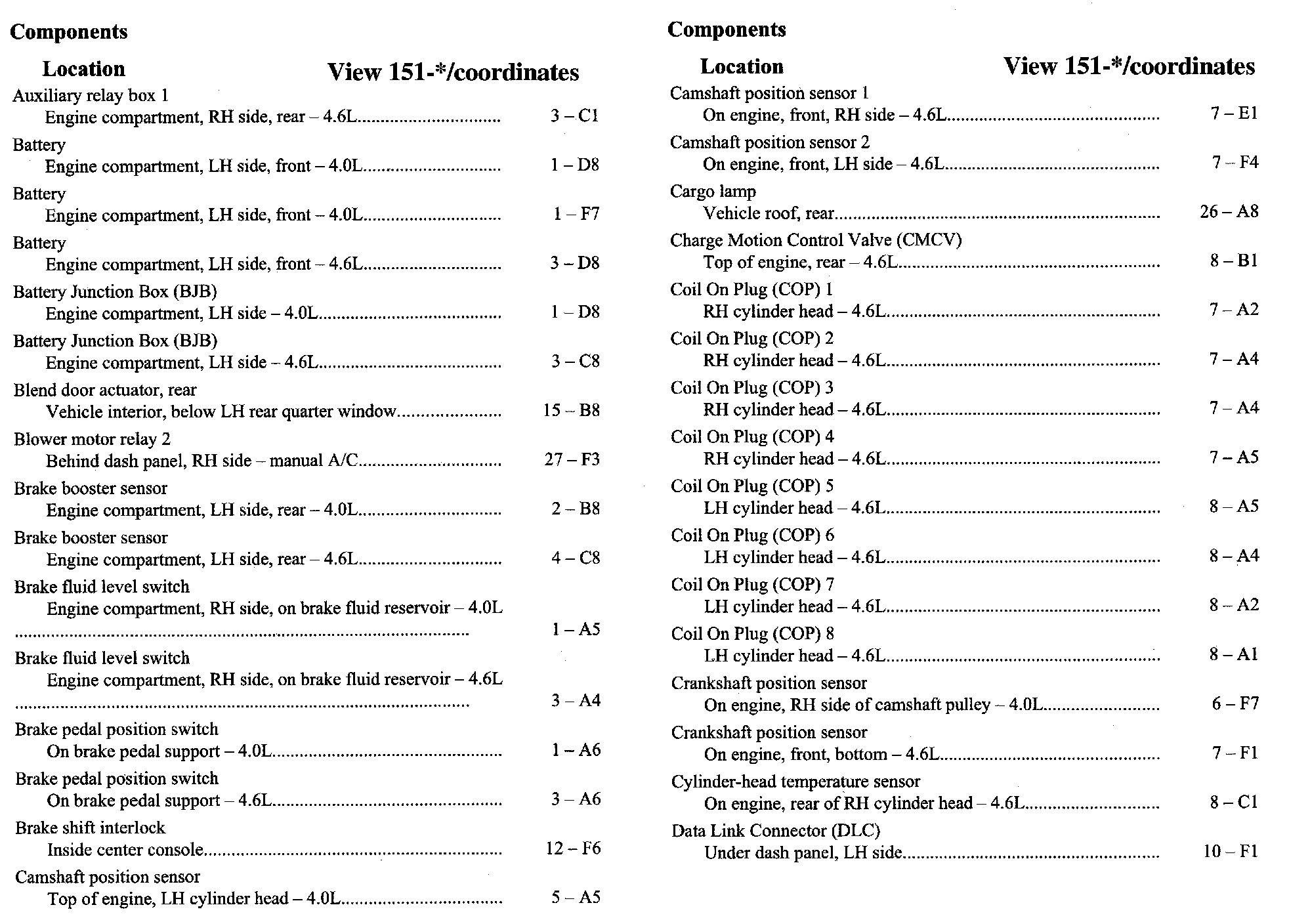

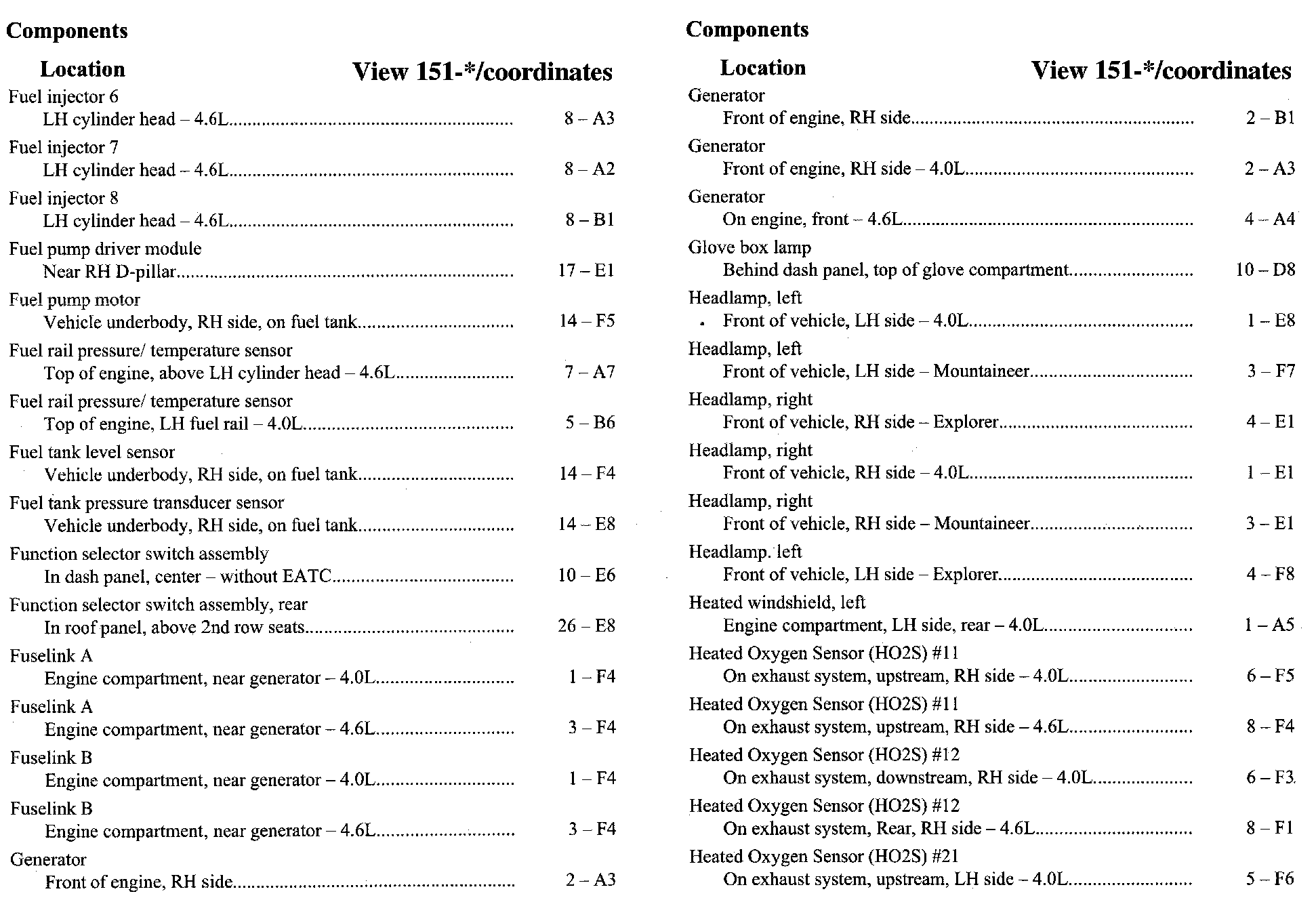

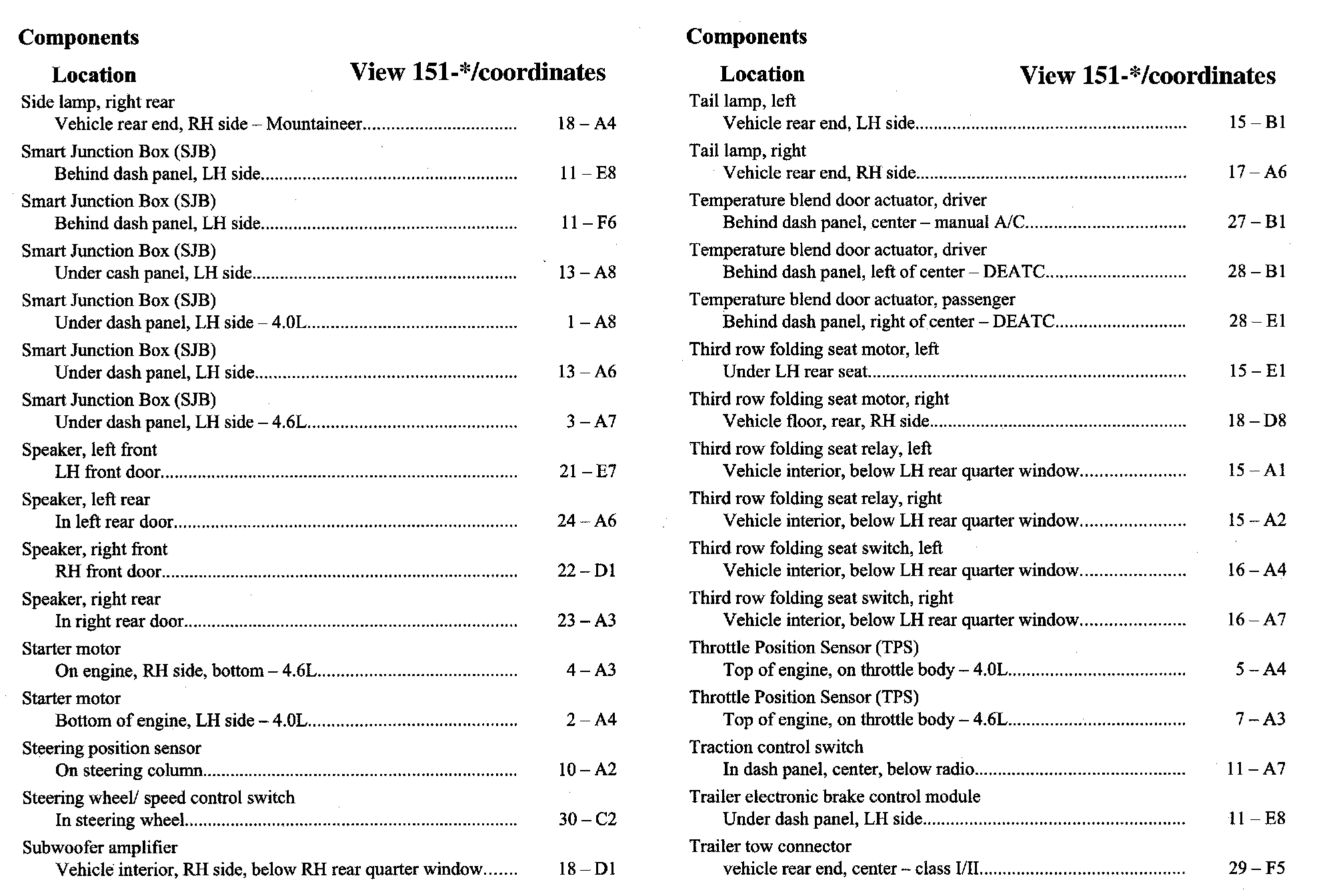

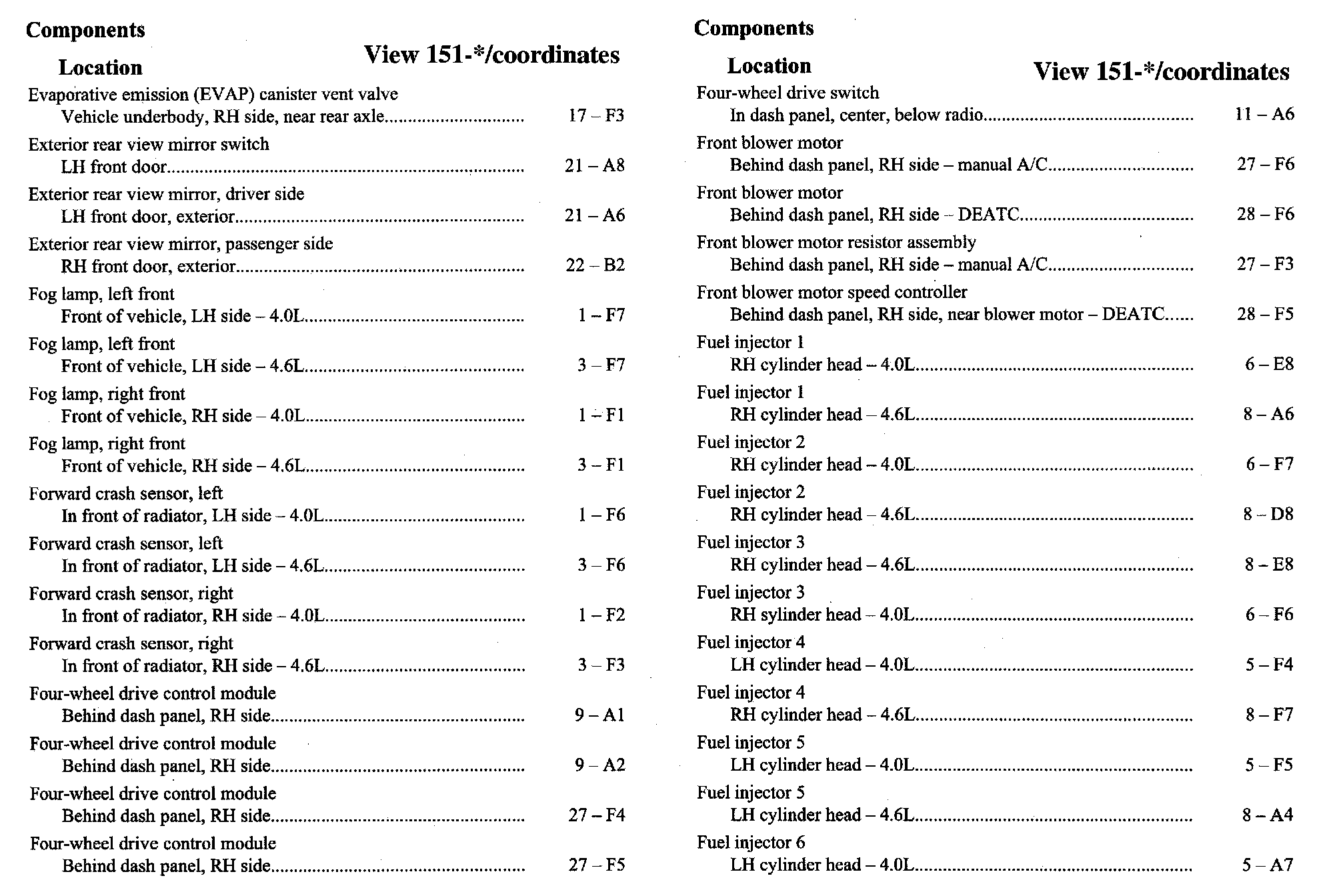

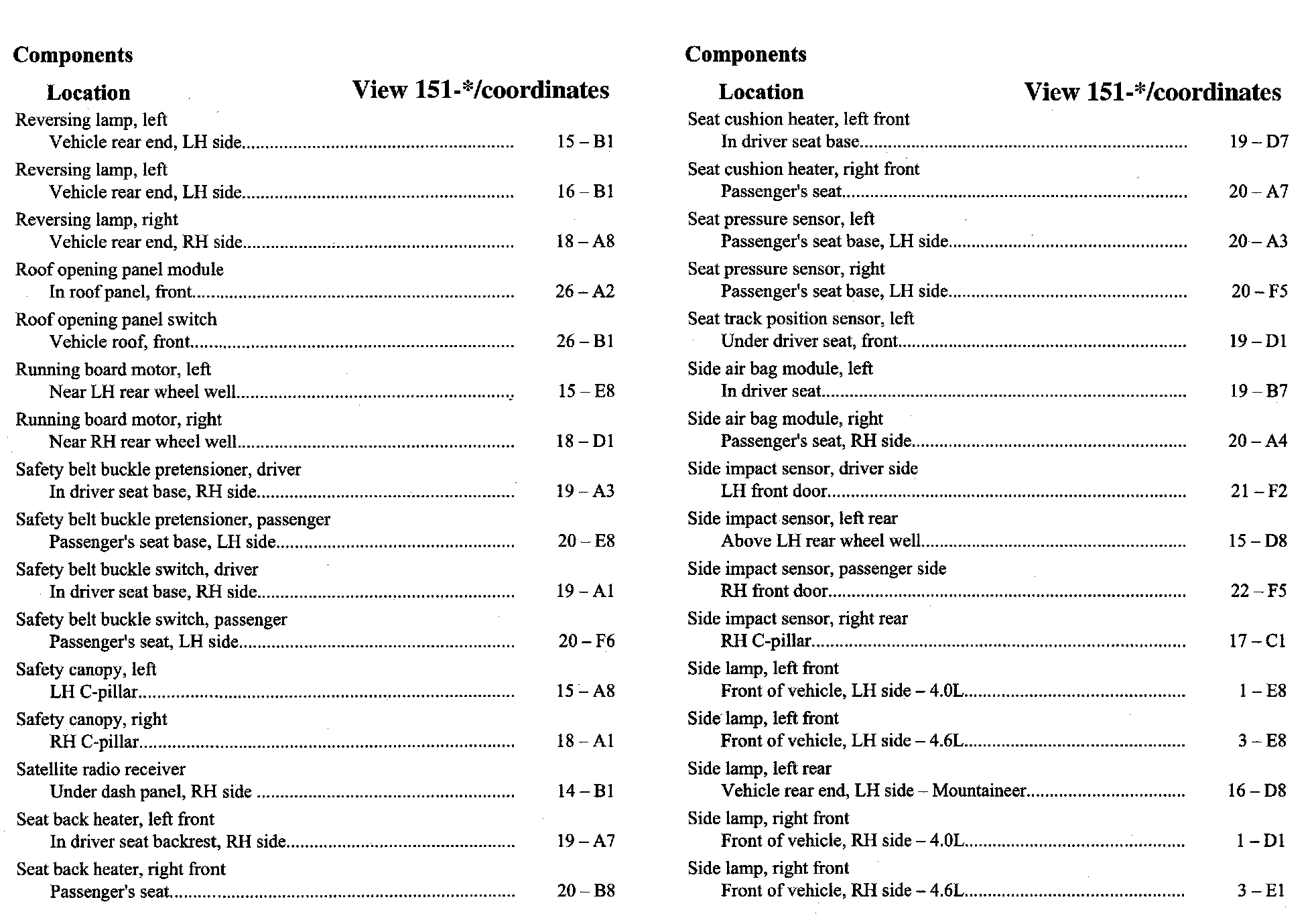

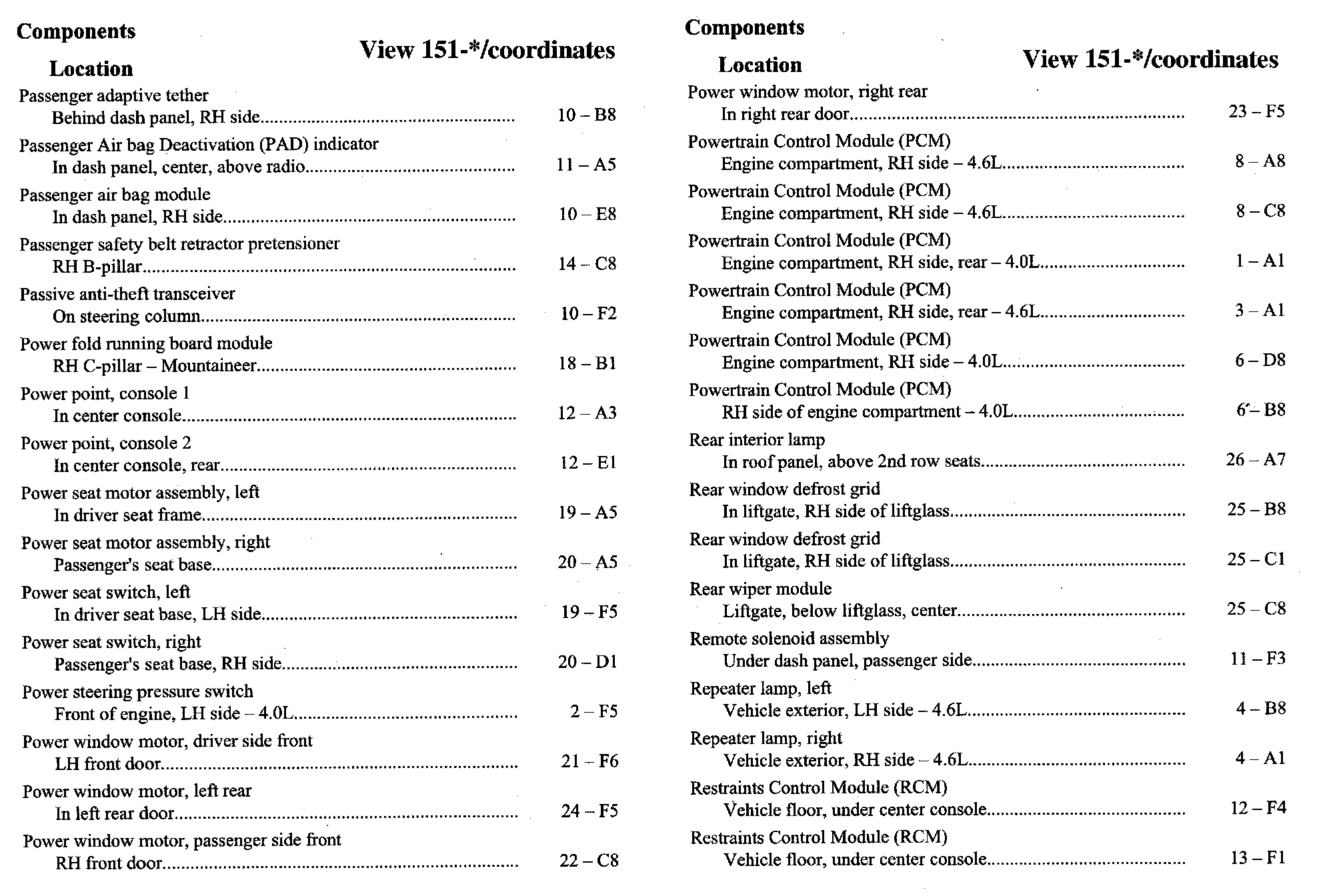

Component Location Index

PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

5R-Au:

Au-Da:

De-En:

Ev-Fu:

Fu-He:

He-Li:

Li-Pa:

Pa-Re:

Re-Si:

Si-Tr:

Tr-Ya:
