Timing Components

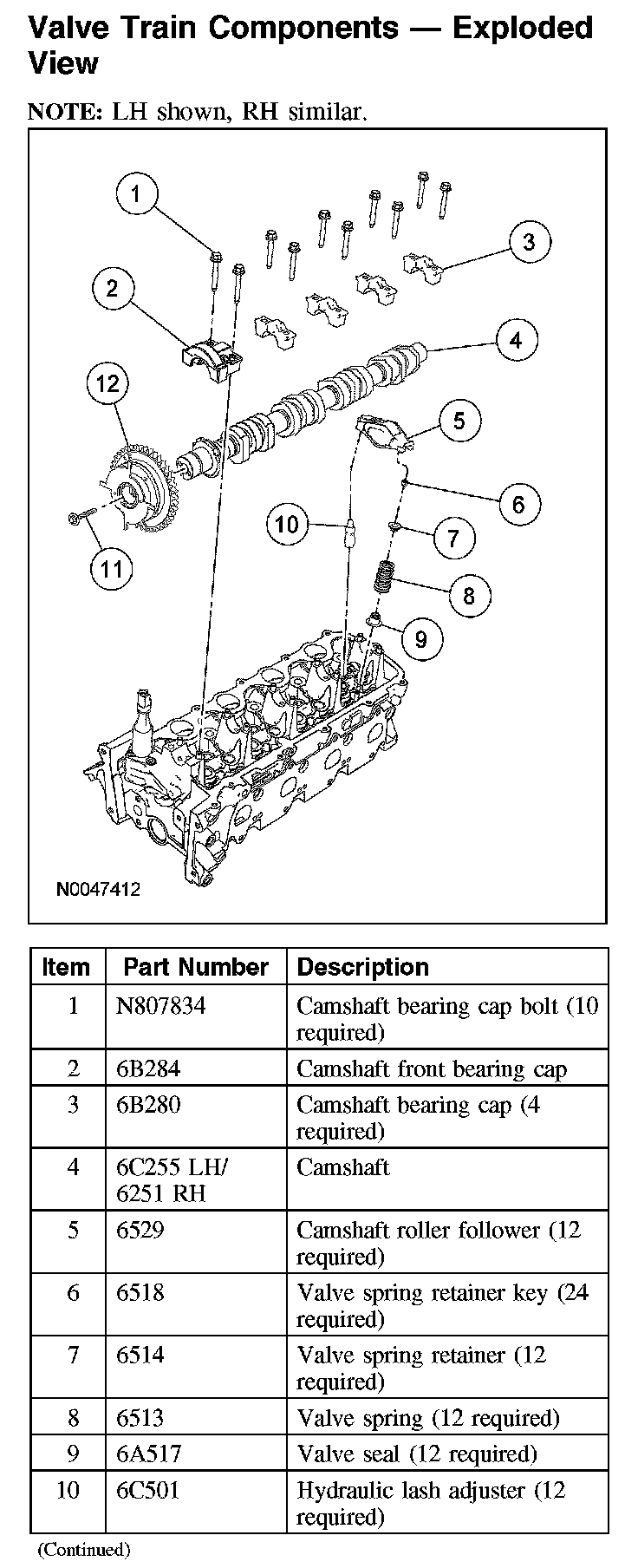

Valve Train Components - Exploded View

NOTE: LH shown, RH similar.

Note: LH Shown, RH Similar.:

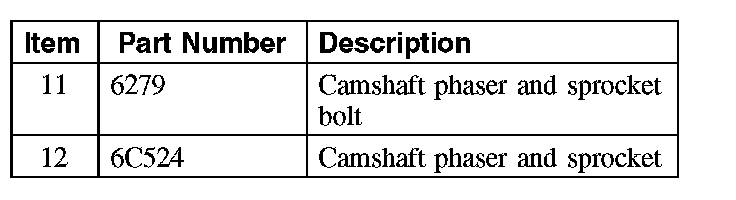

Valve Train Components - Exploded View (Part 2):
