Exhaust System

Exhaust System - Exploded View

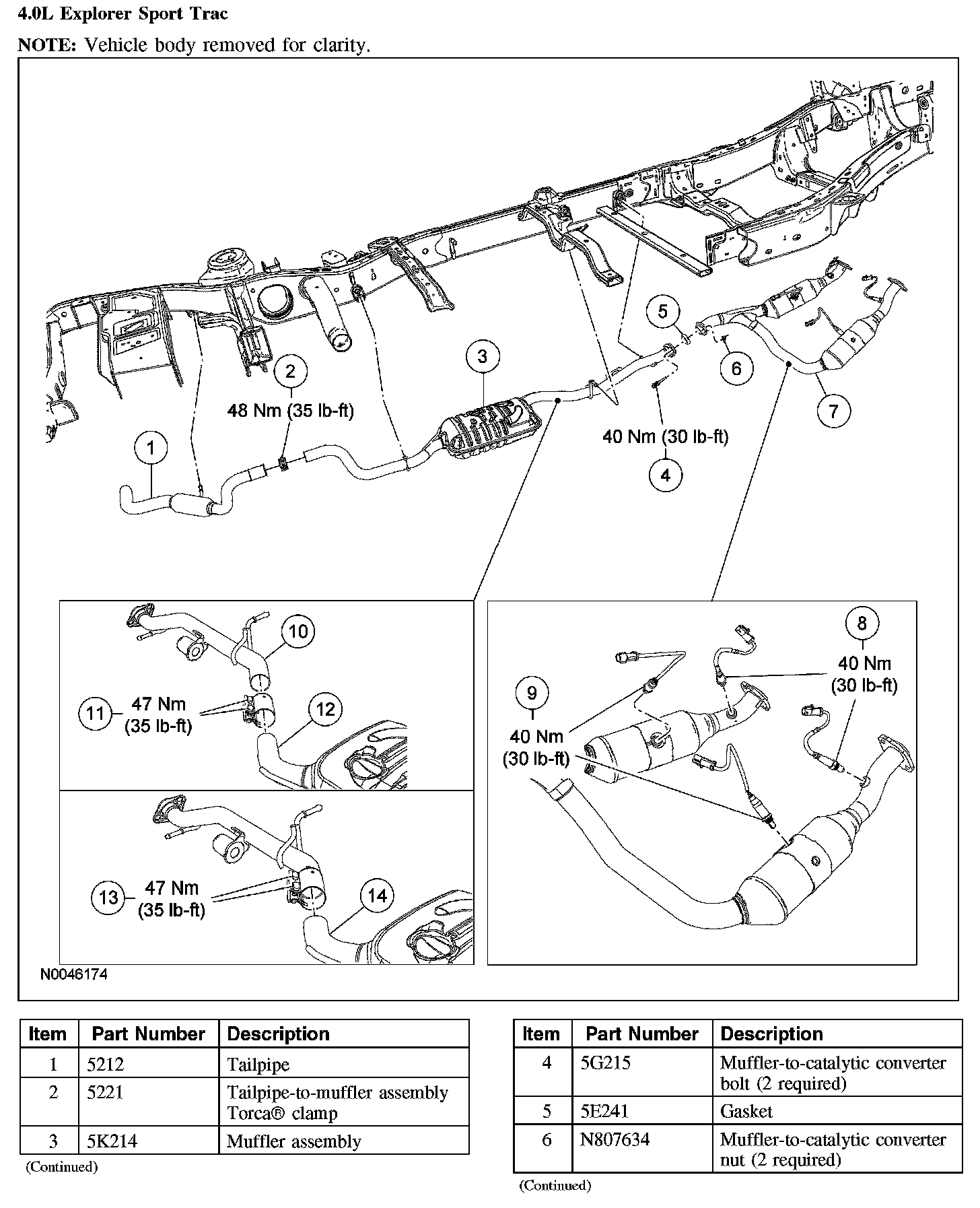

4.0L Explorer Sport Trac

NOTE: Vehicle body removed for clarity.

Note: Vehicle Body Removed For Clarity.:

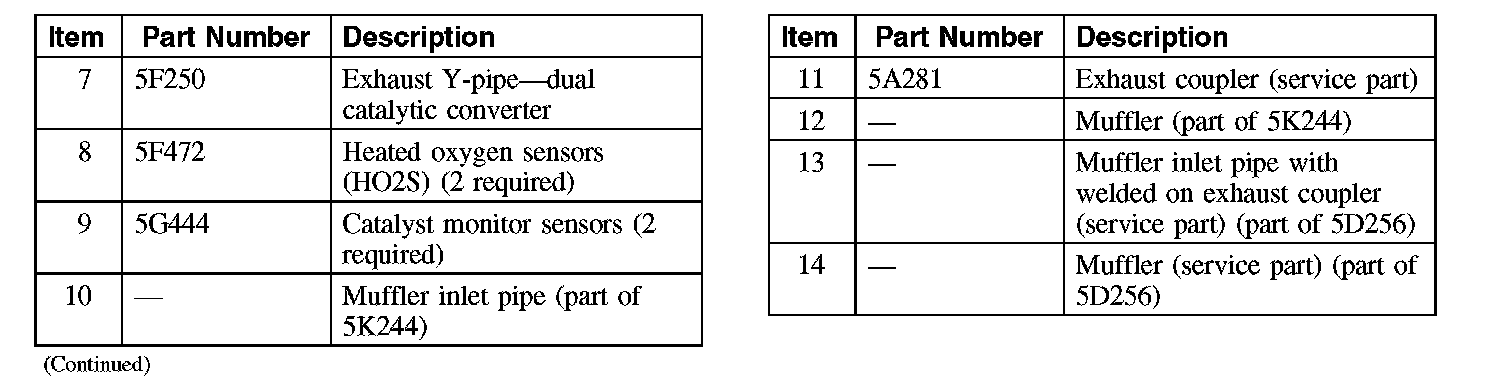

4.0L Explorer Sport Trac (Part 2):

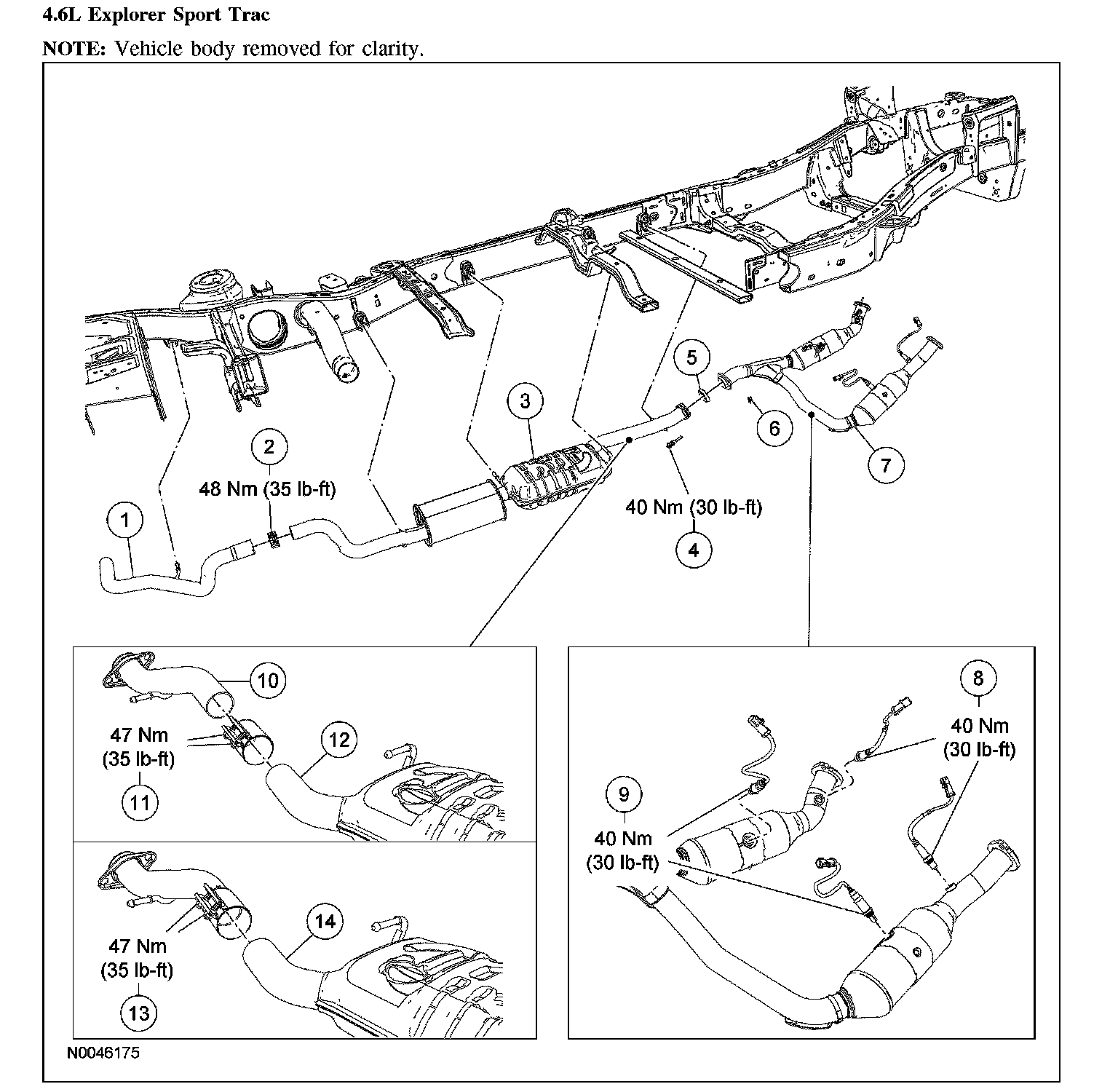

4.6L Explorer Sport Trac

NOTE: Vehicle body removed for clarity.

Note: Vehicle Body Removed For Clarity.:

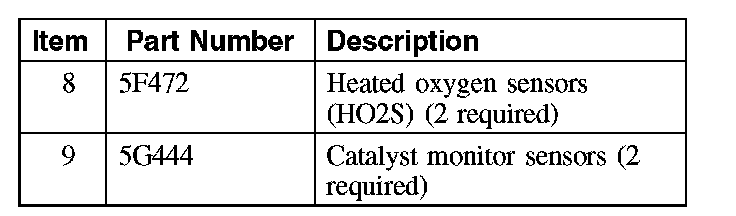

4.6L Explorer Sport Trac (Part 2):

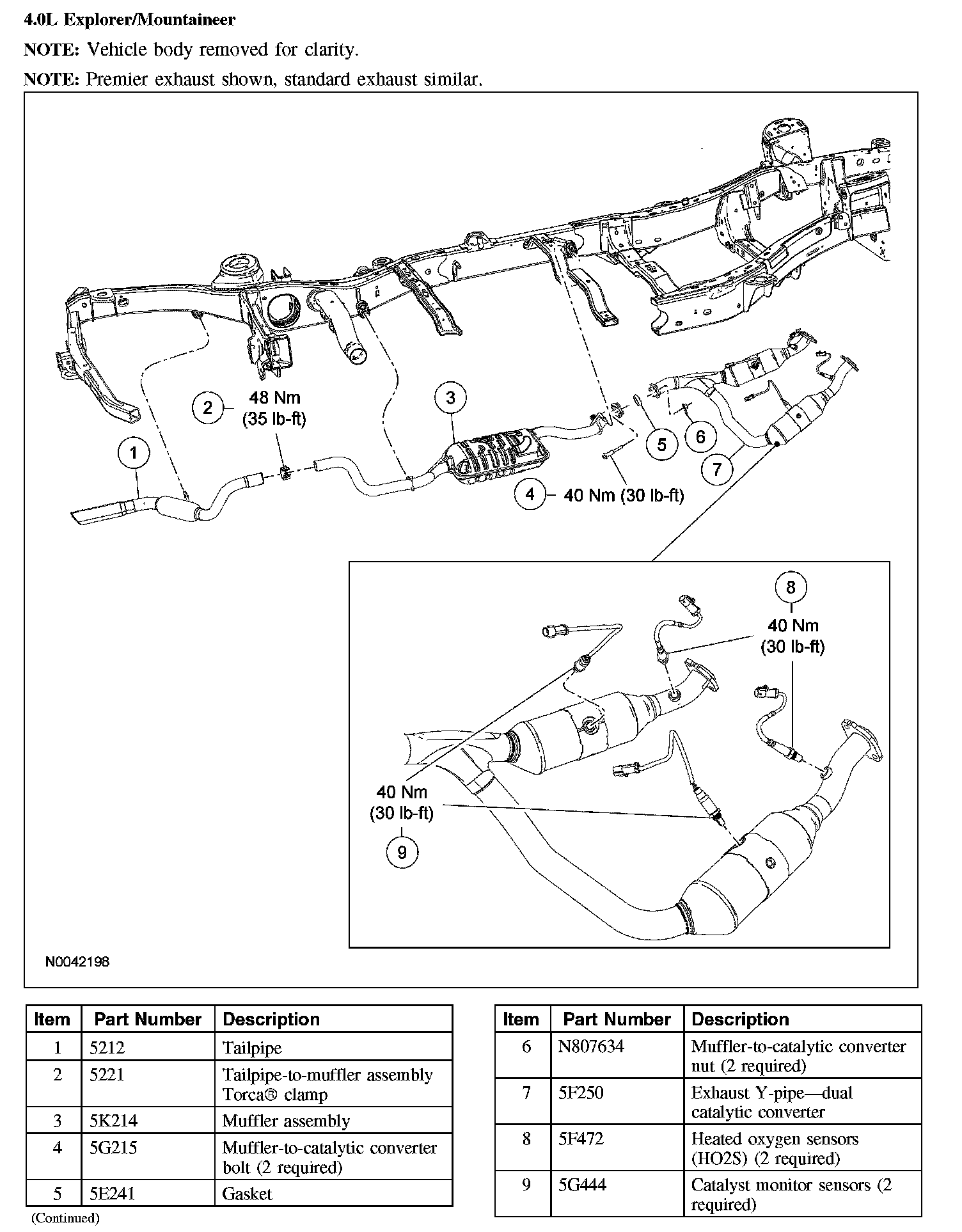

4.0L Explorer/Mountaineer

NOTE: Vehicle body removed for clarity.

NOTE: Premier exhaust shown, standard exhaust similar.

Note: Vehicle Body Removed For Clarity. Note: Premier Exhaust Shown, Standard Exhaust Similar.:

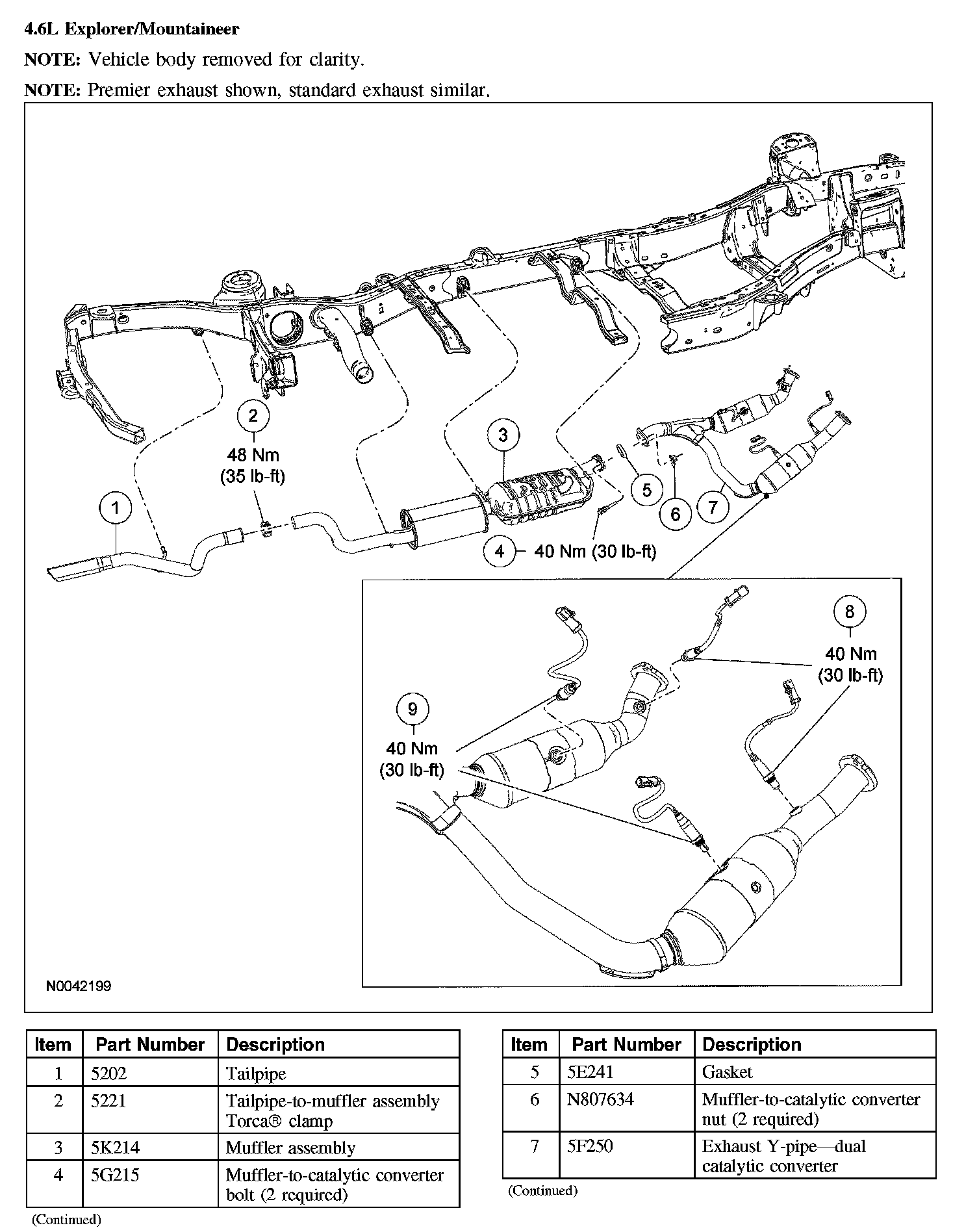

4.6L Explorer/Mountaineer

NOTE: Vehicle body removed for clarity.

NOTE: Premier exhaust shown, standard exhaust similar.

Note: Vehicle Body Removed For Clarity. Note: Premier Exhaust Shown, Standard Exhaust Similar.:

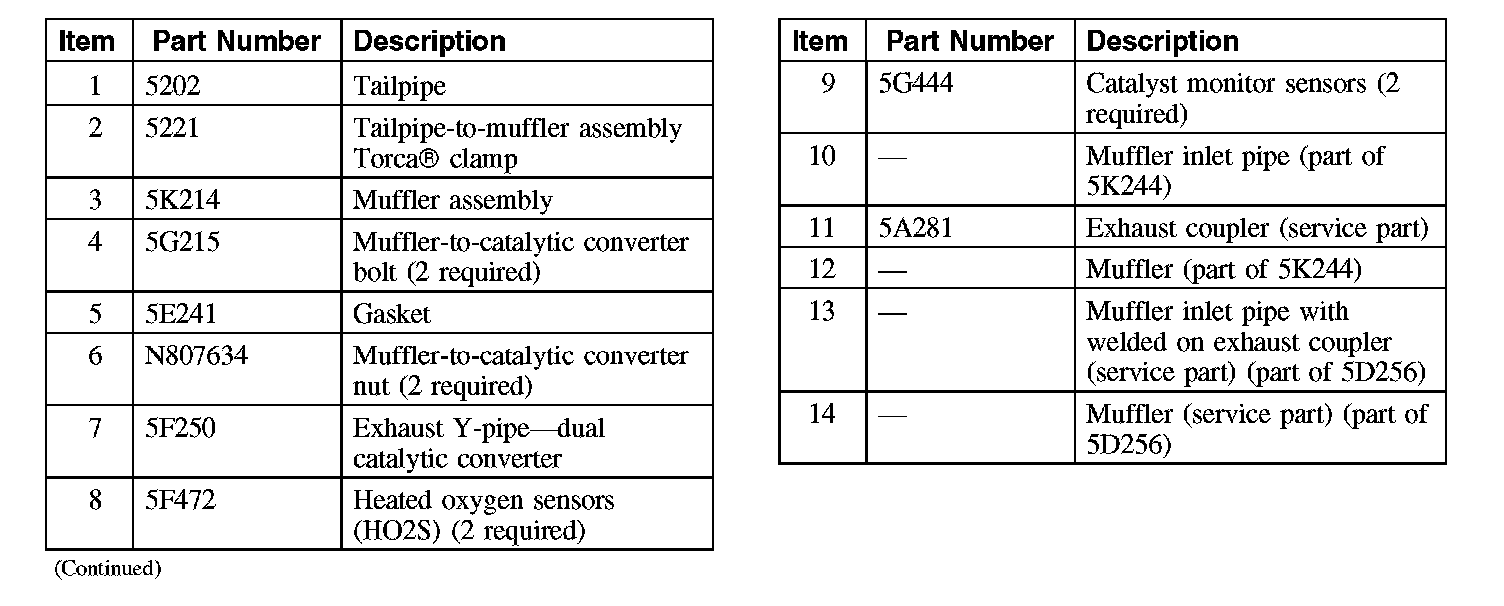

4.6L Explorer/Mountaineer (Part 2):
