Intake Manifold

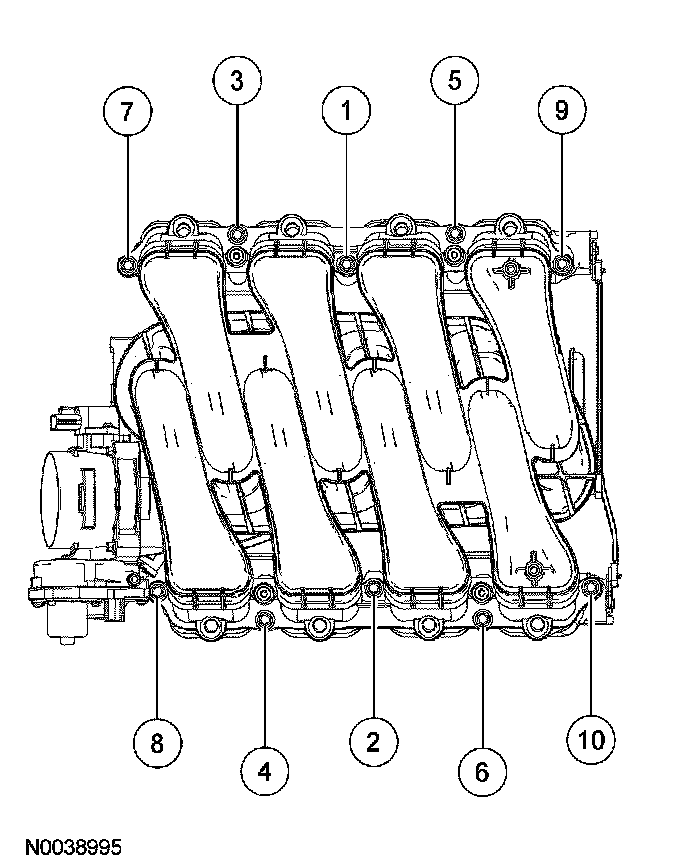

Intake Manifold Bolts
Stage 1: Tighten to 2 Nm (18 inch lbs.).
Stage 2: Tighten to 10 Nm (89 inch lbs.).

Throttle body bolts 10 Nm (89 inch lbs.)
