Cruise Control Servo: Service and Repair

SPEED CONTROL ACTUATOR







Removal and Installation

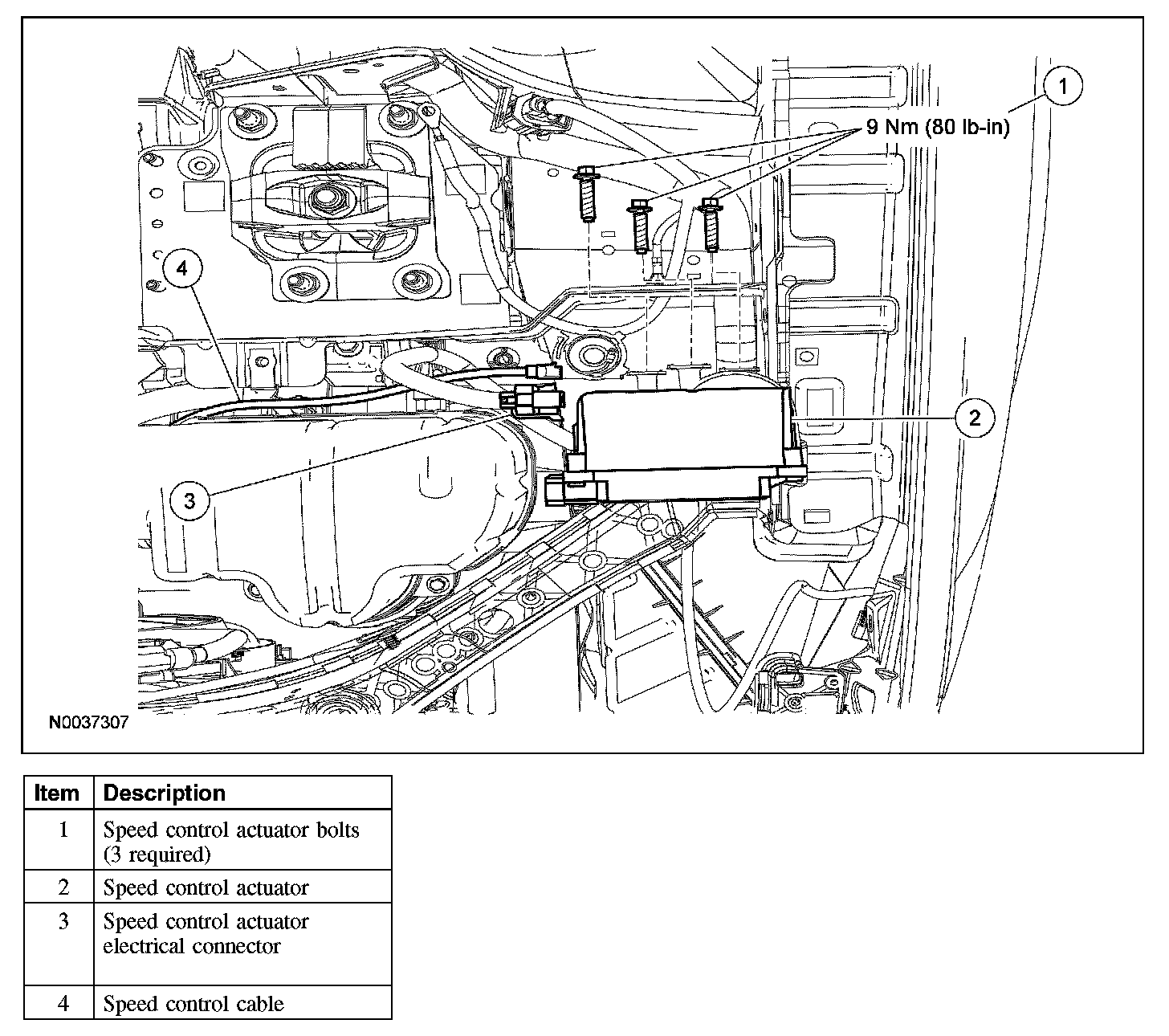

1. Disconnect the speed control actuator electrical connector.
2. Remove the 3 bolts and the speed control actuator.
- To install, tighten to 9 Nm (80 lb-in).

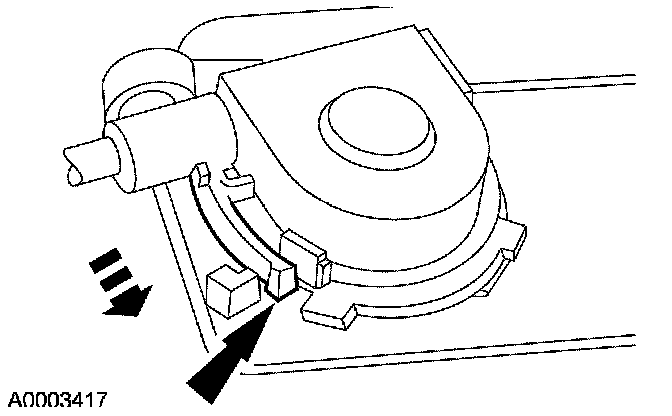

3. Press the locking tab and rotate the speed control cable cover counterclockwise to remove.







4. Remove the speed control cable.

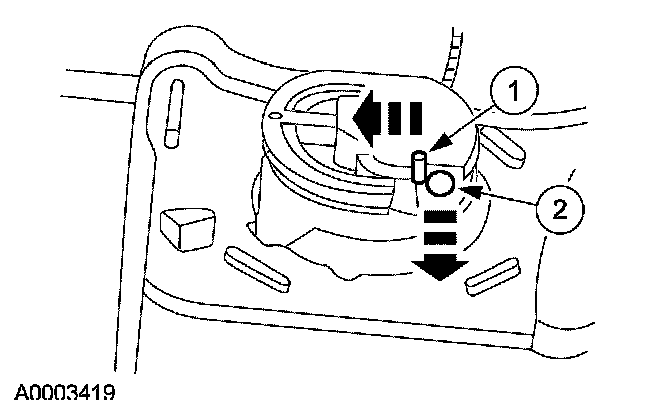

1 Press the spring retainer.
2 Slide the core wire end out of the speed control actuator pulley and disconnect the speed control actuator cable.

5. NOTE: Make sure downward pressure is applied to the speed control actuator cable cover prior to rotating it clockwise.

To install, reverse the removal procedure.
