Test G: Flash Code 2 - Stoplamp Switch Circuit Failure

PINPOINT TEST G: FLASH CODE 2 - STOPLAMP SWITCH CIRCUIT FAILURE

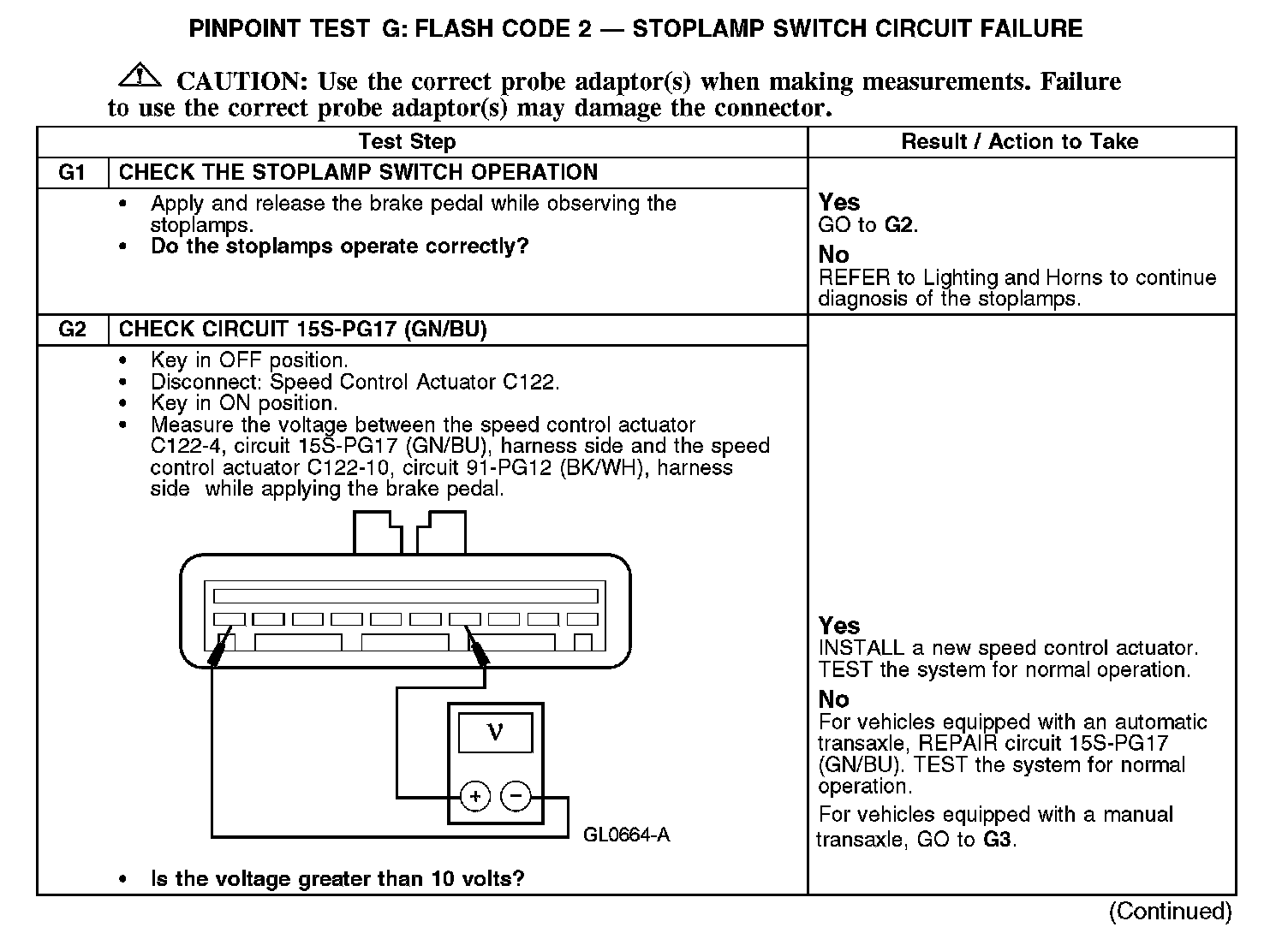

G1-G2:

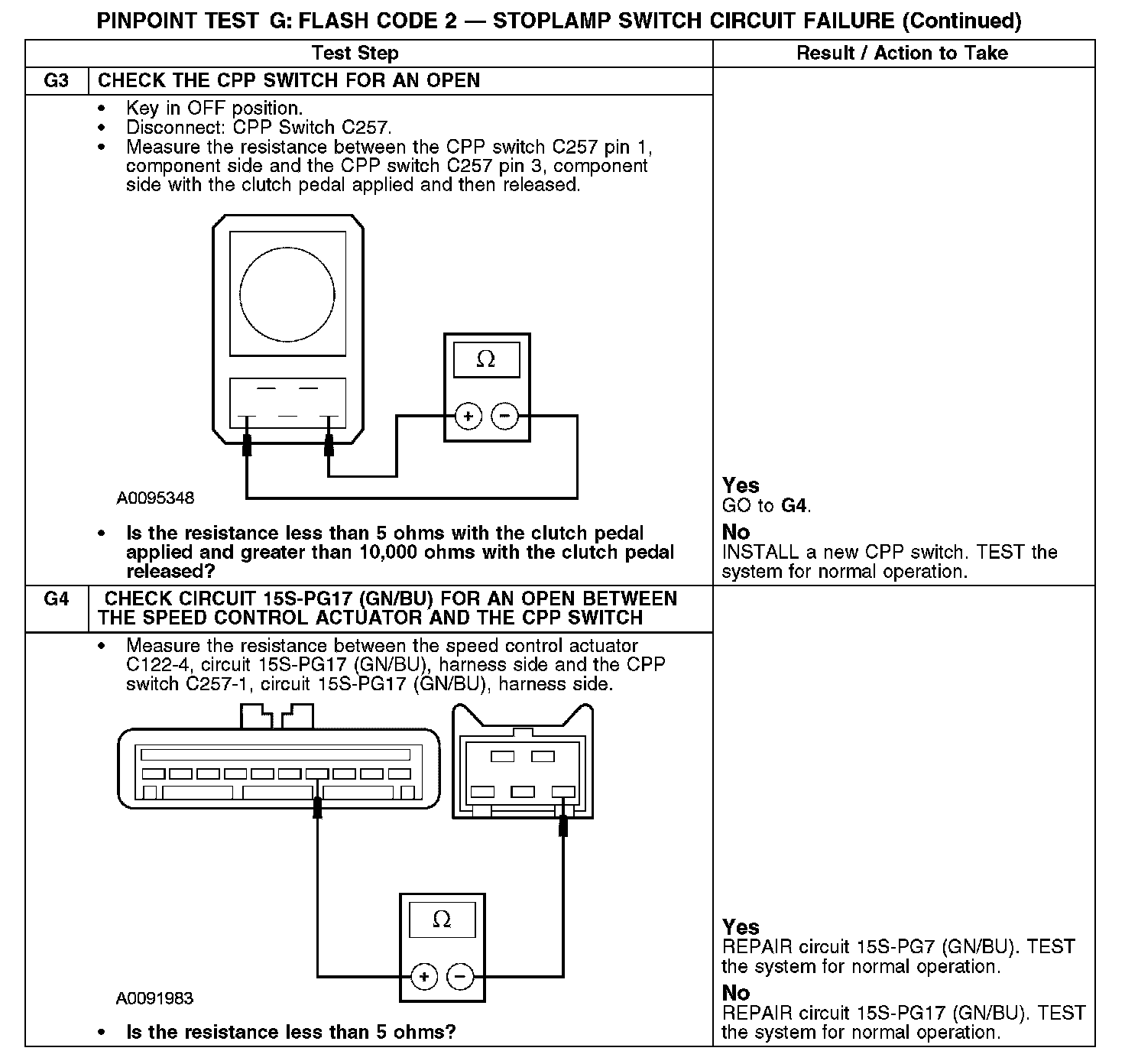

G3-G4:

Normal Operation
The speed control actuator receives a voltage signal through circuit 15S-PG17 (GN/YE) from the stoplamp switch when the brake pedal is applied and the clutch pedal (if equipped) is released.

Possible Causes
- Circuit 15S-PG7 (GN/BU) open
- Circuit 15S-PG17 (GN/BU) open
- Speed control actuator
- Stoplamp switch
- Clutch pedal position (CPP) switch
