Test H: Flash Code 3 - Speed Control Deactivator Switch Circuit Failure

PINPOINT TEST H: FLASH CODE 3 - SPEED CONTROL DEACTIVATOR SWITCH CIRCUIT FAILURE

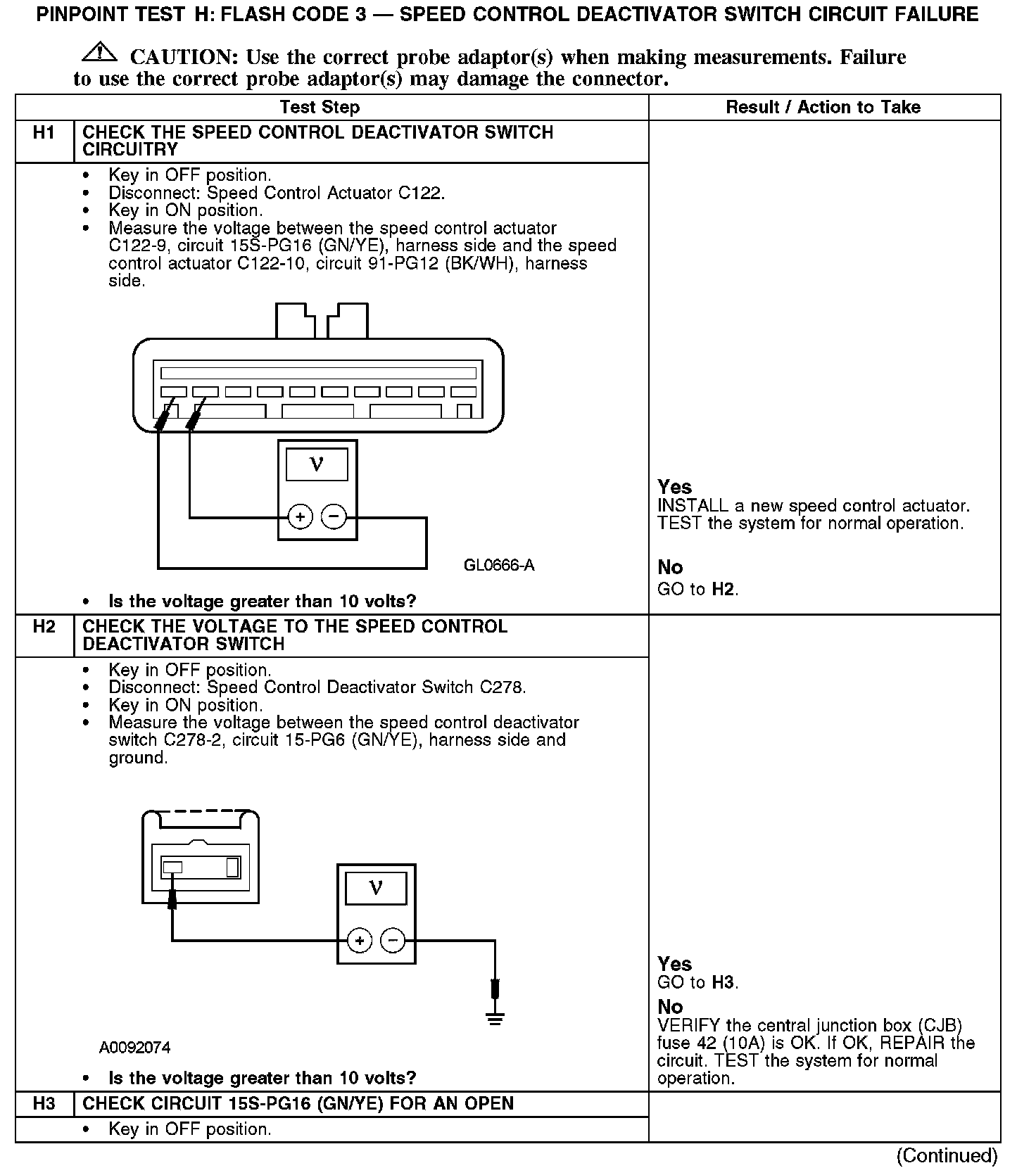

H1-H3:

H3 Continued:

Normal Operation
Voltage is supplied to the speed control deactivator switch through circuit 15-PG6 (GN/YE). The speed control deactivator switch sends a voltage signal through circuit 15S-PG16 (GN/YE) to the speed control actuator. When the brake pedal is applied, the voltage signal is removed from the speed control actuator and the speed control is deactivated.

Possible Causes
- Fuse
- Circuit 15-PG6 (GN/YE) open
- Circuit 15S-PG16 (GN/YE) open
- Speed control deactivator switch
