Engine Control Module

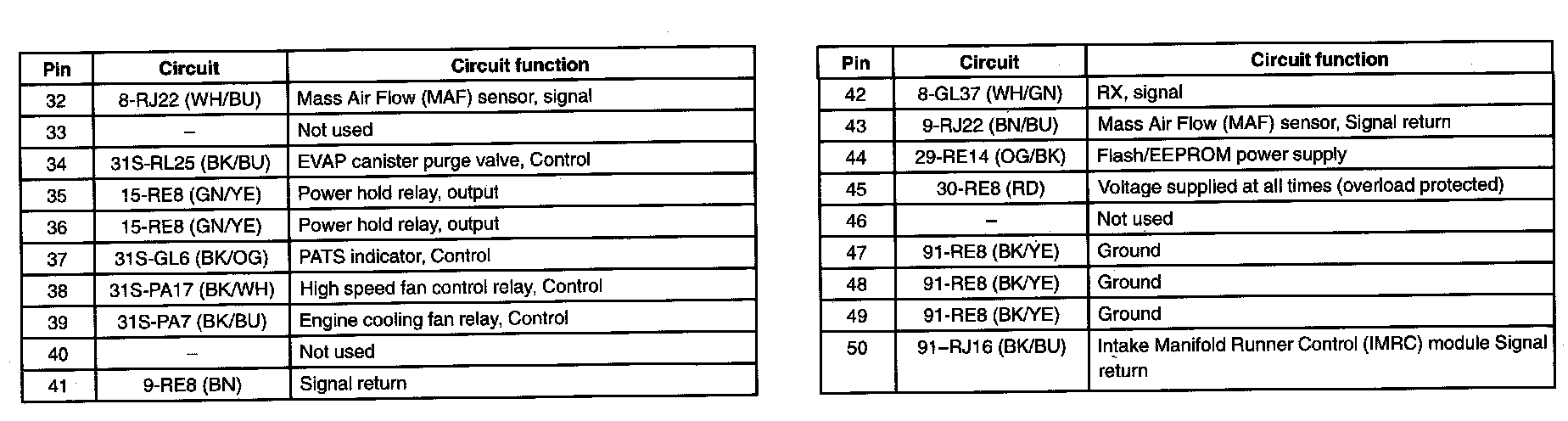

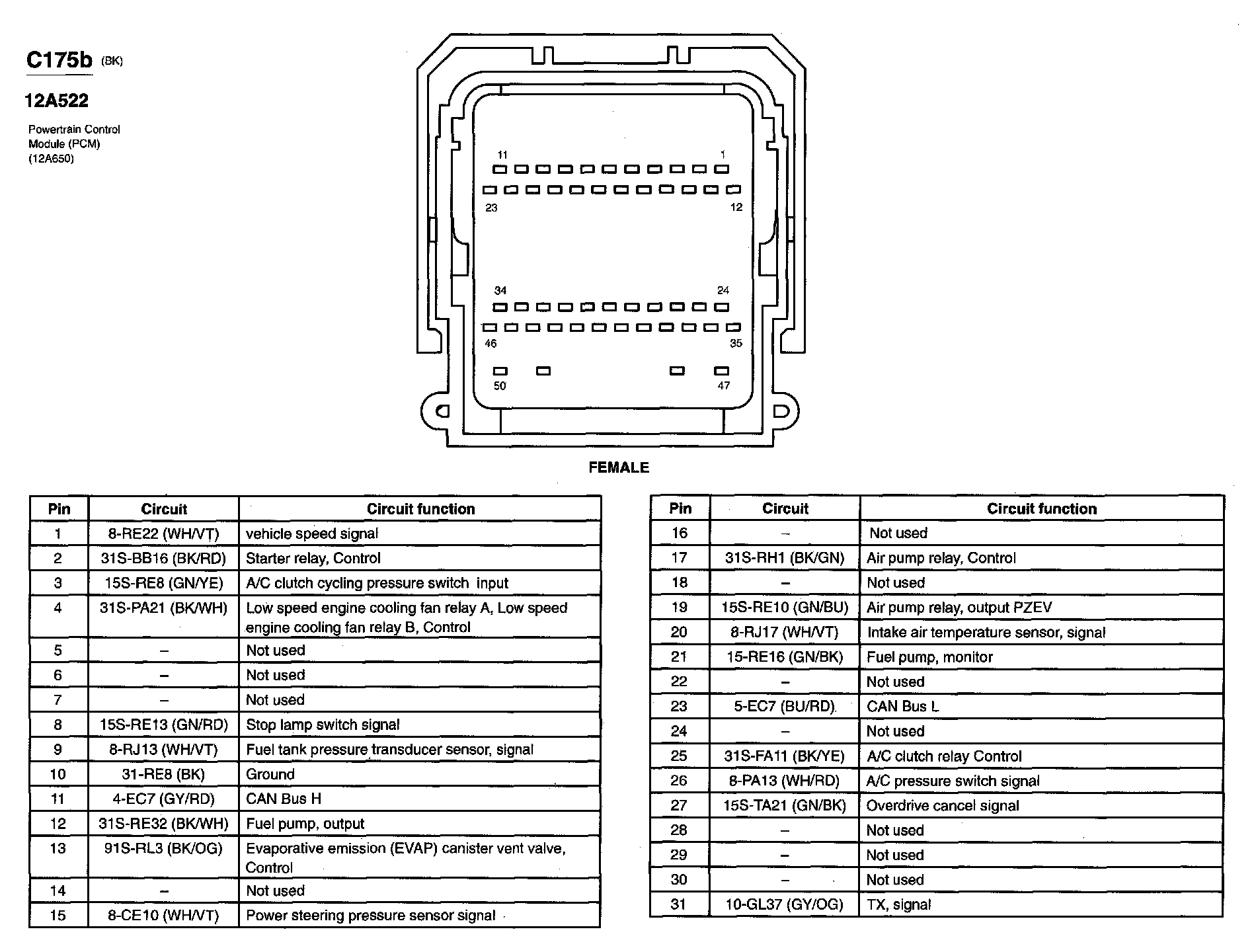

C175b (Part 1):
C175b (Part 2):

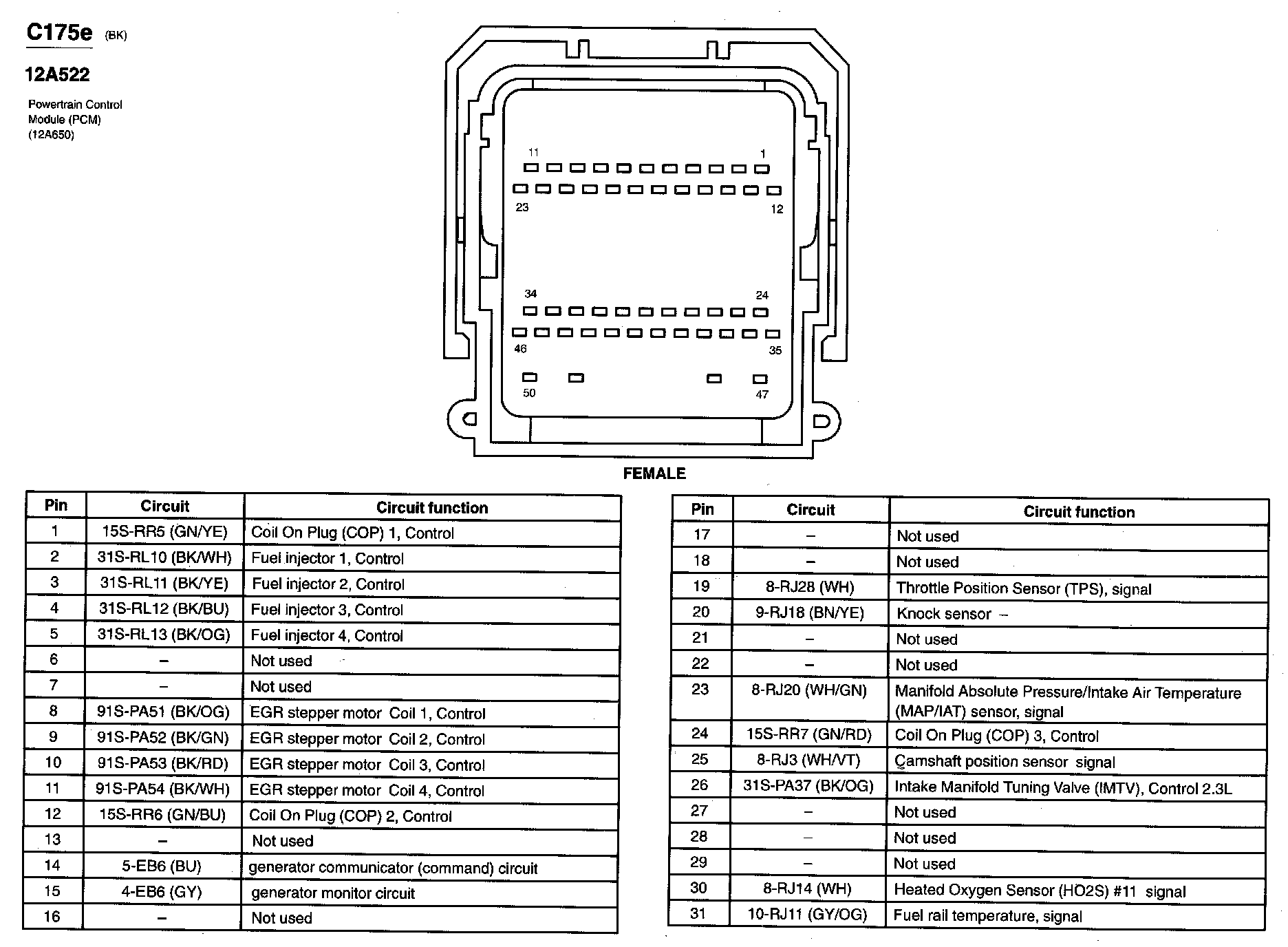

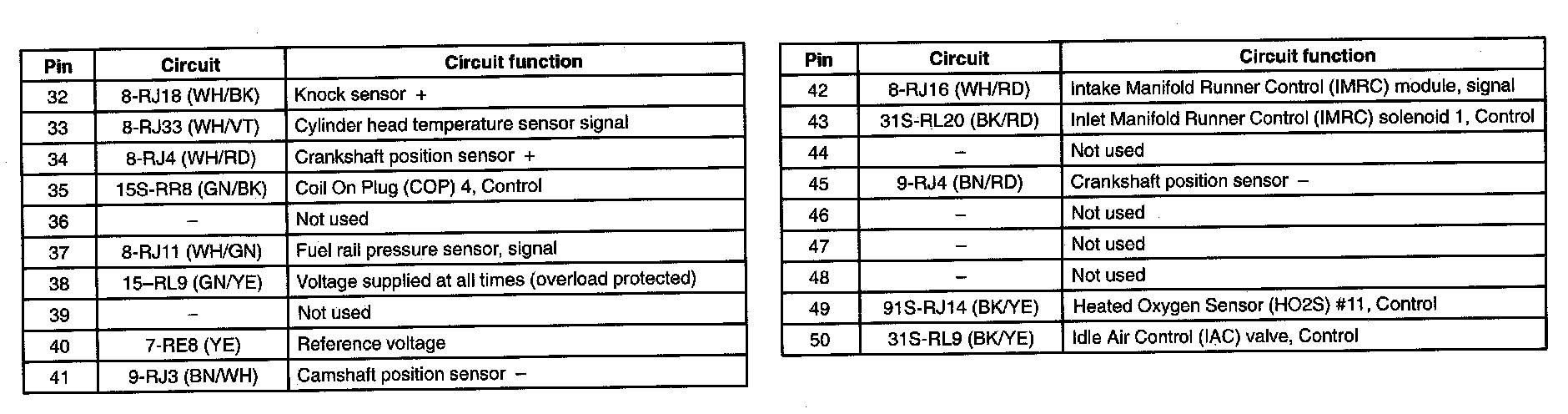

C175e (Part 1):
C175e (Part 2):

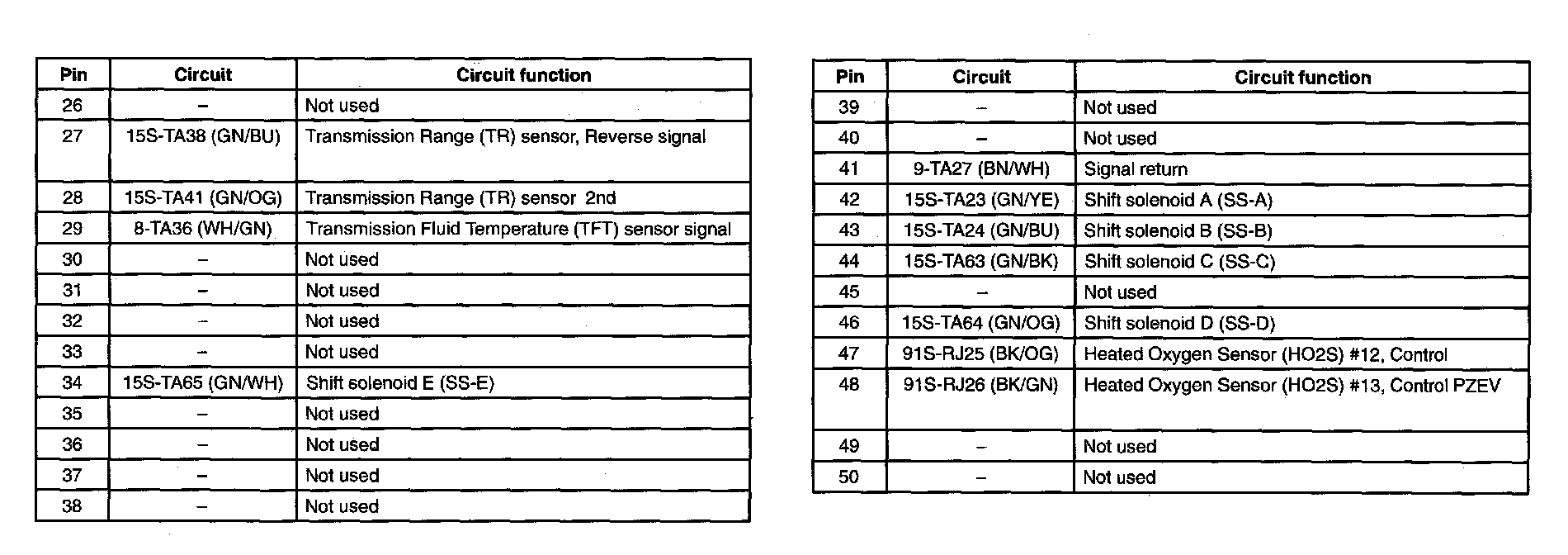

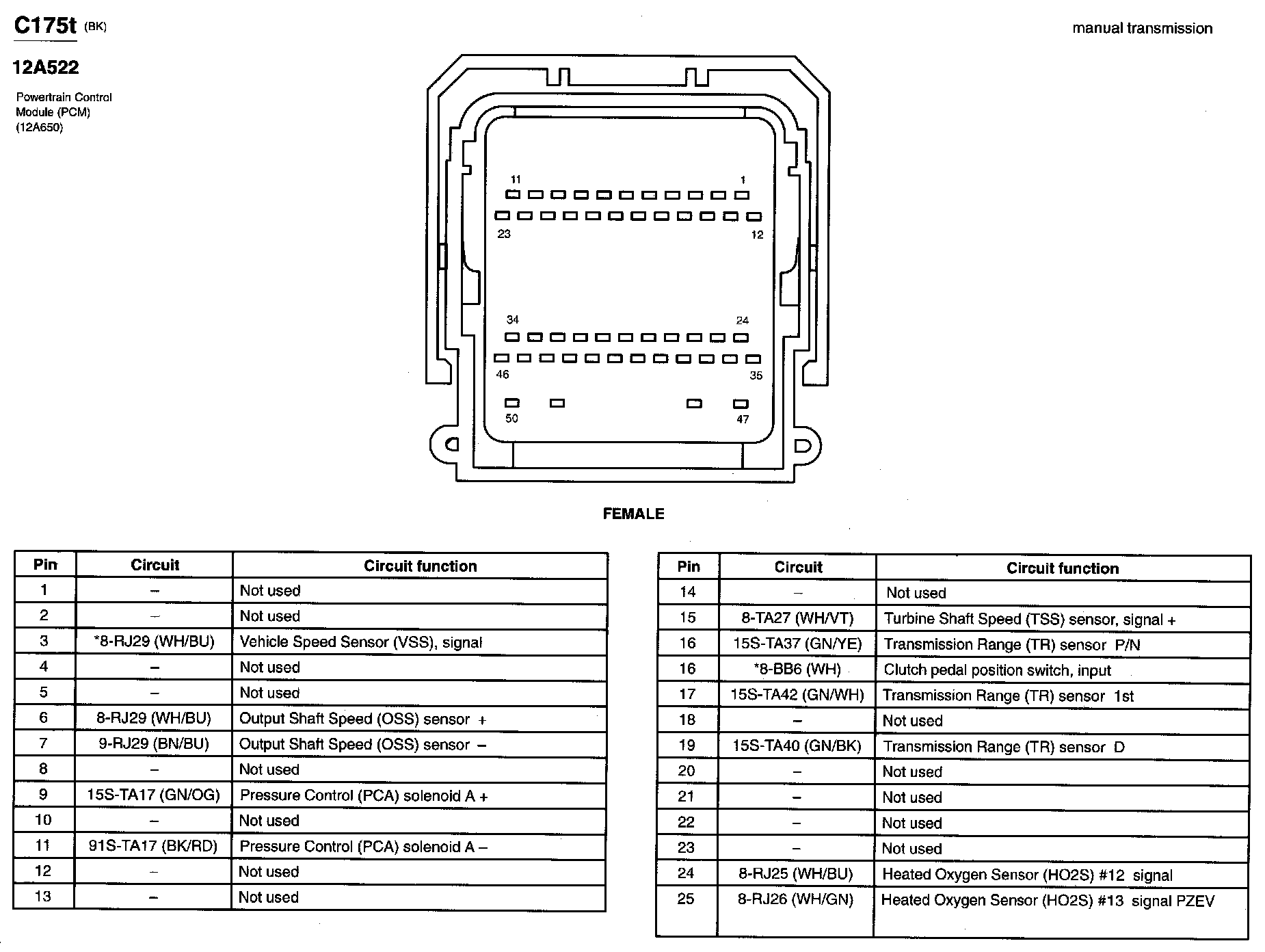

C175t (Part 1):
C175t (Part 2):
