System Diagram
Main Control Valve Body (Part 1):

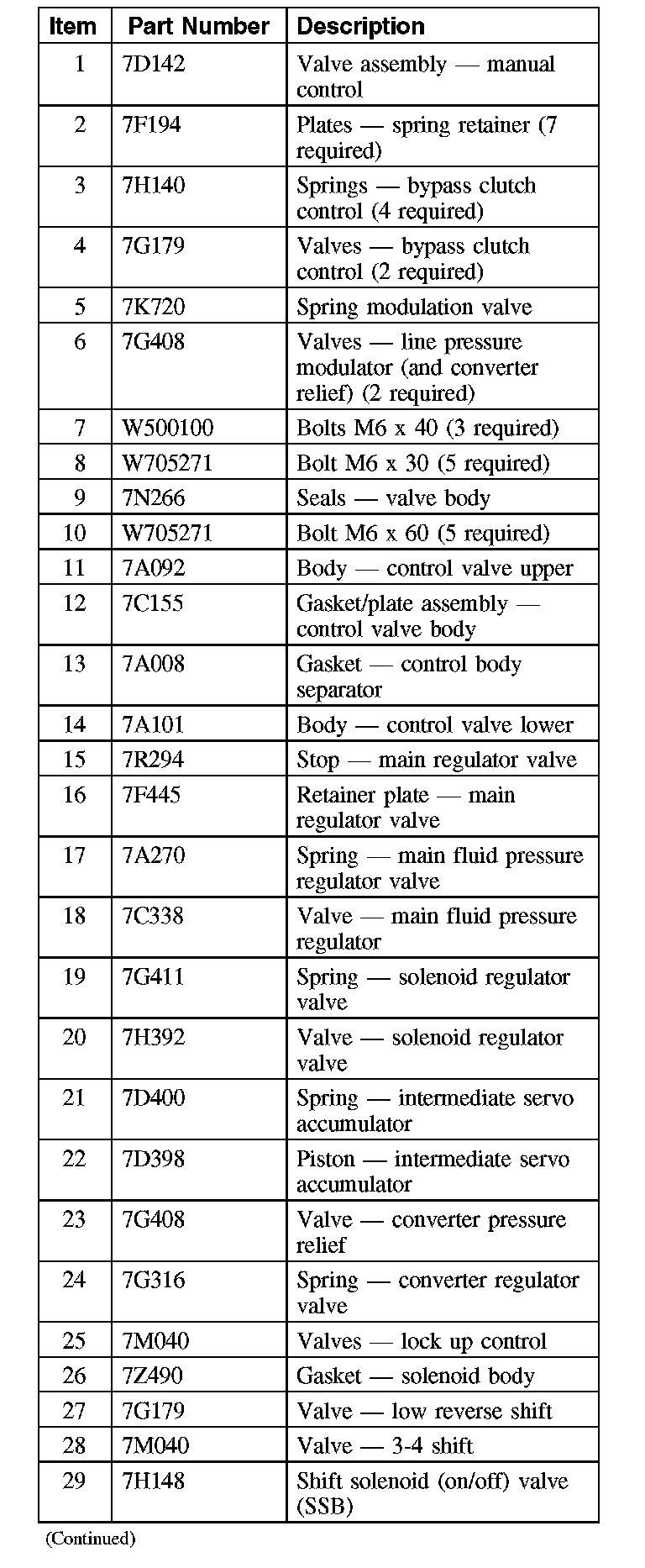

Main Control Valve Body (Part 2):

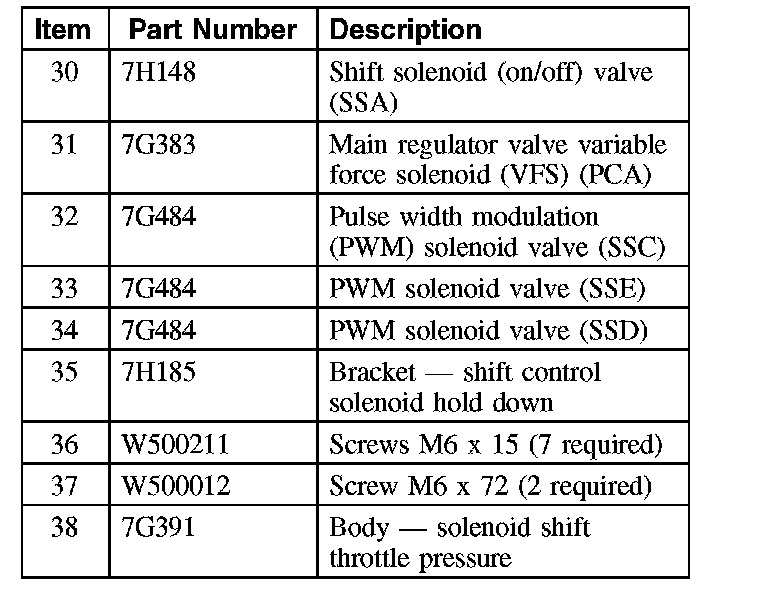

Main Control Valve Body (Part 3):
