Accessory Drive - Exploded View

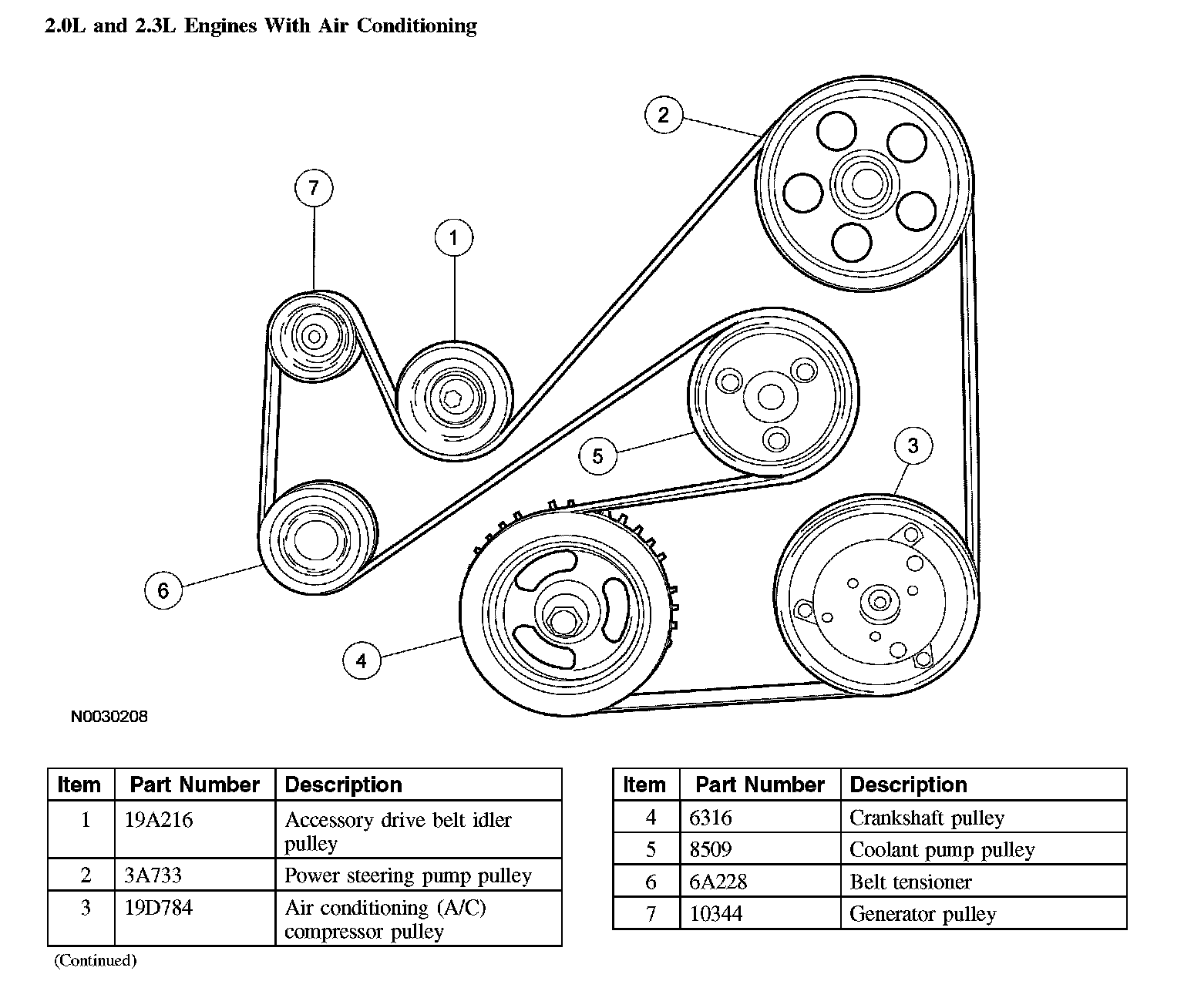

Accessory Drive2.0L and 2.3L Engines With Air Conditioning:

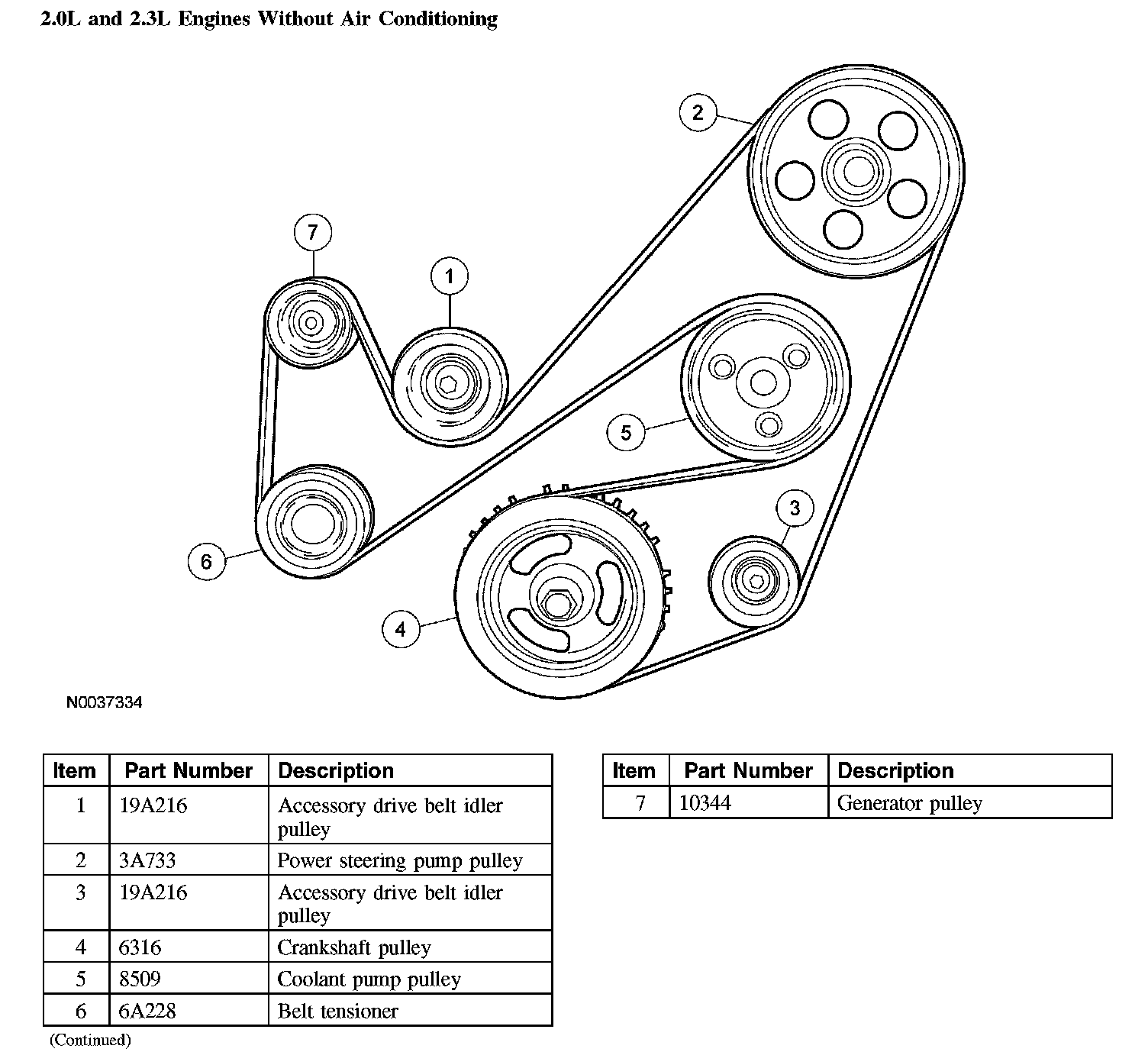

2.0L and 2.3L Engines Without Air Conditioning:
Belt Tensioner
Automatic tensioners are calibrated to provide the correct amount of tension to the belt for a given accessory drive system. Unless a spring or damping band within the tensioner assembly breaks or some other mechanical part of the tensioner fails, there is no need to check the tensioner for correct tension.
