Wiper and Washer Systems

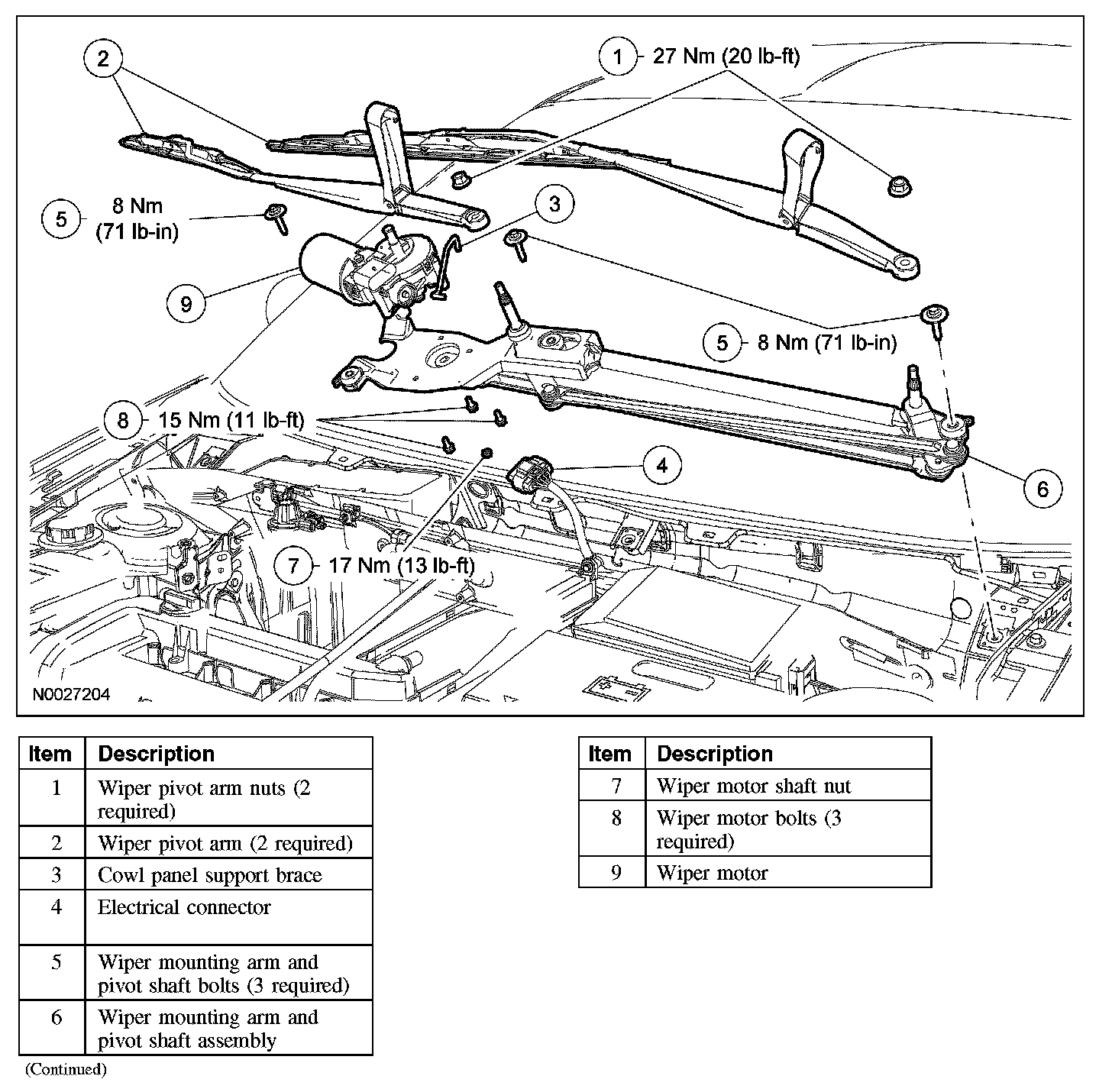

WIPER AND WASHER SYSTEM - EXPLODED VIEW







Removal and Installation
1. For additional information, refer to the procedures.
