Climate Control Assembly

CLIMATE CONTROL ASSEMBLY







Removal and Installation

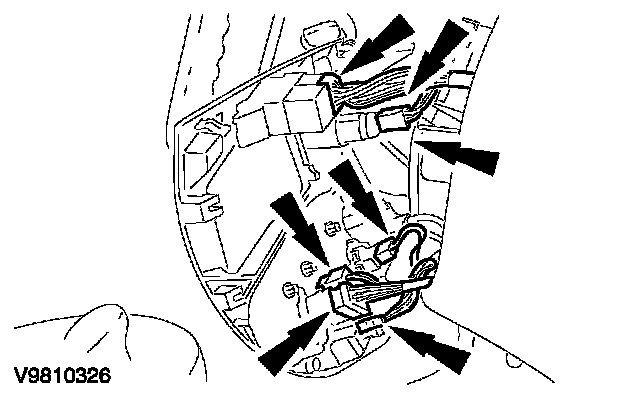

1. Pull the instrument panel console bezel forward and disconnect the electrical connectors.

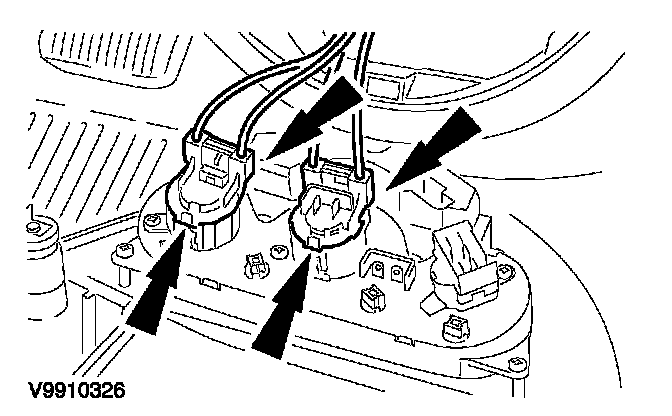

2. Detach the temperature and air distribution blend door bowden cables from the climate control assembly.

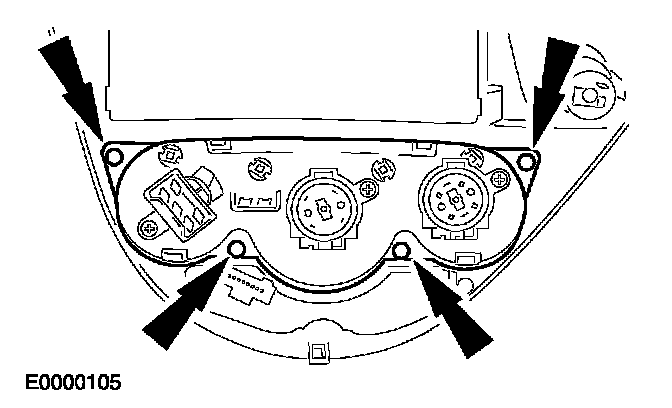

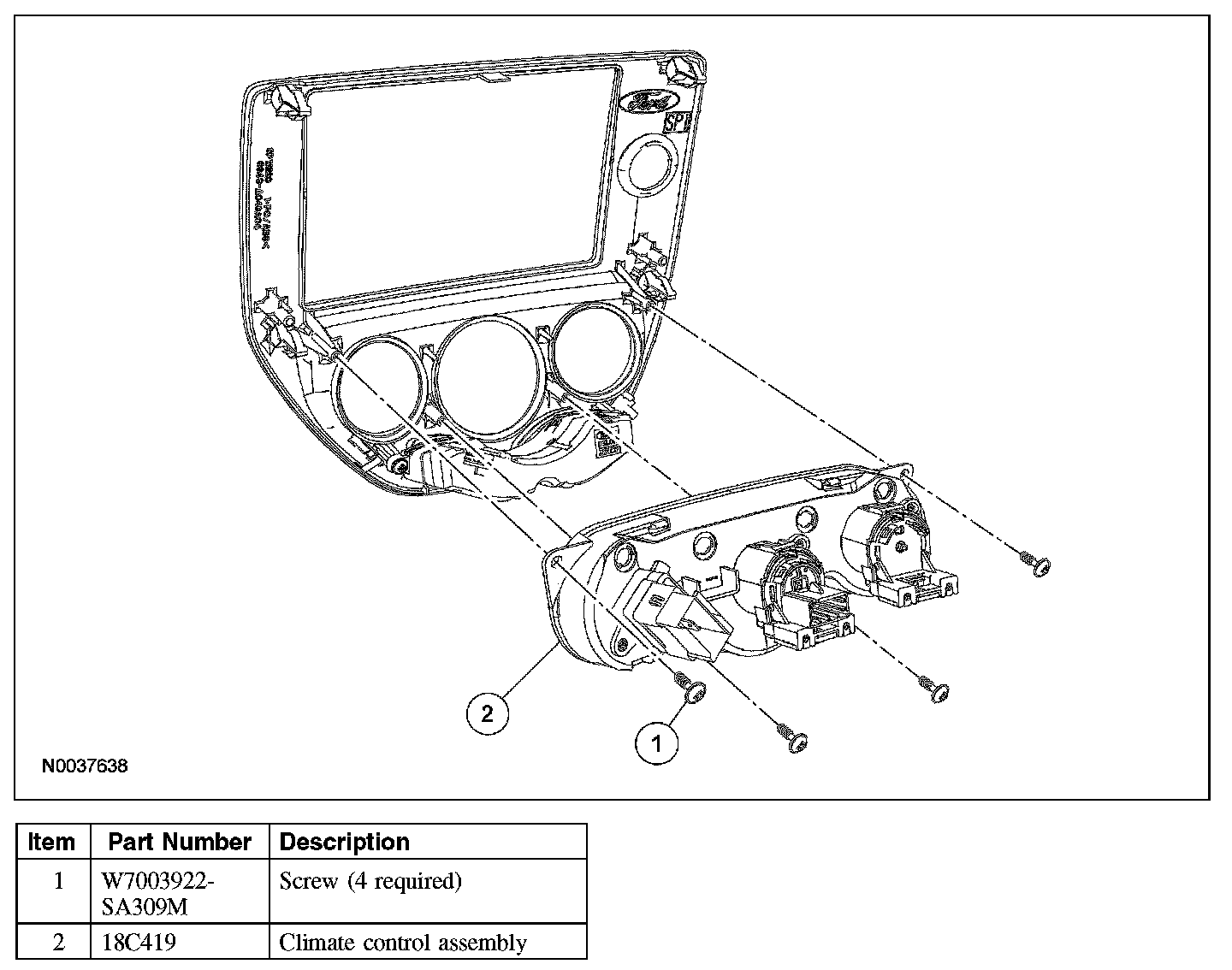

3. Remove the 4 screws and the climate control assembly.
4. To install, reverse the removal procedure.
