Function Selector Switch
FUNCTION SELECTOR SWITCHRemoval and Installation

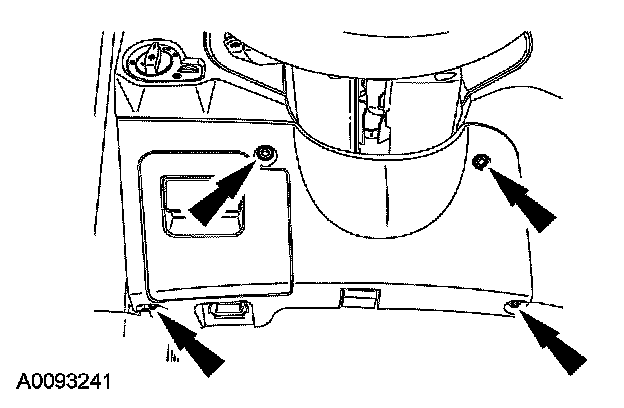

1. Remove the 4 bolts and position aside the lower steering column cover.
2. Remove the function selector knob.

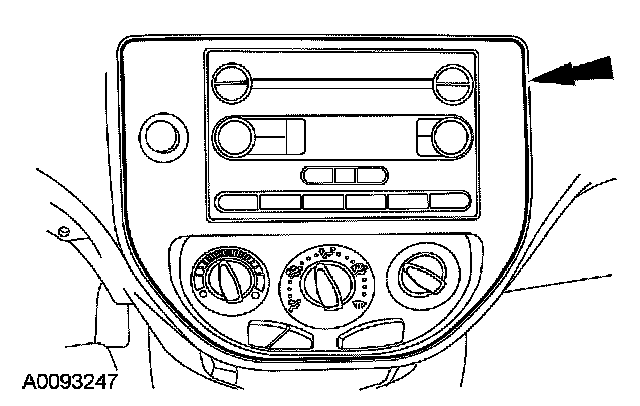

3. Remove the center instrument panel finish panel.
- Disconnect the cigar lighter electrical connector.

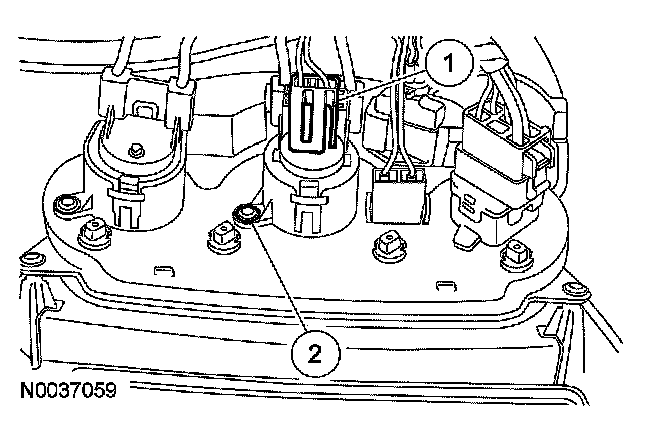

4. Detach the function selector switch.
1. Disconnect the electrical connector.
2. Remove the screw and detach the function selector switch.

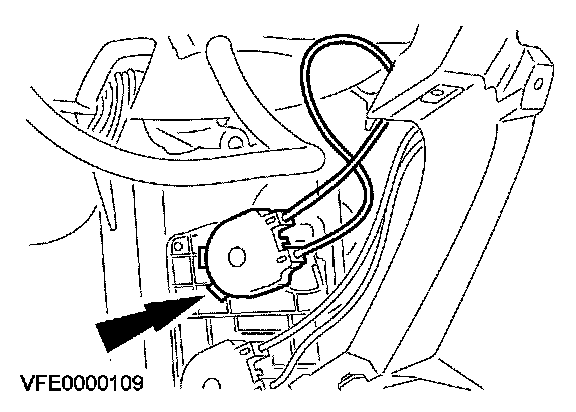

5. Detach the function selector cable and remove the function selector switch/cable assembly.
6. To install, reverse the removal procedure.
