Splices Location Index

PLEASE NOTE: If a link on the Splices Location Index to a View is not provided, that means that the Splices and/or View in question does NOT apply to the vehicle model selected.

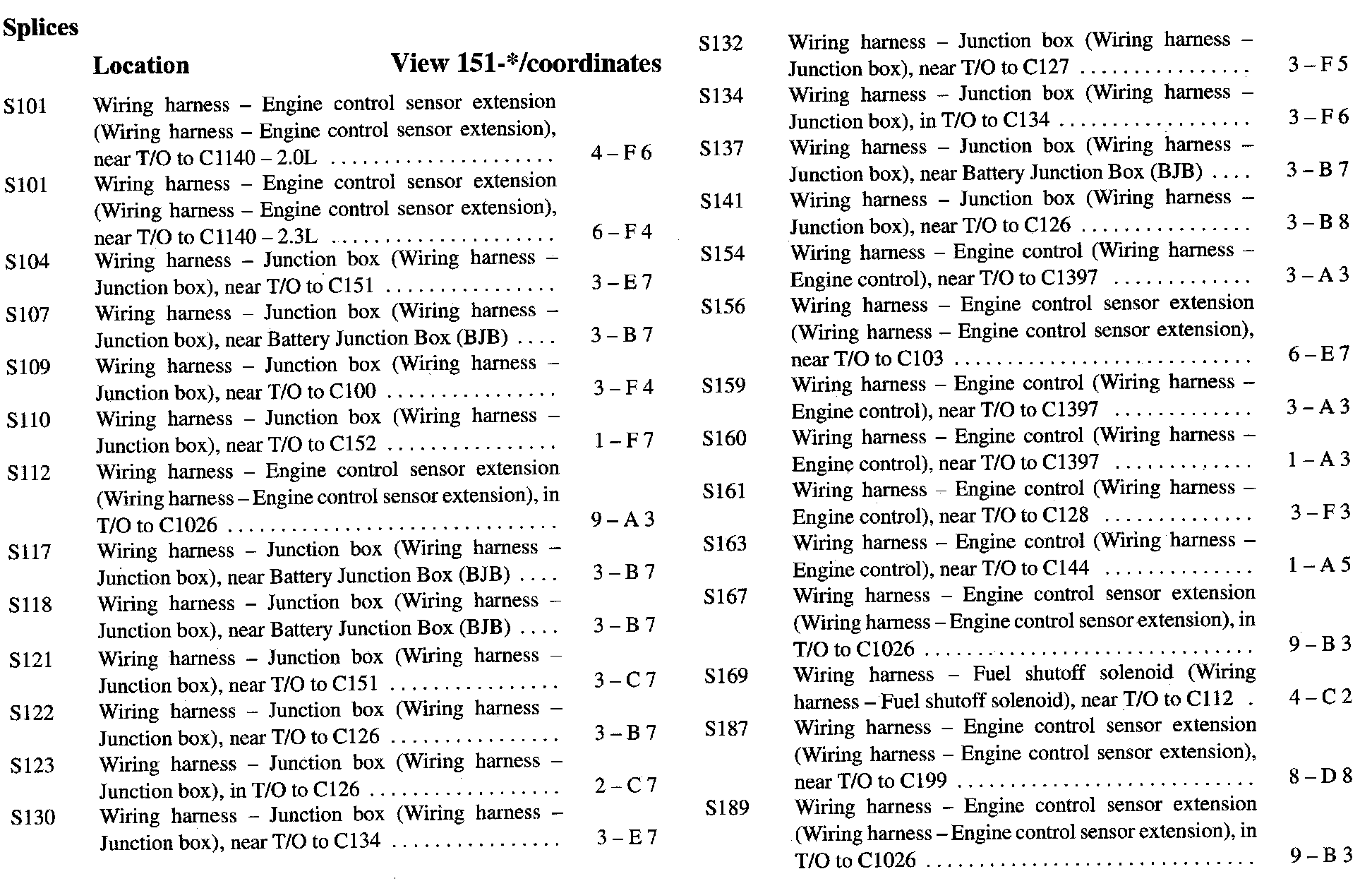

S101-S189:

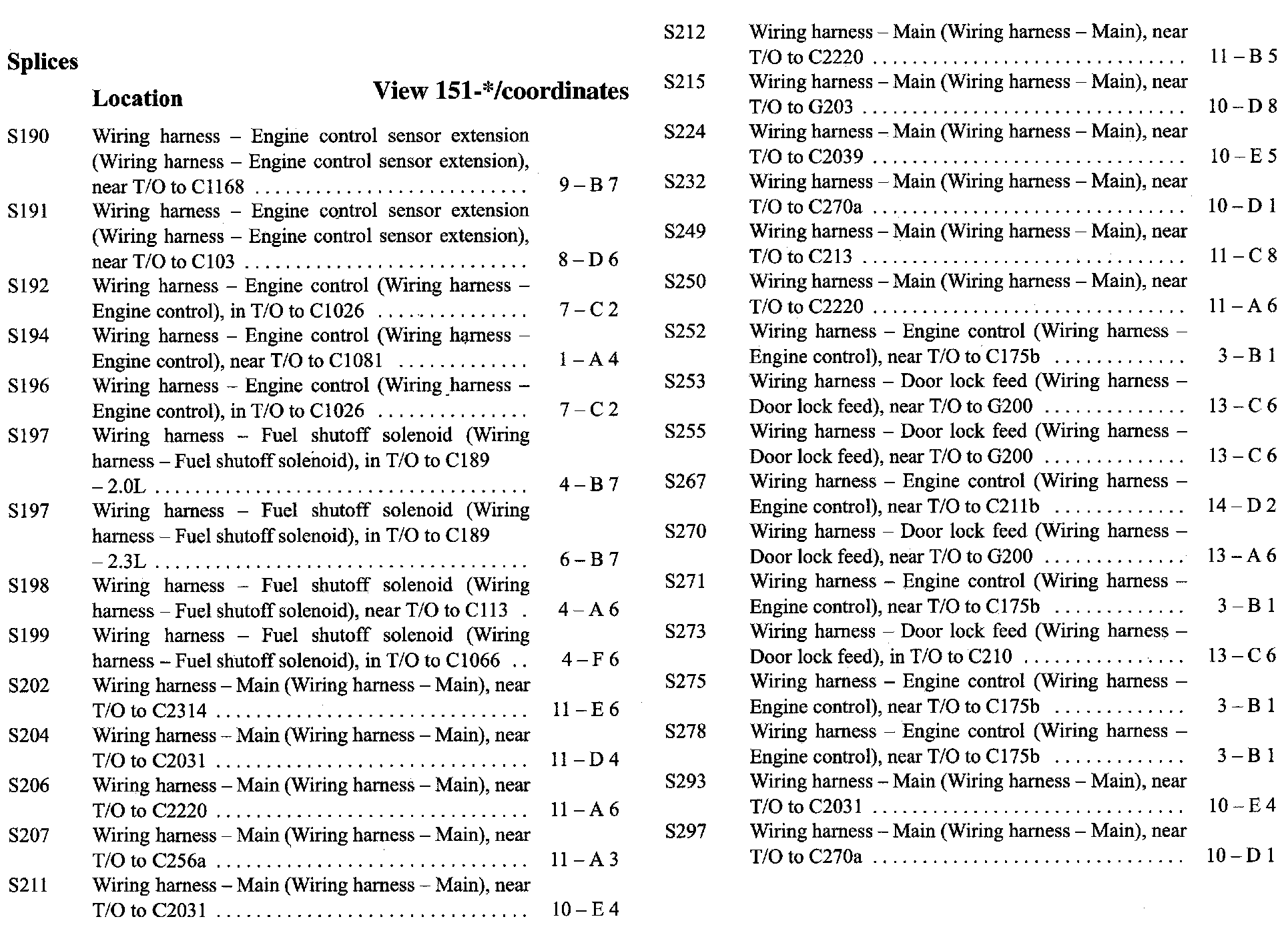

S190-S297:






S298-S500:

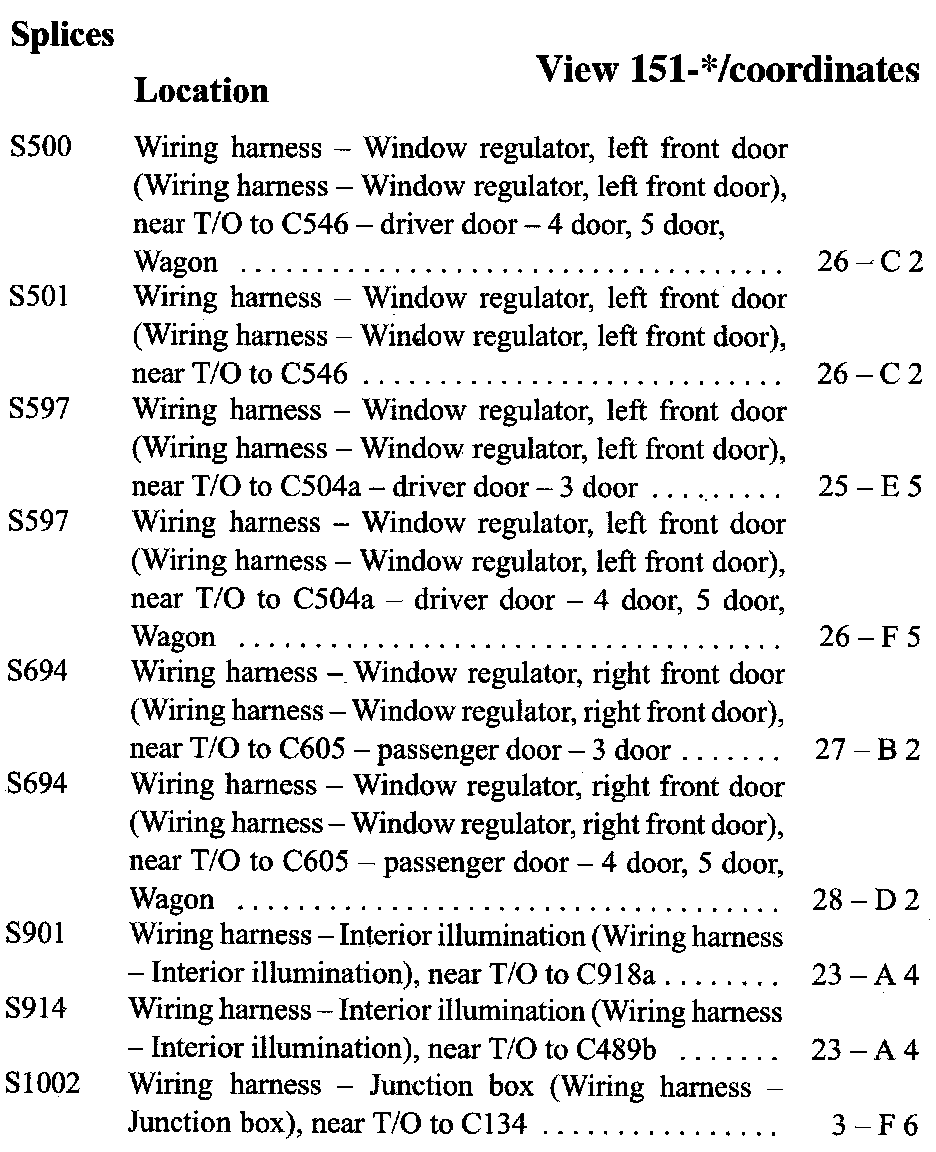

S500-S1002:
