Camshaft Position Sensor: Service and Repair

CAMSHAFT POSITION (CMP) SENSOR

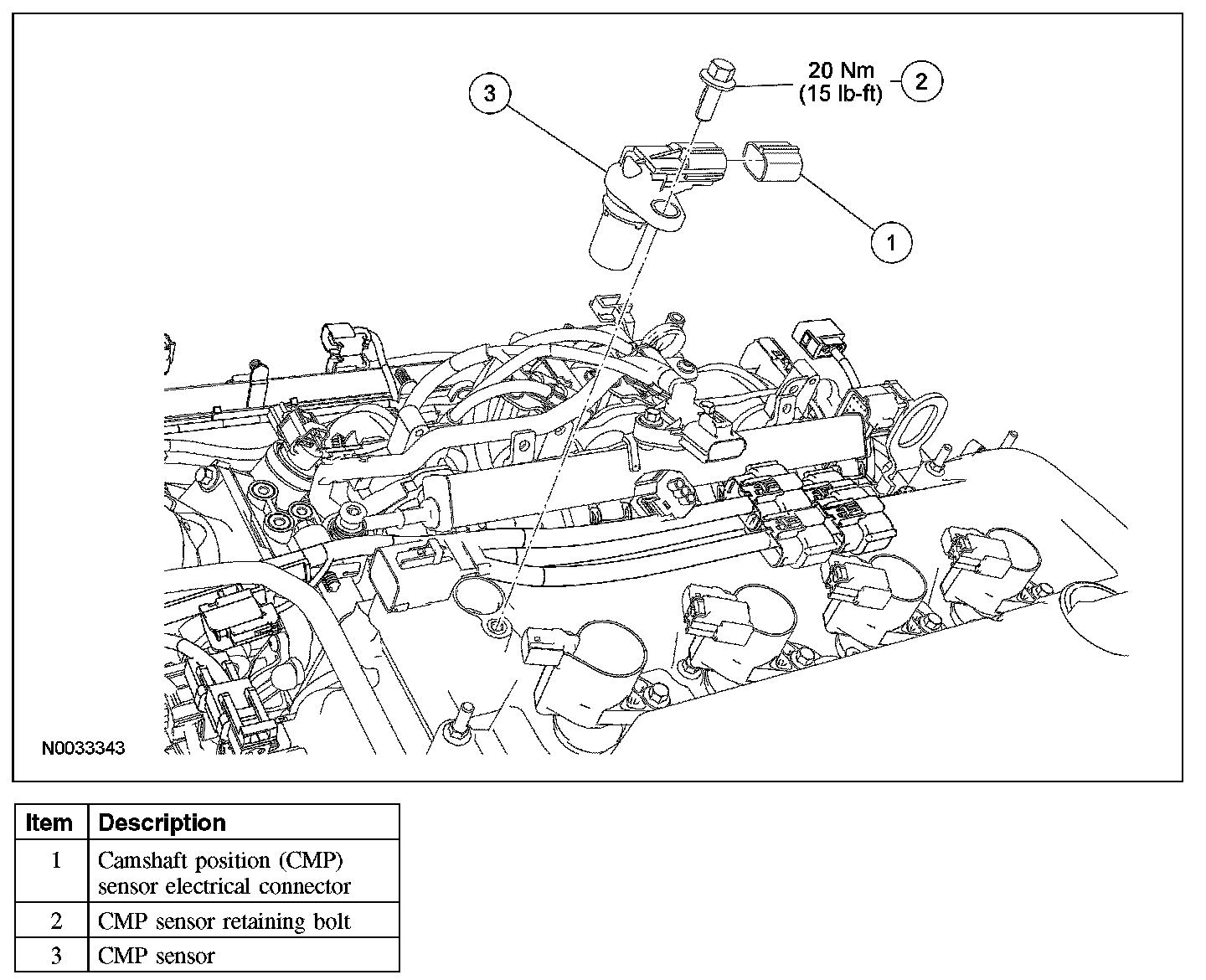

Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the camshaft position (CMP) sensor electrical connector.
3. Remove the bolt and the CMP sensor.
- To install, tighten to 20 Nm (15 lb-ft).

4. NOTE: Lubricate the O-ring with clean engine oil.

To install, reverse the removal procedure.
