Compression Check

AllData Editors Note - Ford does not provide a cranking pressure specification, only an acceptable range.

Compression Test - Test Results
The indicated compression pressures are considered within specification if the lowest reading cylinder is at least 75 percent of the highest reading. For additional information, refer to the Compression Pressure Limit Chart.

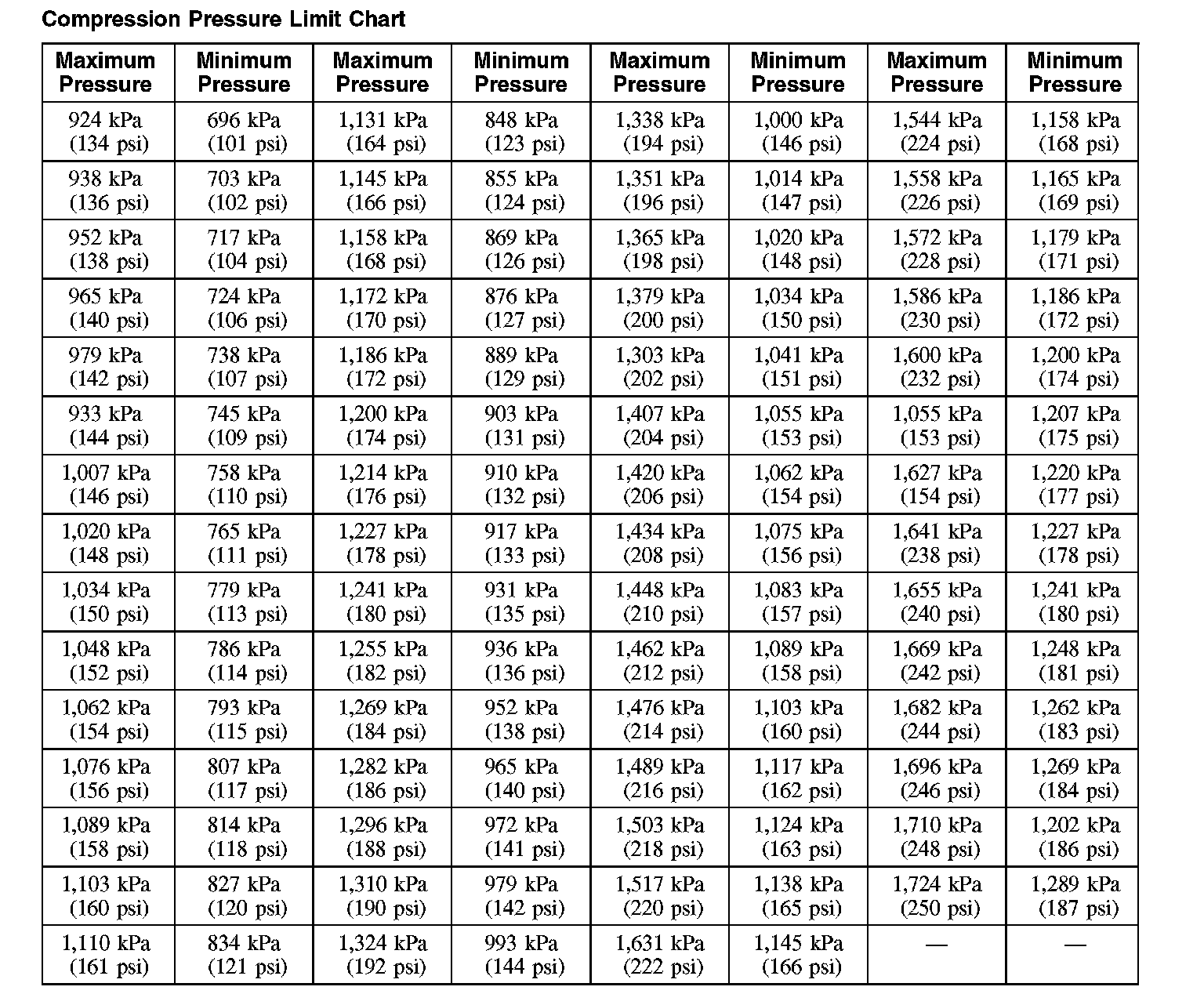

Compression Pressure Limit Chart:
