Torque Specifications

Crankshaft pulley bolt

CAUTION: The crankshaft must remain in the TDC position during installation of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the special tool and the bolt should be installed using hand tools only.

CAUTION: Do not reuse the crankshaft pulley bolt.

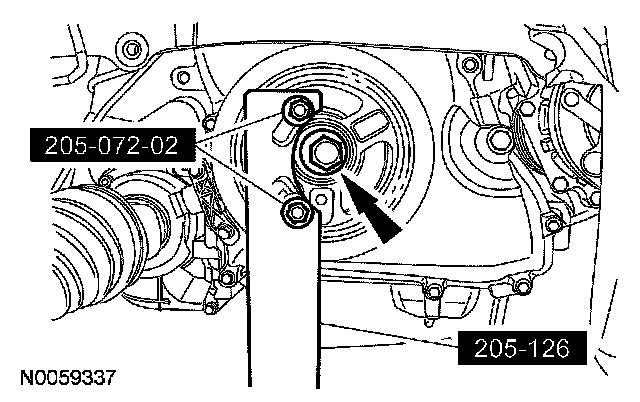

Install a new crankshaft pulley bolt. Using the special tools to hold the crankshaft pulley in place, tighten the crankshaft pulley bolt in 2 stages:
Stage 1: Tighten to 100 Nm (74 ft. lbs.)
Stage 2: Tighten an additional 90° (1/4 turn)
