Oil Pan, Engine

Oil Pan
Position the oil pan onto the engine and install the oil pan bolts finger-tight.

CAUTION: The engine front cover-to-oil pan bolts must be tighten first to align the front surface of the oil pan flush with the front surface of the engine block.

Install the 4 engine front cover-to-oil pan bolts.
Tighten to 10 Nm (89 inch lbs.)

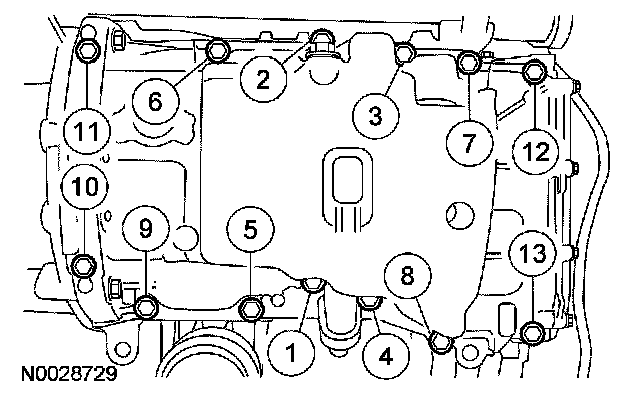

Tighten the oil pan bolts in the sequence shown.
Tighten to 25 Nm (18 ft. lbs.)
